Features:-
>Premium Dual DAC Chipset featuring 2*ES9038Q2M DAC chips.
>High-Performance XMOS XU208 USB Signal Receiver.
>Qualcomm CSR8675 Bluetooth Chip.
>Hi-Res Bluetooth V5.0 Connectivity.
>Support Hi-res Wireless codecs such as LDAC, aptX HD, aptX LL, and more.
>Two-level Gain switch (+6dB/+15dB).

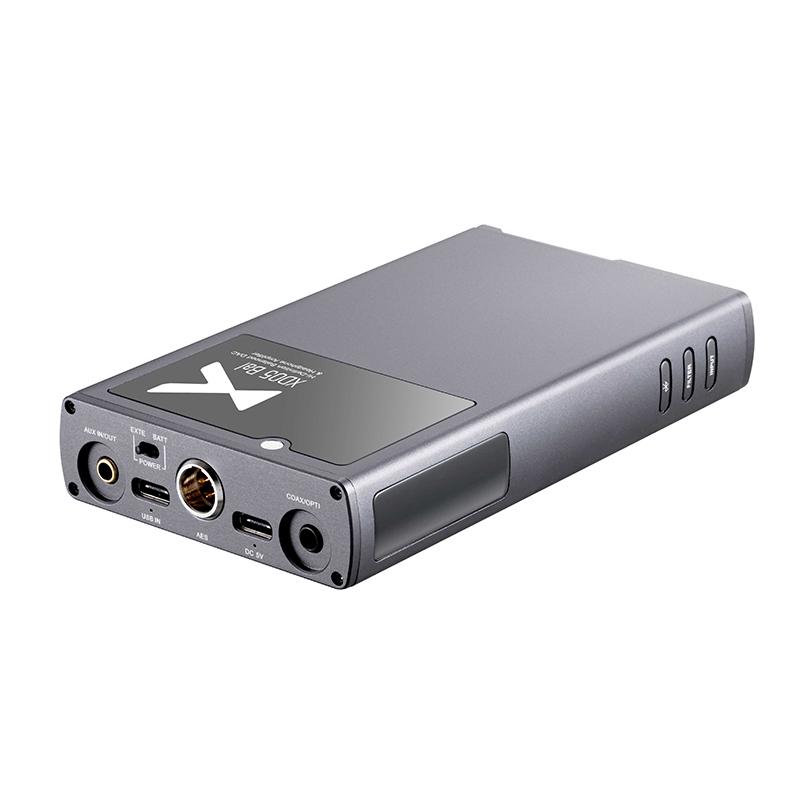

>AES/Co-axial/Optical input options.
>USB Type-C input support.
>Aux Input.
>6.35mm Single-ended headphone output.
>4.4mm Balanced headphone output.
Technical Specifications:-
>Battery: 3.8V/5000mAh.
>Battery Life: USB IN: up to 9 hours, SPDIF IN: up to 15 hours, Aux IN: up to 24 hours.
>0.91” OLED Display.
>Supports Android/iOS devices, Windows/MAC systems.
>Frequency Response Range(USB/SPDIF): 20Hz-20kHz.
>Frequency Response Range(AMP): 10Hz-60kHz.
>Sampling Rate Support(USB): PCM up to 32-Bit/768kHz, DSD up to DSD512 natively.
>Sampling Rate Support(AES/Optical/Coaxial): PCM up to 24-Bit/192kHz, DSD up to DSD64.
>Output Power(6.35mm): up to 1000mW(32Ω).
>THD+N(6.35mm): 0.0015%@1kHz.
>SNR(6.35mm): 115dB.
>Crosstalk(6.35mm): ≥72dB.
>Output Power(4.4mm): up to 1000mW(32Ω).
>THD+N(4.4mm): 0.0008%@1kHz.
>SNR(4.4mm): 117dB.
>Crosstalk(4.4mm): ≥100dB.
>Output Level(Aux): 2.0Vrms.
>Size: 13cmx7.5cmx2.2cm.
>Weight: 0.29Kg.
Powerful Dual DAC Chipset:-
xDuoo has equipped the XD-05 Balanced with a premium Dual DAC chipset featuring 2xES9038Q2M DAC chips. It provides outstanding hi-res audio signal decoding with super-clean background and ultra-low distortion. The DAC chip is paired with a premium XMOS XU208 USB signal receiver chip providing hi-res signal decoding up to 32-Bit/768kHz and DSD512 natively.
Seamless Wireless Connectivity:-
Featuring the flagship CSR8675 Bluetooth signal chip from Qualcomm, the xDuoo XD-05 Balanced provides a seamless wireless Bluetooth V5.0 connectivity with hi-res codecs support such as LDAC, AptX HD, AptX LL, AptX, and many more.
Powerful Balanced Output:-
xDuoo XD05 Bal as the name suggests features a fully balanced 4.4mm headphone output port. The device is equipped with a premium OP+BUF amplifier circuit providing a whooping 1000mW power at 32Ω of load. This much power is more than enough to power your power-hungry headphones and makes them shine with all their glory. With the balanced headphone output, the S/N and dynamics are greatly improved. Along with this balanced headphone out port, the XD-05 Bal also features a single-ended 6.35mm headphone output.

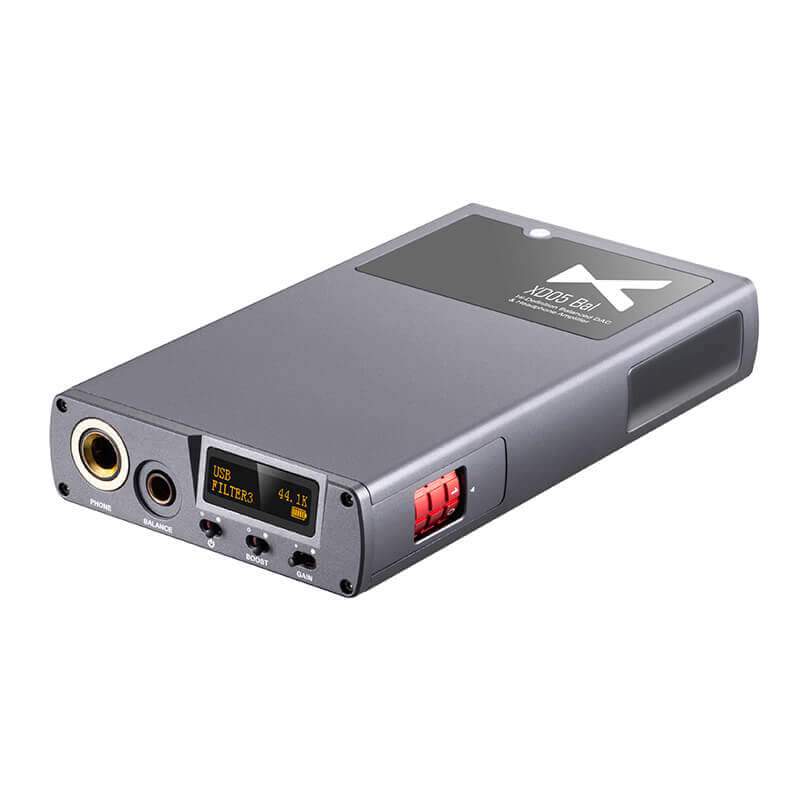

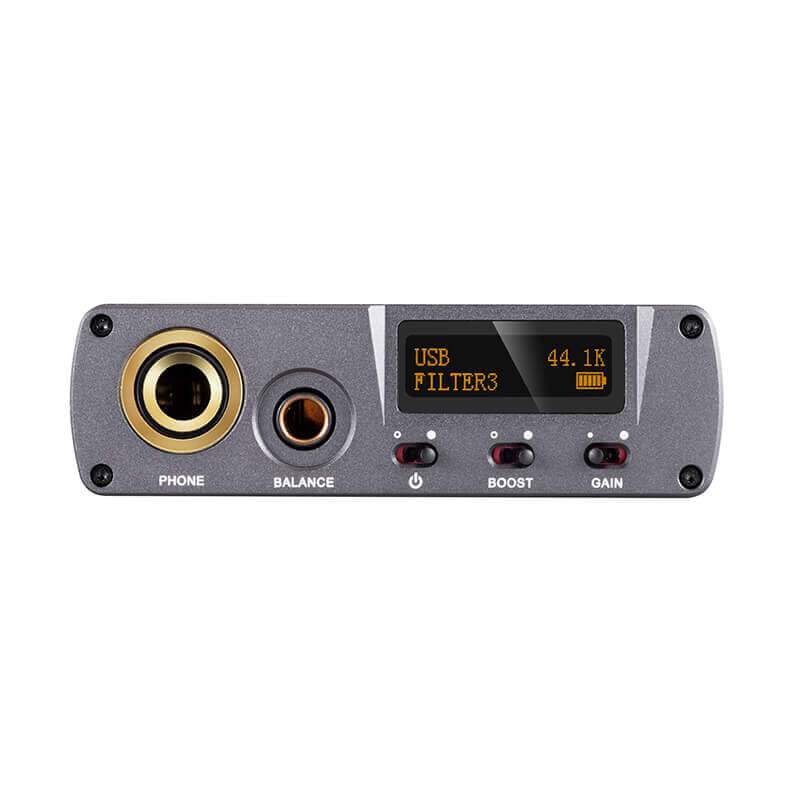

OLED Display, Gain Switch, & Other Features:-
The XD05 Bal houses plenty of more features such as OLED display, Digital Decoding Filters, Boost switch, two-way gain(+6/+15dB), premium build quality, and much more.
