Features:-
* Classic tube 12AU7.
* Top level XMOS 8-core chip (XU208).
* High-Performance AKM DAC chip AK4493EQ.
* USB/coaxial digital interface.
* Class-AÂ Transistor expansion.
* USB OTG.
* Dual clock system.
* Combination of tube and transistor.
* Japanese ELNA SILMC capacitors.
* Shell made from aluminum.
* Magnetic tube guardrail.
* Power supply: AC 100–240V.
* Supported OS: Windows (requires drivers), Mac.
* Sample rate: SB input.
* PCM: 16–32 bit/44.1–384 kHz.
* DSD: DSD64–DSD256 (1bit/2.8M–11.2M).
* DXD: 24–32 bit/352.8–384 kHz.
* Output power: 6.35mm: 2,000 mW (at 32 ohms); XLR: 2,000 mW (at 32 ohms).
* Frequency response: 10 Hz–100 kHz(+/- 1 dB).
* Gain: +18 dB.
* Distortion: ≤ 0.01% (1 kHz, 32-ohm load).
* Suitable headphone impedance: 8–600 ohms.
* Size: 9.1 x 4.7 x 4.1 in (23 x 12 x 10.5 cm).
* Weight: 3.3 lbs (1.5 kg).

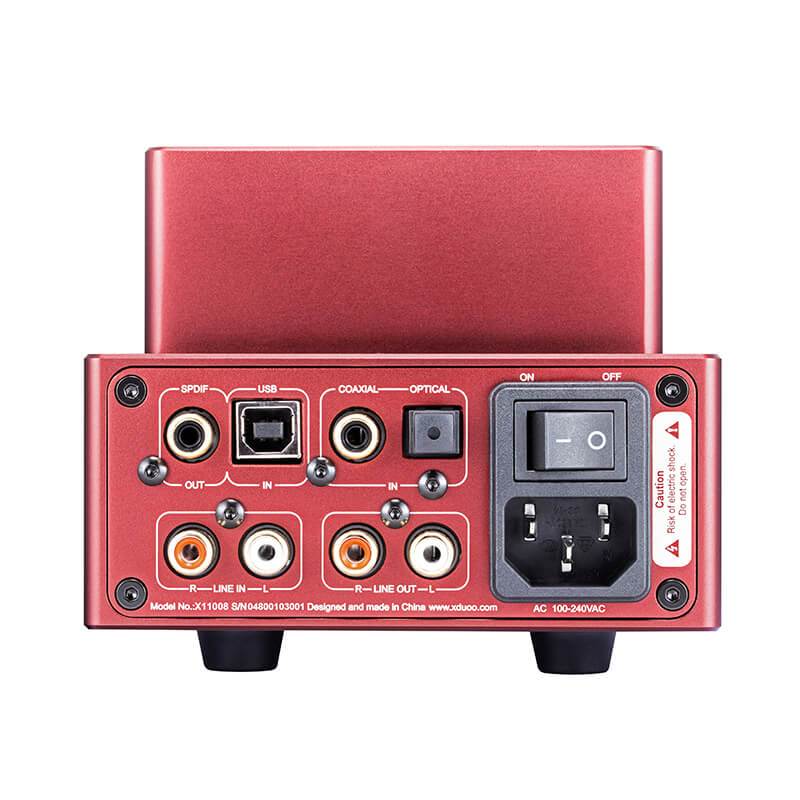

* USB input.
* Two sets of AUX inputs.
* SPDIF output.
* AUX output.

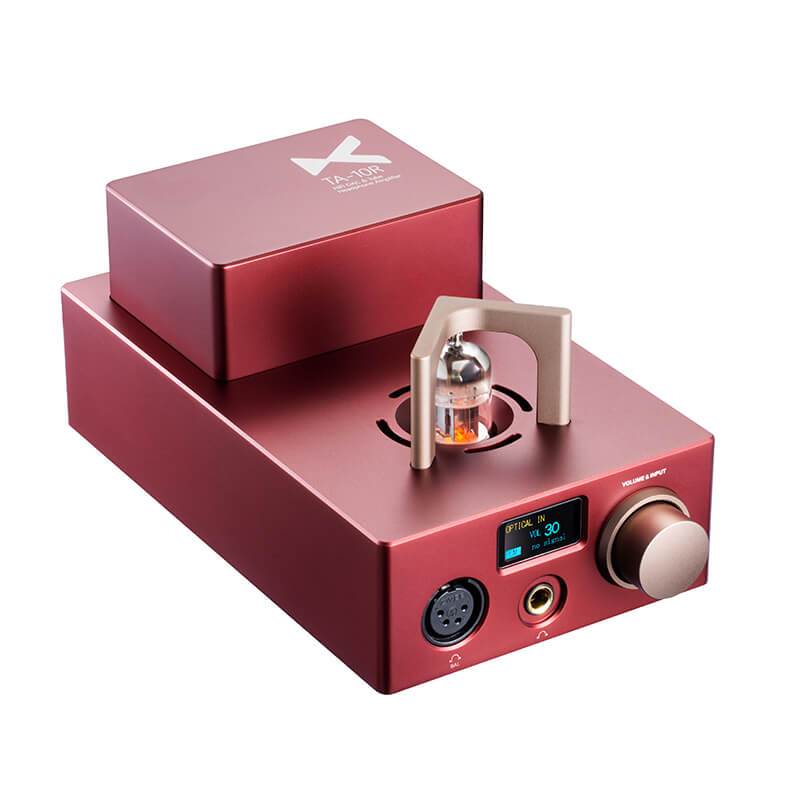

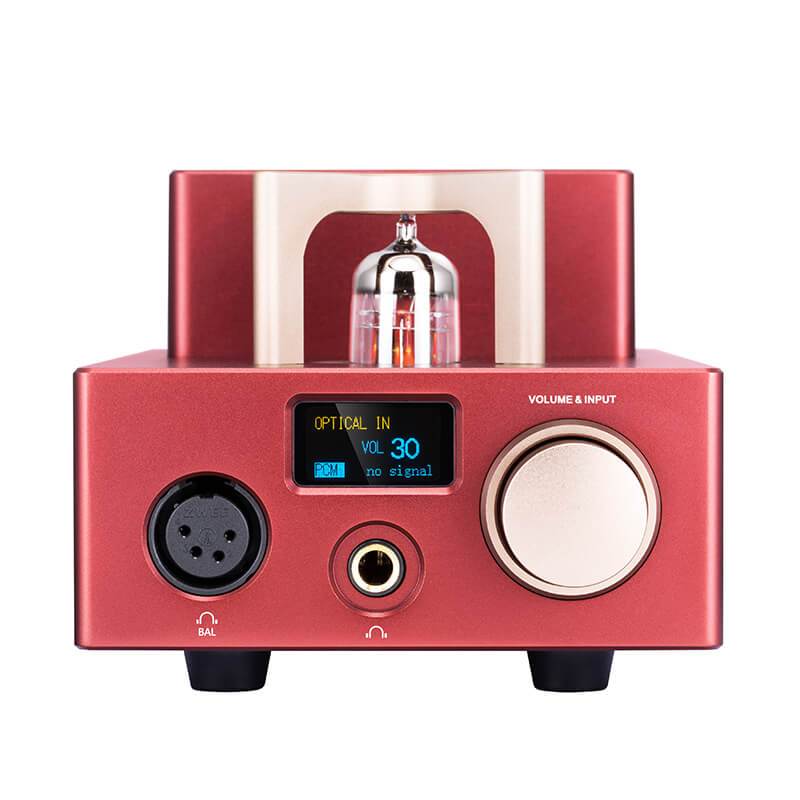

xDuoo has upgraded its highly appreciated TA-10 tube amp with the very latest, xDuoo TA-10R. They have equipped the latest desktop DAC/AMP with the AK4493 DAC chip. The device features two headphone output ports, one 6.35mm single-ended and another 4-pin XLR balanced port. Along with USB signal input, the latest TA-10R also features Coaxial and Optical signal inputs.
Upgraded To Improve:-
xDuoo has carefully upgraded the main audio chipset in the TA-10R to provide an improved sound quality output over the previous model. They have upgraded the DAC chip to AK4493 unlike the AK4490 in the previous model. The DAC chip is paired with premium components like a HiFi CPLD(Complex Programmable Logic Device) chip, Dual active crystal oscillators, to produce a rich audio experience for its users. The TA-10R utilizes ECC82/12AU7 vacuum tube to process and refine the audio signal.
Class A Amplification:-
xDuoo TA-10R features a Class A amplification circuit. Class A offers the best sound quality output with ultra-low distortion. In Class A amplification the entire current is conducted through the entire period of a signal that results in better amplification.
High-Quality USB Signal Decoding:-
The xDuoo TA-10R can be connected with Windows/Mac PC, Android & iOS Smartphones via the USB input option. With the USB interface, the TA-10R utilizes a powerful XMOS XU208 8-core processor chip from XMOS. The TA-10R USB input supports PCM decoding up to 32-Bit/384kH and DSD up to DSD256 natively. It also features Coaxial and Optical inputs and supports PCM up to 24-Bit/192kHz via these connections.
Driver Your Demanding Headphones Easily:-
With a powerful output power rating of about 2000mW through both of its headphone output ports, the xDuoo TA-10R can power the most demanding of your headphones with ease. xDuoo suggests up to 600 Ohm headphone pairing with the device.
Â
Â
