Features:-
>Premium Dual DAC chipset from ESS Sabre Technologies.
>Supports High-Resolution audio signal decoding.
>PCM up to 32-Bit/384kHz.
>DSD up to native DSD256.
>XLR Balanced line-out.
>RCA Single-Ended output.
>SPDIF(Coaxial/Optical) Digital In.
>Dual USB modes(1.0/2.0).
>Dual high-precision crystal oscillator.
>High-quality Japanese NICHICON capacitors.
>Independent [pwer si[[;ly/
>Bright OLED display.
>Sand-blasted textured aluminum alloy panel.
Technical Specs:-
>Supported Inputs: USB, Coaxial, Optical.
>Sampling Rate(USB): 32-Bit/384kHz, DSD256 natively.
>Sampling Rate(SPDIF): 24-Bit/192kHz.
>Output Level: 2V(Aux), 4V(XLR).
>THD+N: 0.0007%(Aux), 0.0005%(XLR).
>SNR: 120dB(Aux), 124dB(XLR).
>Crosstalk: 109dB.
>Weight: 0.35Kg.
>Dimensions: 12×7.8×4.0cm.
—SpecificationsSplit—

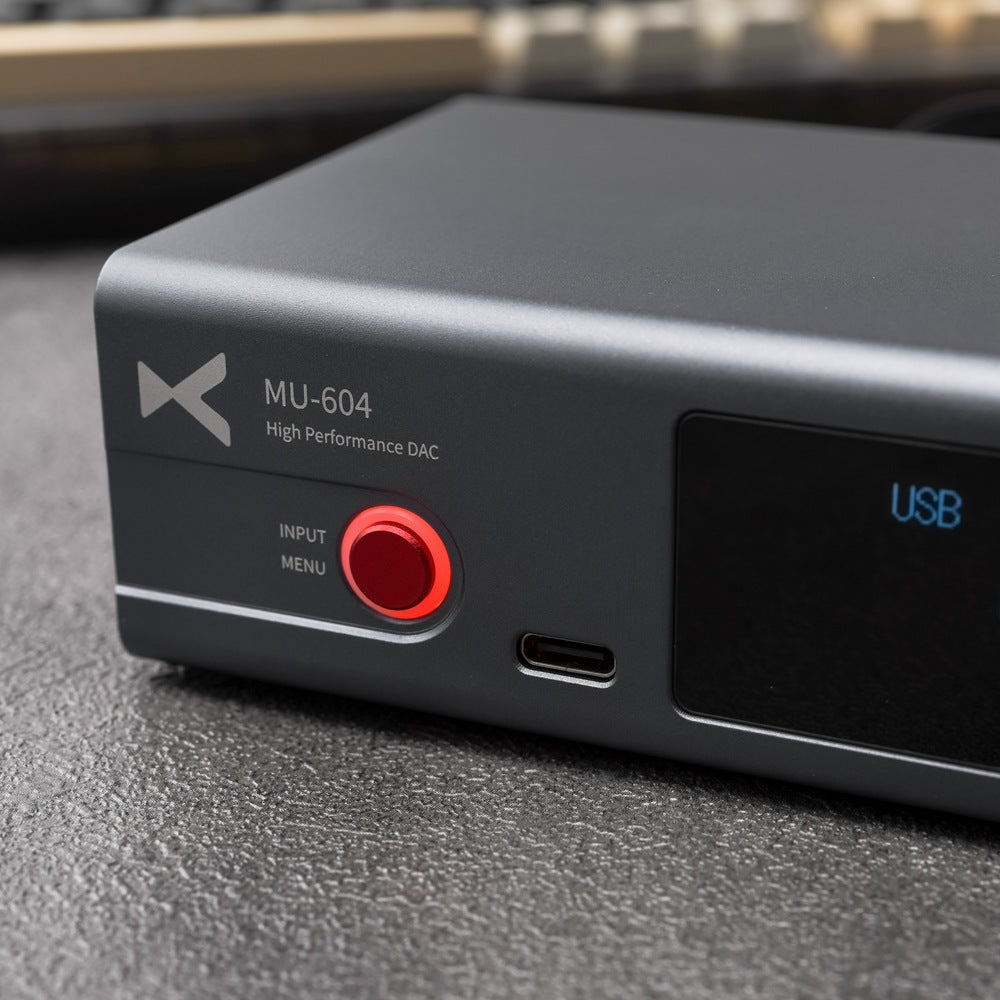

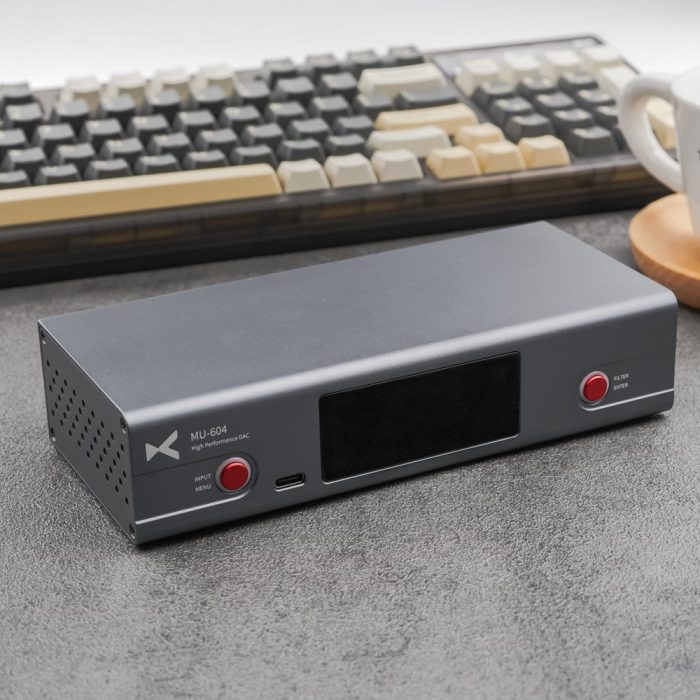

xDuoo is a high-performance desktop USB DAC designed to bring high-end digital audio decoding to your desktop chains. It supports USB, Coaxial, and Optical digital inputs and provides the users with high-quality output through the standard RCA and balanced XLR ports. xDuoo MU-604 can be connected to any desktop chain, it pairs well with power amplifiers and headphone amplifiers. It houses a premium Dual DAC Chipset consisting of two ES9018K2M DAC chips from ESS Sabre Technologies. xDuoo MU-604 brings life to your desktop chain with its unmatched performance in decoding high-resolution audio signals!!!
Premium Dual DAC Arrangement:-
xDuoo has equipped the latest MU-604 with a premium Dual DAC Chipset from ESS Sabre Technologies. The device houses two ES9018K2M high-performance DAC chips. They are 32-Bit DACs that allow the MU-604 to decode high-resolution PCM and DSD signals with great precision and clarity.
Dual High-End Crystal Oscillators:-
In order to get the best out of the MU-604, xDuoo has designed the device with two high-quality active crystal oscillators as the clock sources. They work at 44.1K and 48K and their different sampling rates respectively. They enable jitter-free high-resolution performance with the MU-604.
8-Core XMOS USB Receiver:-
xDuoo MU-604 comes with an XMOS XU208 USB receiver chip. It works in asynchronous transmission mode and supports WASAPI, ASIO, and KS core stream modes. XMOS XU208 supports high-resolution PCM(32-Bit/384kHz) and native DSD256 signals.
Dual USB Modes:-
xDuoo MU-604 supports dual USB modes, USB 1.0 and USB2.0. The USB 1.0 mode is compatible with older-gen PC and game consoles like Nintendo Switch and PlayStation. The USB 2.0 mode is made for the latest-generation PC. It also benefits with xDuoo USB driver enabling accurate high-res decoding on the system.
Supports Multiple Input/Outputs:-

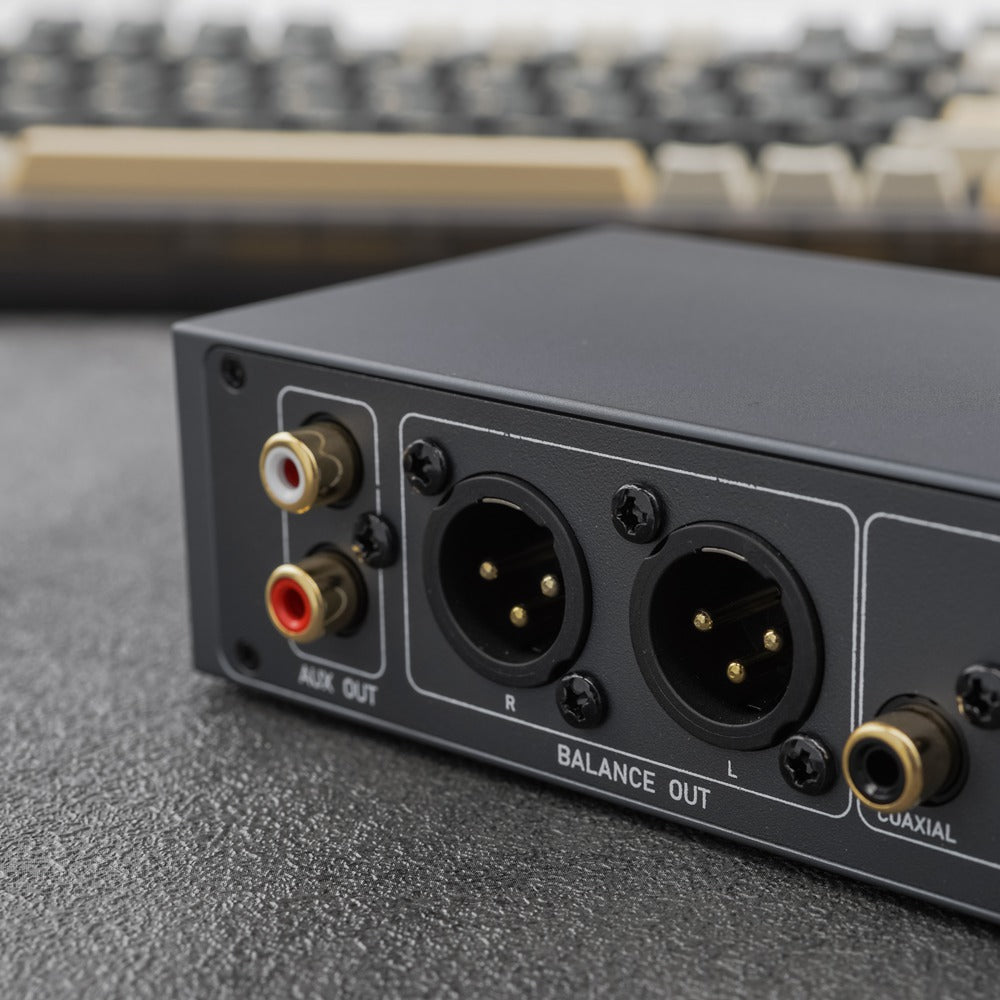

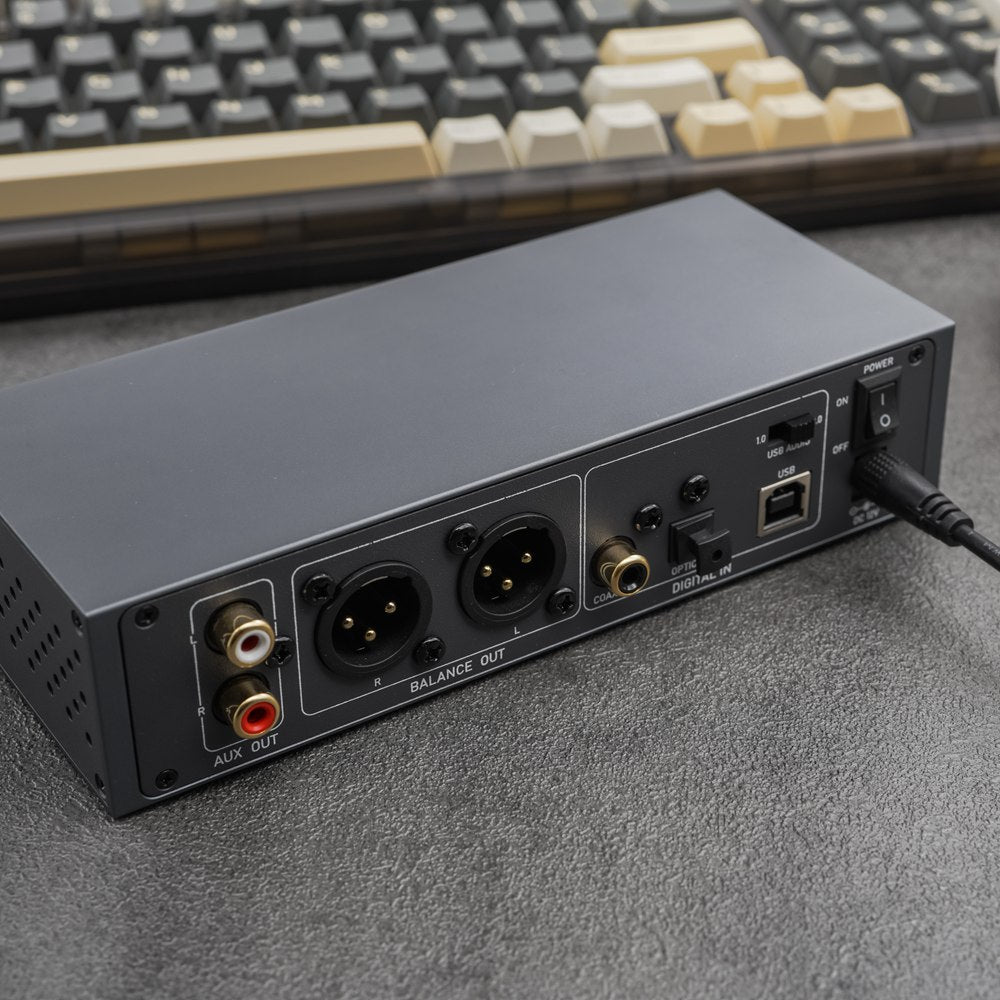

xDuoo MU-604 supports different inputs and outputs. It takes digital input via USB, Coaxial, and Optical input ports. For analog output, the MU-604 features single-ended RCA and balanced XLR output ports.
