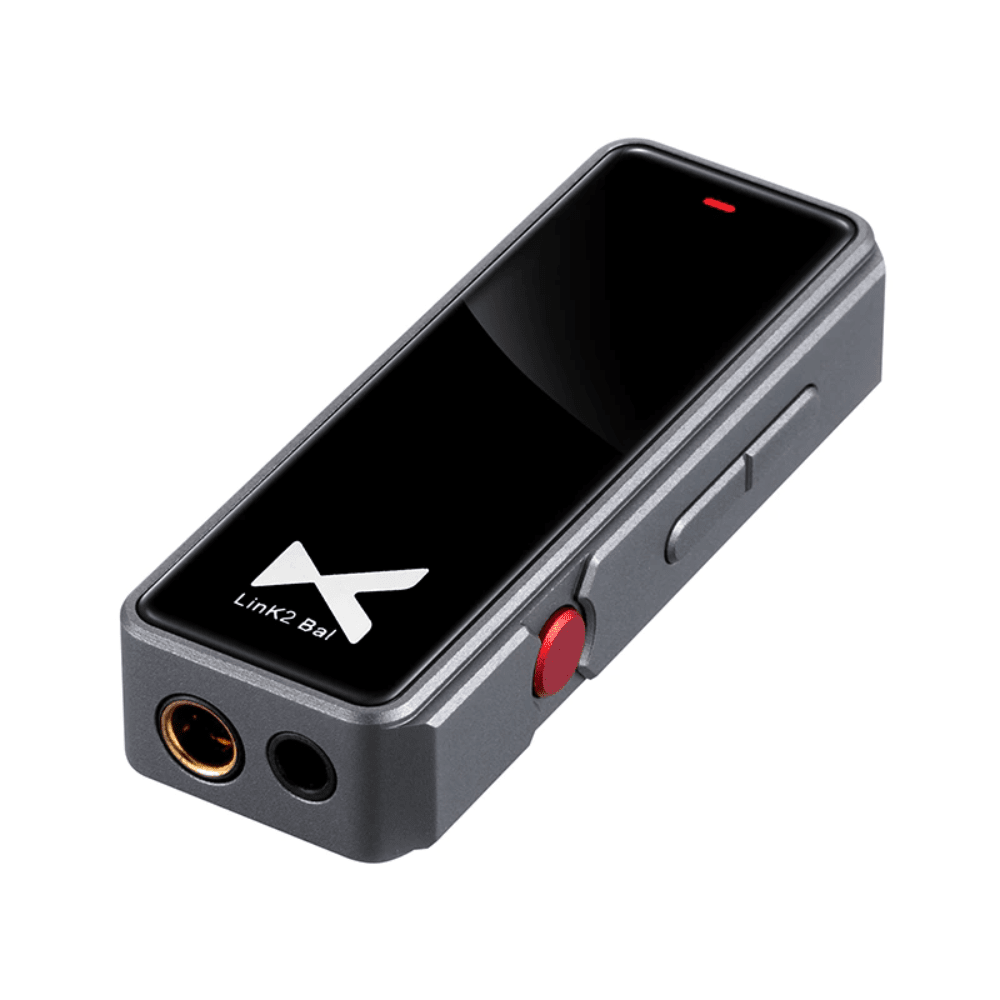

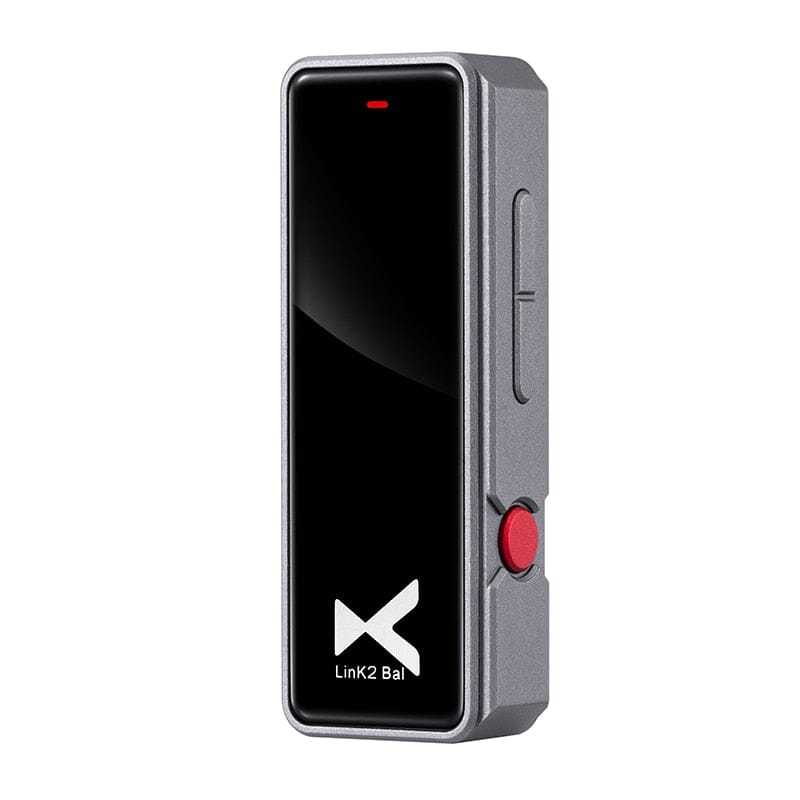

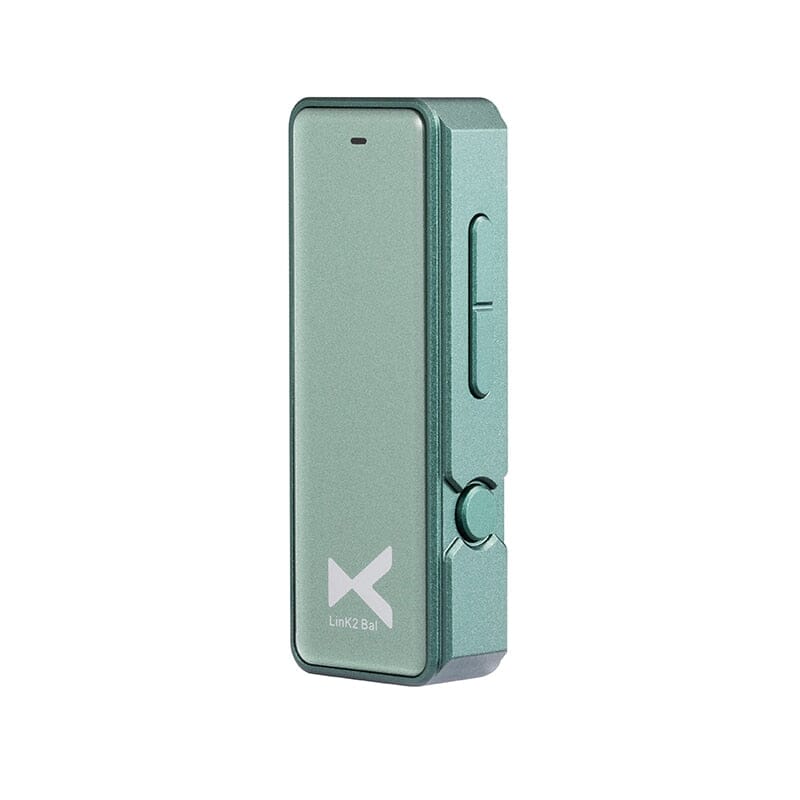

xDuoo Link2 Bal Max Portable USB DAC & Balanced Headphone Amp

Features:-
>Truly Balanced Architecture With Dual DAC Chips.
>Independent Amp Circuit.
>Powerful Output(up to 270mW).
>High-Resolution Sound Performance.
>Dual Headphone Output(4.4mm Balanced+3.5mm Single-Ended).
>Supports high-resolution PCM(32-Bit/384kHz) and Native DSD256 audio signals.
>Clean Output with Low Noise & Low Distortion.
>2.5D Double-Sided Glass.
>CNC Machined Aluminum Alloy Body.
>Detachable Connector Cables.
>Optimised for Power IEMs in the Market.
>Dual USB Modes(UAC 1.0/2.0).
>Compatible with Multiple Platforms(PC, Laptop, Tablets, Smartphones, Nintendo Switch).
>Multi-color LED indicator.
—SpecificationsSplit—
xDuoo LINK 2 Bal Max is a revamped version of the highly-acclaimed Link 2 Bal portable USB DAC/AMP. The new Link 2 Bal Max has cleaner and more powerful output with better SNR and more single-ended power than the previous model. It also has better crosstalk performance. The Link 2 Bal Max adopts a Dual DAC chip arrangement with each channel having its own Cirrus Logics CS43131 DAC chipset. With an independent chipset for each channel, the decoding performance is heavily improved over the previous model. It now has higher resolution and better clarity. Link 2 Bal Max features an exquisite build with 2.5D double-sided glass and CNC machined aluminum alloy chassis. Take your High-Res music anywhere you go with the all-new xDuoo Link 2 Bal Max portable USB DAC/AMP!!
True Balanced Design With Dual DAC Chips:-
xDuoo has featured a truly balanced circuit design on the Link 2 Bal Max with a premium Dual DAC arrangement. The device houses two CS43131 high-performance decoding chips from Cirrus Logics. These are 32-Bit DAC chips that deliver high-quality sound signal decoding with a rich tone and excellent definition.
Improved Output Quality With Improved Parameters:-
The primary upgrade the xDuoo Link 2 Bal Max has over the predecessor model is the improved output signal quality. With optimized audio circuitry, Link 2 Bal Max has got an improved signal-to-noise ratio that enhances the output with a cleaner, darker background. The Link 2 Bal Max also has improved crosstalk performance. xDuoo Link 2 Bal Max achieves an ultra-low distortion of ≤0.001%, a big improvement from the predecessor model.
Power Your IEMs and Headphones Well With Strong Driving Power:-
xDuoo Link 2 Bal Max has got strong output power. Even with the single-ended 3.5mm output it produces 200mW of clean output signal at 32Ω of impedance load. With the balanced 4.4mm output, this gets increased to 270mW at the same impedance load. It packs enough punch to drive most IEMs and some low-power requiring headphones easily.
Not Just Great Sound, Great Looks As Well:-
xDuoo Link 2 Bal Max has got stunning looks, it has a high-precision CNC machined aluminum alloy body with 2.5D glass on the front and backside. The unit has a unibody design with no seams or visible screws. It has some physical keys on both sides.
Crisp High-Resolution Audio Signal Decoding:-
xDuoo Link 2 Bal Max supports decoding for high-resolution audio signals. It supports PCM signals up to 32-bit/384kHz bitrate and native DSD256 audio signals. The Link 2 Bal Max also features a multi-color LED indicator that glows in different colors based on the active signal bitrate.

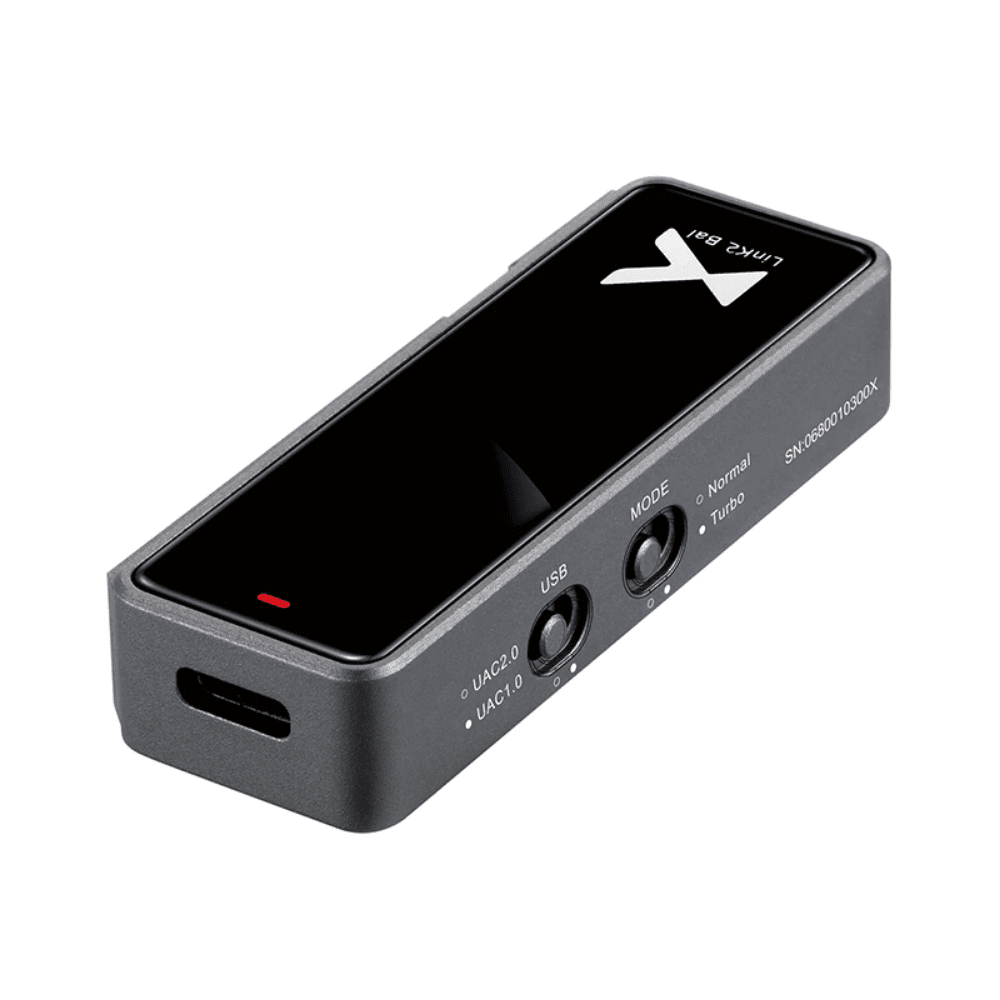

Multi-Device Connectivity With Dual USB Operation Modes:-
xDuoo Link 2 Bal Max supports dual operation modes, UAC1.0 and UAC2.0. The UAC1.0 mode is suitable for low-power devices like Nintendo Switch etc, while UAC2.0 mode is suitable for PC, laptops, and smartphones. The Link 2 Bal Max can be used with a variety of devices including PC, Laptops, Smartphones, tablets, etc.
3.5mm & 4.4mm Dual Headphone Outputs:-
xDuoo Link 2 Bal Max portable USB DAC/AMP houses dual headphone output ports including a 3.5mm single-ended output and another 4.4mm balanced output port. Both ports offer powerful output with the balanced port offering better crosstalk and better SNR ratings.
