TANCHJIM x Effect Audio Force 2DD IEMs

Features:-

>Developed in Collaboration with Effect Audio.

>Dual-Dynamic Driver Setup.

>Dual DMT4 Ultra Dynamic Drivers(10mm+8.2mm).

>Composite Metal-Coated Dome Diaphragms.

>HPFD-Seg Precisión Segmented Crossover Technology.

>Premium Silver-Plated Single-Crystal Copper Cable Co-Engineered with Effect Audio.

>Interchangeable Connectors(3.5mm+4.4mm+Type-C).

>Ergonomic and Comfortable Design.

>Open-Back Design Structure.

>Patented Pressure Relief Nozzle Design.

>High-Performance DSP Functionality with Intuitive Graphical UI(Tanchjim App with Type-C Termination).

>CNC-Machined Metallic Face Covers.

>Comes with T-APB Air-Pressure Balance Ear Tips.

Technical Information:-

>Impedance: 17Ω±10%.

>Sensitivity: 120dB/Vrms.

>Frequency Response Range: 8Hz~48kHz.

>Connector Type: 0.78mm Two-Pin Connectors.

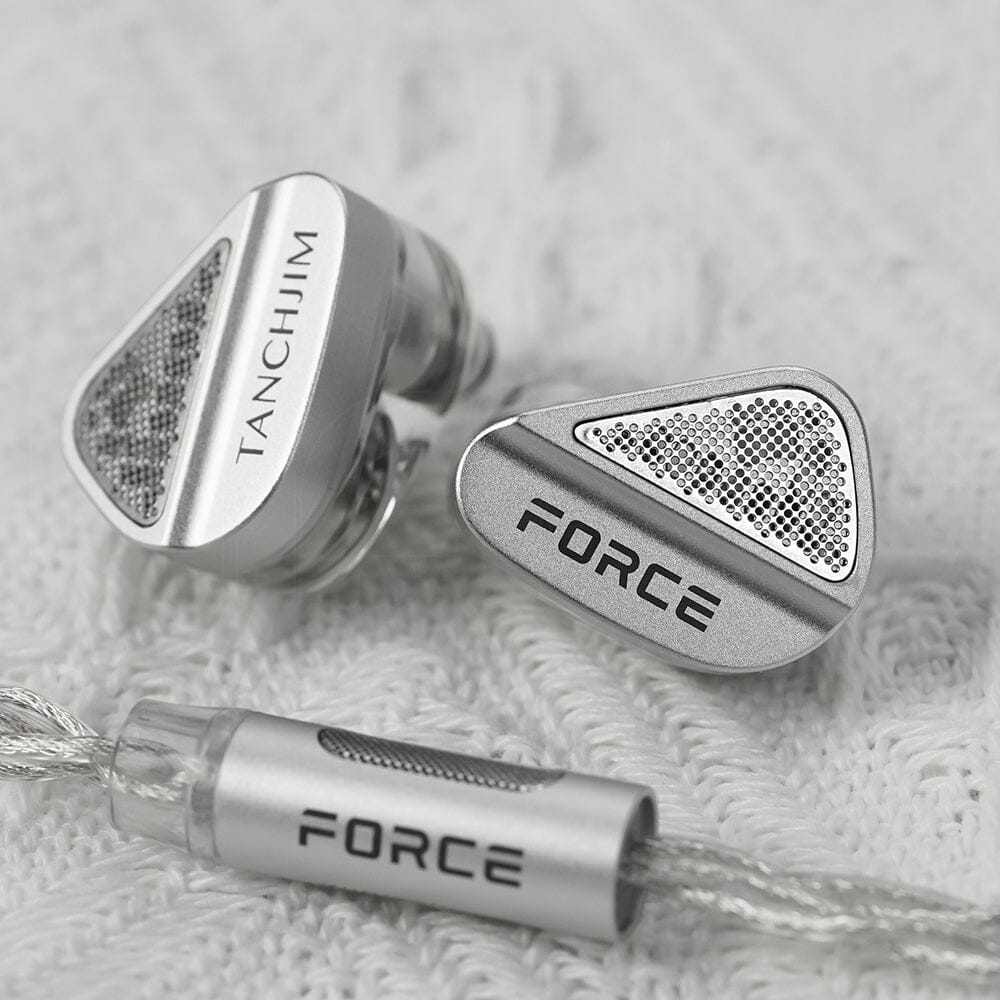

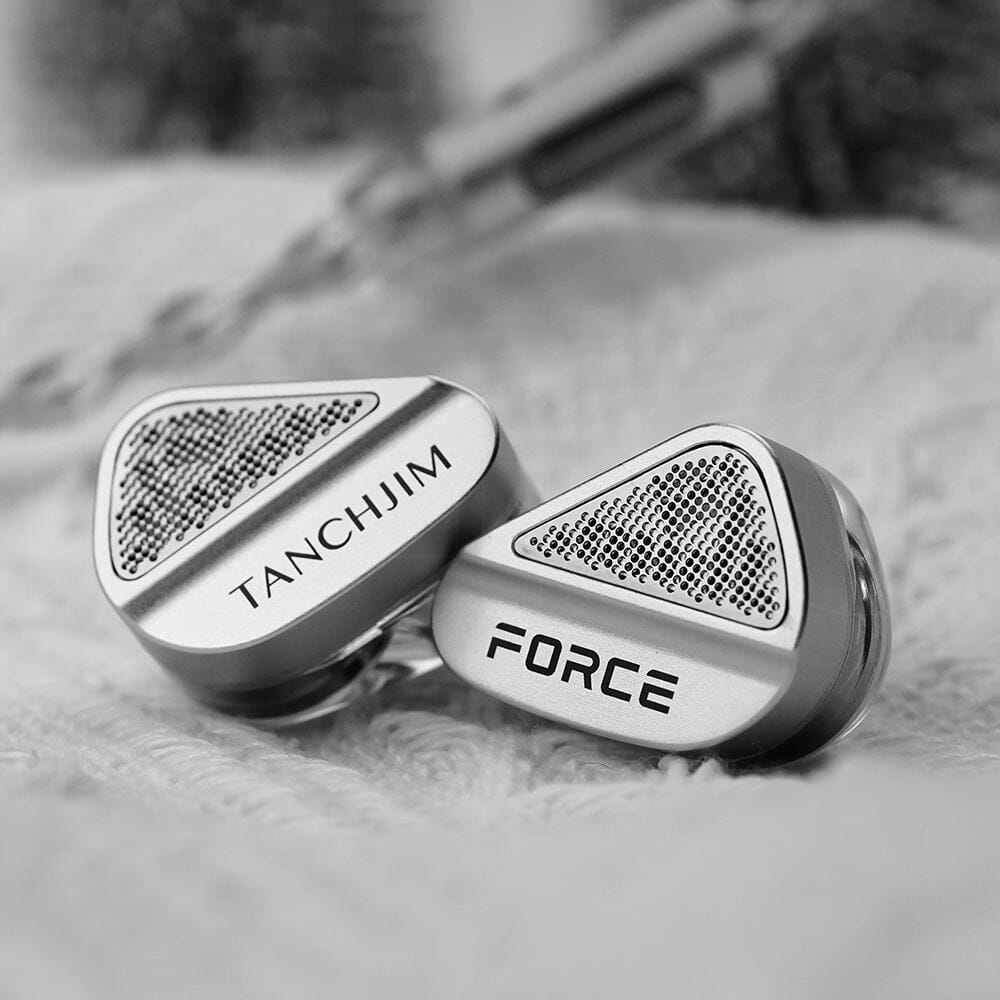

Tanchjim has joined hands with Effect Audio to co-engineer an absolutely amazing pair of in-ear monitors, meet the Tanchjim x Effect Audio Force. It employs a dual dynamic driver configuration with DMT4 Ultra series dynamic drivers developed by Tanchjim. The pair features a 10mm and an 8.2mm dynamic driver on each side. Tanchjim has used HPFD-SEF precision segmented crossover technology to get the best out of these two DD units. Additionally, the pair has an open-back style design with CNC-machined aluminium alloy face covers and transparent resin ear shells. The pair comes with a premium silver-plated single-crystal copper cable co-engineered with Effect Audio.

The Magic of Two Dynamic Drivers:-

With many successful releases like the Tanchjim Origin, Oxygen, etc., where Tanchjim featured a single dynamic driver setup, the brand has shown its proficiency in designing brilliantly tuned IEMs. Tanchjim Force takes that proficiency to the next level with its dual dynamic driver configuration. The pair features DMT4 Ultra series dynamic drivers designed by Tanchjim. It houses a 10mm and an 8.2mm dynamic driver with composite metal-coated dome diaphragm materials. Experience rich and detailed sound with amazing clarity and ultra-low distortion with the all-new Tanchjim Force.

Professional Crossover For Clean, Low-Distortion Output:-

Through the HPFD-Seg High-precision frequency division technology, the sound of the Tanchjim Force is optimized to deliver outstanding clarity and rich tonality. The 8.2mm driver adopts a PU suspension edge composite dome diaphragm, which handles the midrange and high-frequency segments, while the 10mm driver adopts a PU suspension edge titanium-plated dome diaphragm. This 10mm dynamic driver unit produces an impactful and strong lower-end region.

New Cavity Structure With Open-Back Design:-

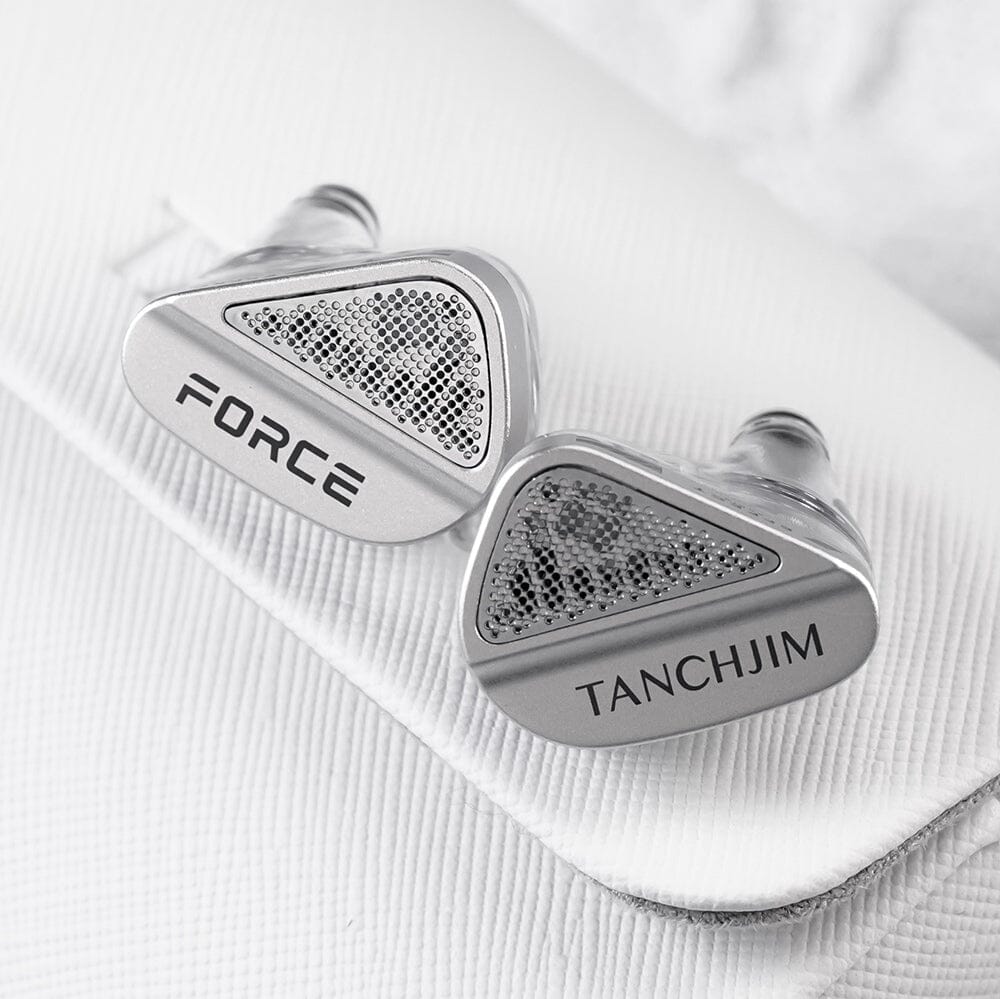

Tanchjim Force ear shells are crafted using highly precise FEA(Finite Element Analysis) simulation technology. They feature an open-back design with an ergonomic and comfortable shape. The pair adopts CNC-machined aluminium alloy face covers with transparent resin material inner shells. The pair strikes the perfect balance between comfort and premium feel.

Tanchjim x Effect Audio Co-Engineered Cable:-

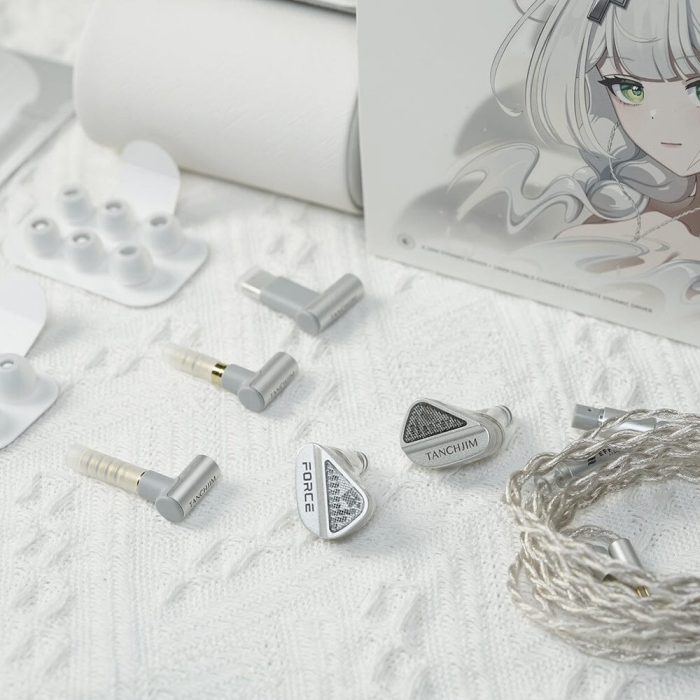

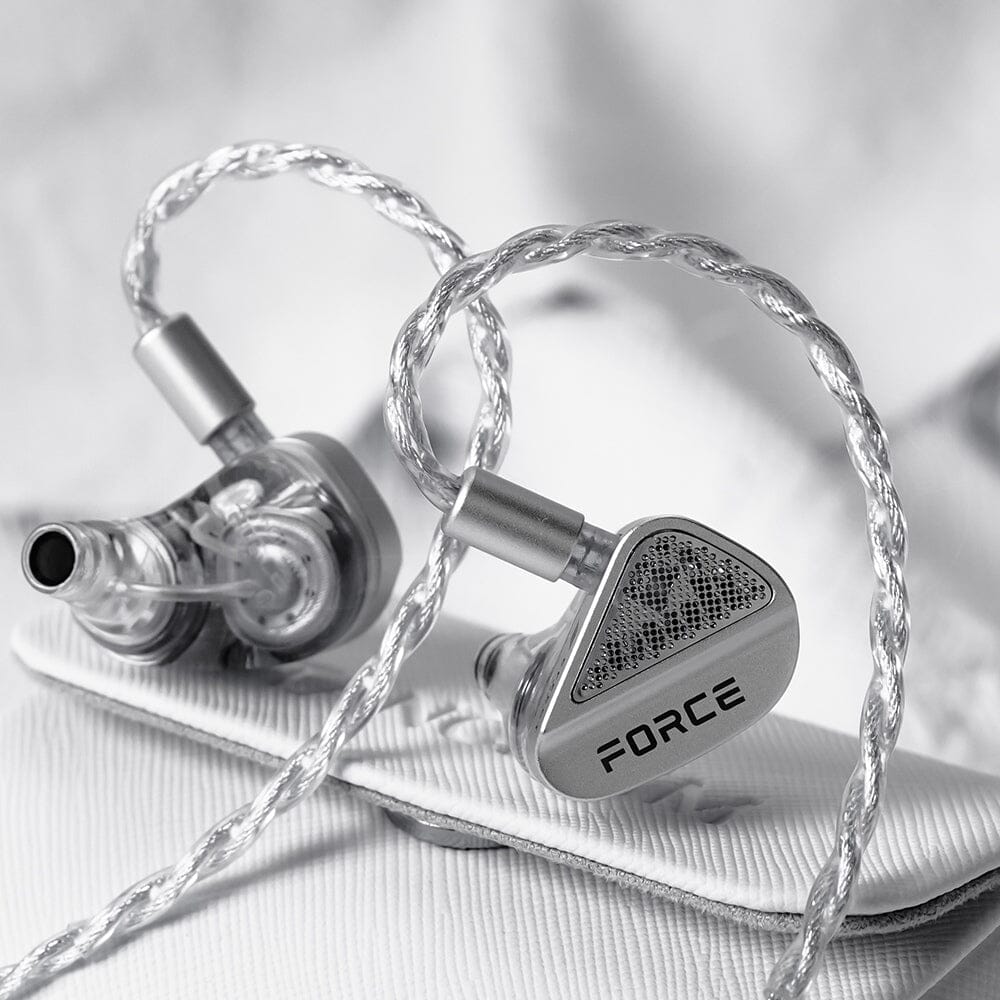

Tanchjim has joined hands with the Ace cable manufacturer, Effect Audio. Together, they have designed a high-purity silver-plated monocrystalline copper cable for the Force. The cable wire cores are derived from high-purity UP-OCC technology. It features 4 strands of 26AWG single-crystal copper silver-plated wire cores. The cable is hand-woven for perfection. This cable has 0.78mm 2-pin connectors and adopts a swappable termination plug system as well. Tanchjim bundles 3.5mm, 4.4mm, and Type-C plugs in the package.

Extremely Comfortable And Extremely Durable:-

Tanchjim Force IEMs are extremely comfy and extremely durable. They have an ergonomic, lightweight design for the shells. Furthermore, Tanchjim has also designed the pair with an air pressure relief structure in the nozzle. We also have a dust and waterproof filter on the nozzle that protects the internals from dust and water splashes.

Unlimited Possibilities with Application Integration:-

Tanchjim Force when used with Type-C plug has complete integration with Tanchjim application available on smartphones. It unlocks unlimited possibilities with graphical EQ UI, Community to share and apply different EQ profiles, etc.
