SMSL VMV D1se MQA Bluetooth 5.0 768kHz/32bit USB DAC

Features:-

>Flagship ES9038Pro Sabre DAC Chip.

>Supports Hi-res Signal Decoding with PCM support up to 32-Bit/768kHz and DSD up to DSD512 natively.

>Full MQA Decoding Support.

>Bluetooth V5.0 with aptX/AAC/SBC Wireless Codec Support.

>Premium Audio Circuitry.

>Ultra-Low Distortion and Noise Ratings.

>CNC Machined All-Aluminum Design.

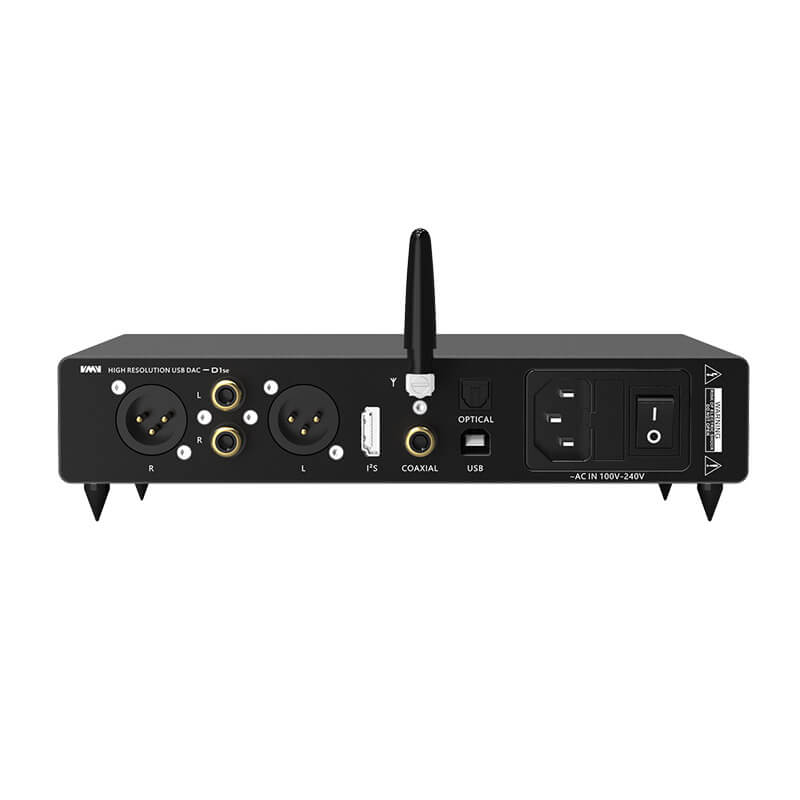

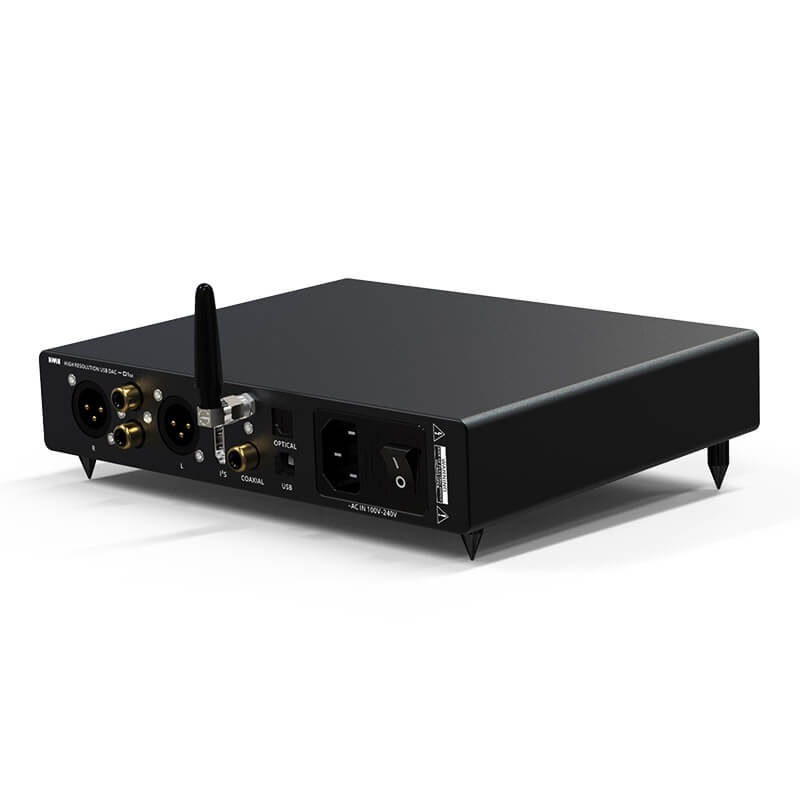

>USB/Optical/Coaxial/Bluetooth Input Support.

>Balanced XLR and Unbalanced RCA Output Support.

>THD+N: 0.00009%.

>Dynamic Range(XLR): 130dB.

>Dynamic Range(RCA): 123dB.

>SNR: 130dB.

>Output Impedance(XLR): 207 ohm.

>Output Impedance(RCA): 142 ohm.

>Power Consumption: 5W.

>Standby Power: <0.5W.

>Size: 210x39x185mm(WxHxD).

>Weight: 1.64Kg.

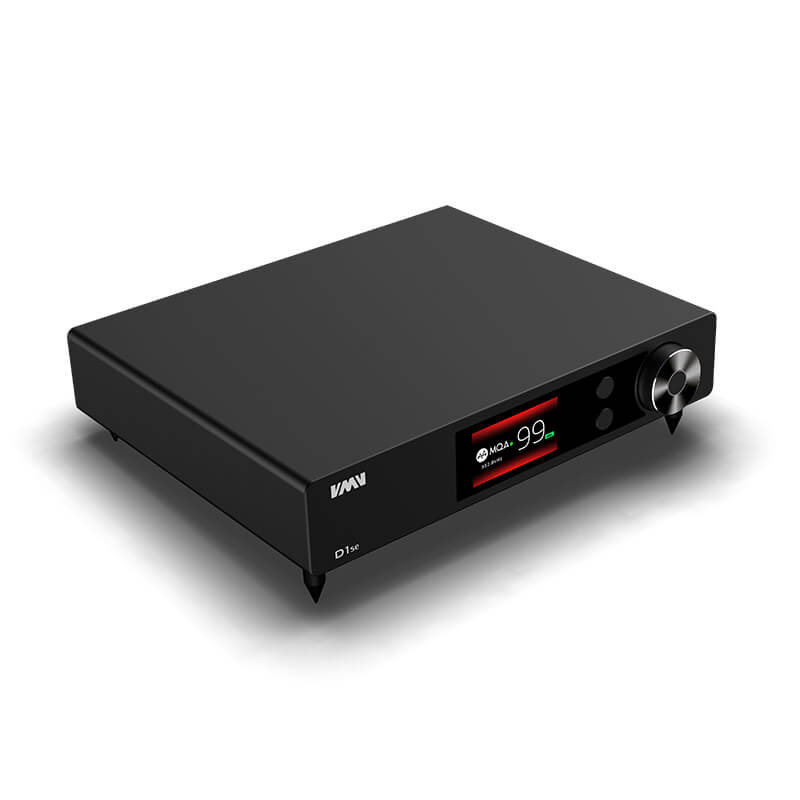

S.M.S.L VMV D1se is the latest MQA Desktop DAC in their premium VMV lineup of products. It houses all the advanced features of a high-tech DAC such as a flagship decoding chip, high-performance USB signal receiver chip, premium audio circuitry, and more. The S.M.S.L VMV D1se brings the true potential out of your audio chain with its class-leading audio signal decoding performance.

Flagship-Grade Sabre Decoding Chip:-

S.M.S.L has equipped the VMV D1se with ES9038Pro flagship-grade Sabre DAC chip. IT is a 32-bit eight-channel DAC chip providing the highest standard of audio signal decoding with ultra-low distortion, clean background, and hi-res bitrate support. It enables the D1se to achieve up to 130dB SNR ratings and ultra-low distortion of just 0.00009%.

Premium XMOS USB Signal Receiver Chip:-

The USB signal is being received by a high-performance XMOS XU216 16-core signal receiver chip. IT is a 32-Bit USB audio signal receiver that takes the audio signal straight to the DAC chip for decoding. It supports PCM up to 32-Bit/768kHz and DSD512 natively.

Dedicated Power Supply For The DAC Chip:-

The DAC chip is powered independently by ES9311 a dedicated power supply chip. It ensures peak performance with the DAC by providing it ultra-clean power with very low noise.

Full MQA Decoding:-

S.M.S.L VMV D1se has received the required certification to fully decode and render the MQA files. MQA(Master Quality Authenticated) is a new digital encoding format designed to encapsulate audio streams with extremely high sampling rates in sufficiently small files to make them suitable for network streaming media transmission.

Wireless Bluetooth V5.0 Connectivity:-

Users can feed high-quality audio signal to VMV D1se over wireless Bluetooth connection. The device supports latest Bluetooth V5.0 connectivity with AptX/AAC/SBC wireless transmission protocol support.

Audiophile-grade Premium Circuitry:-

S.M.S.L VMV D1se features premium audio circuitry with high-quality Japanese nichicon KG series filter capacitors and low-noise power supply circuits ensuring a sweet and natural performance. The power supply offers silent high-quality performance thanks to a high-grade sealed toroidal transformer.
