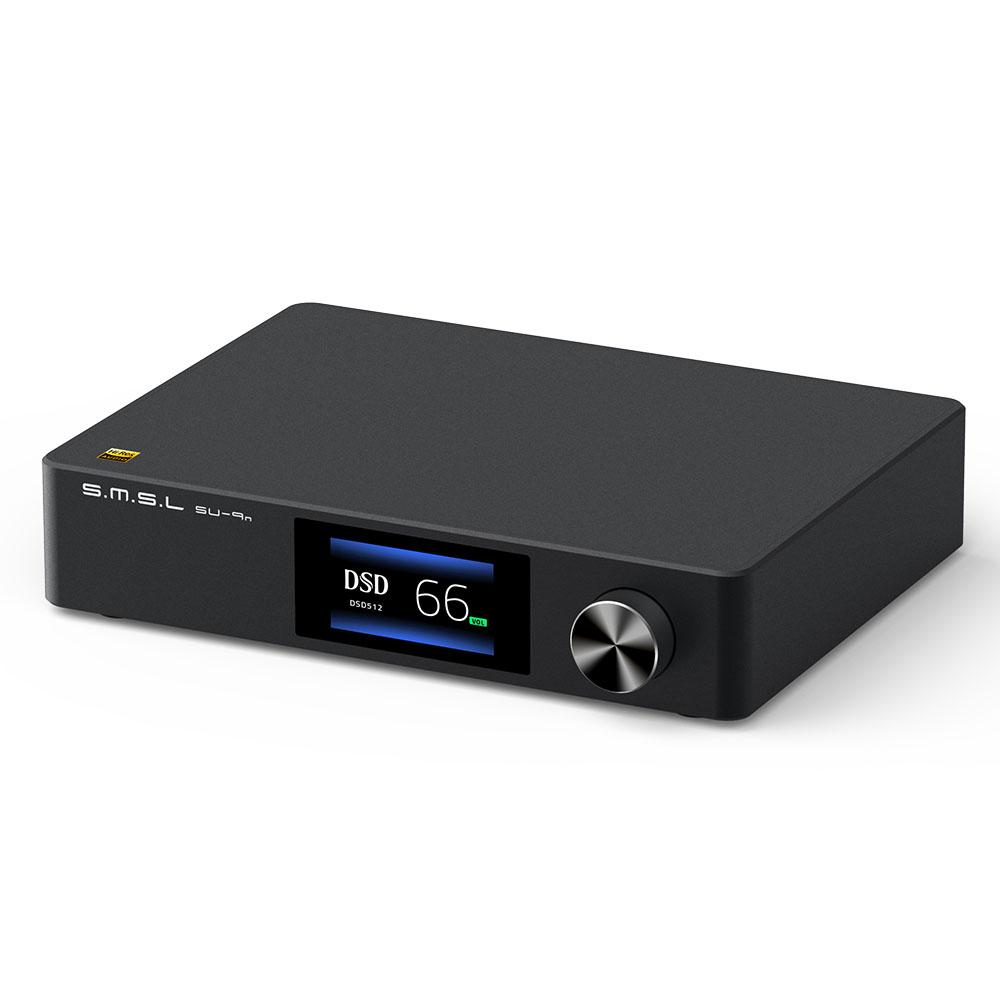

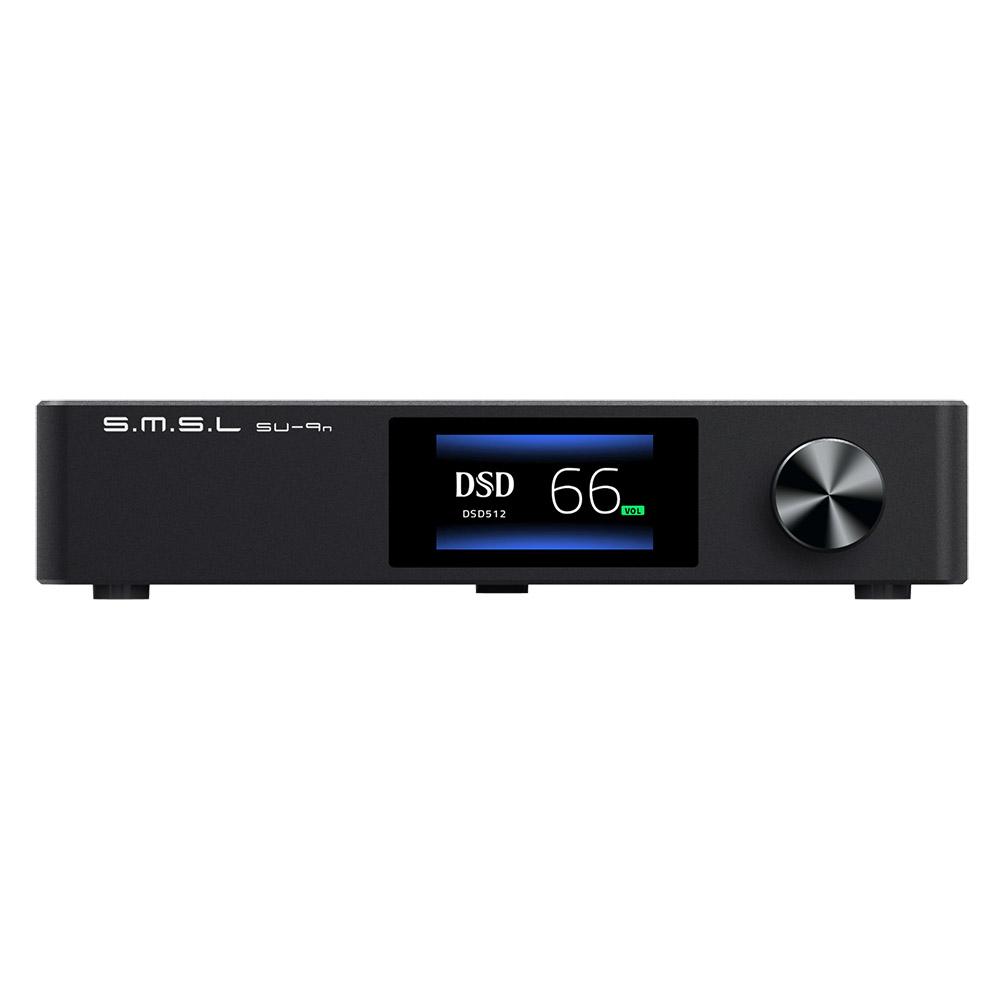

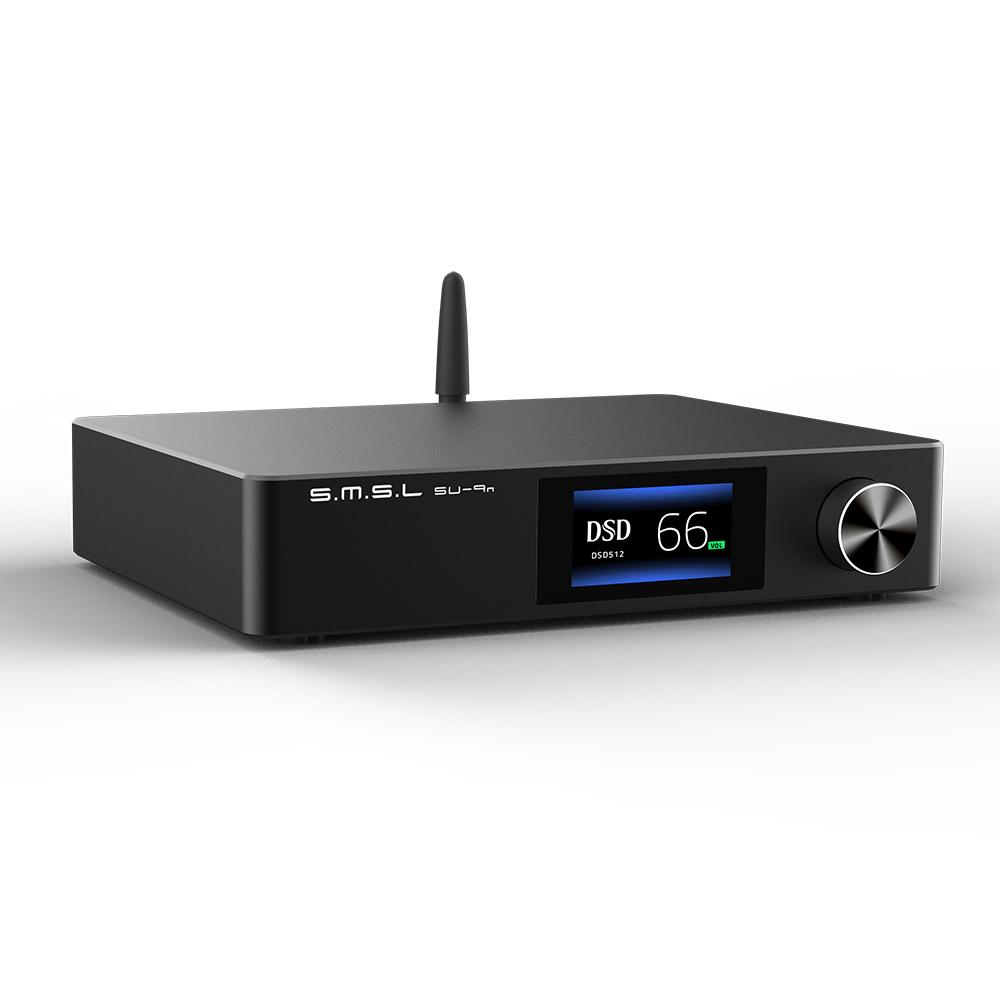

SMSL SU-9N Bluetooth 5.0 LDAC USB Balanced DAC

Features:-
>Flagship ES9038Pro DAC chip.
>High-performance ES9311 power supply chip.
>True 32-Bit XMOS XU208 USB receiver.
>New CK-02 Clock Processing Circuit with Ultra-low phase noise and optimized clock system.
>Qualcomm’s latest Bluetooth chip.
>High-resolution LDAC, AptX HD, SBC, AAC wireless transmission support.
>Gold-plated input & output ports.
>1.9” TFT LCD with Tempered glass panel.
>Built-in Shielded, low noise power supply.
>Specially designed discrete component linear regulated power supply.
>High-end components such as OPA1612 dual OPAMPs are used to ensure high-quality performance.
>JAS Hi-Res Audio Certified.
>Fully-functional remote control.
Technical Specifications:-

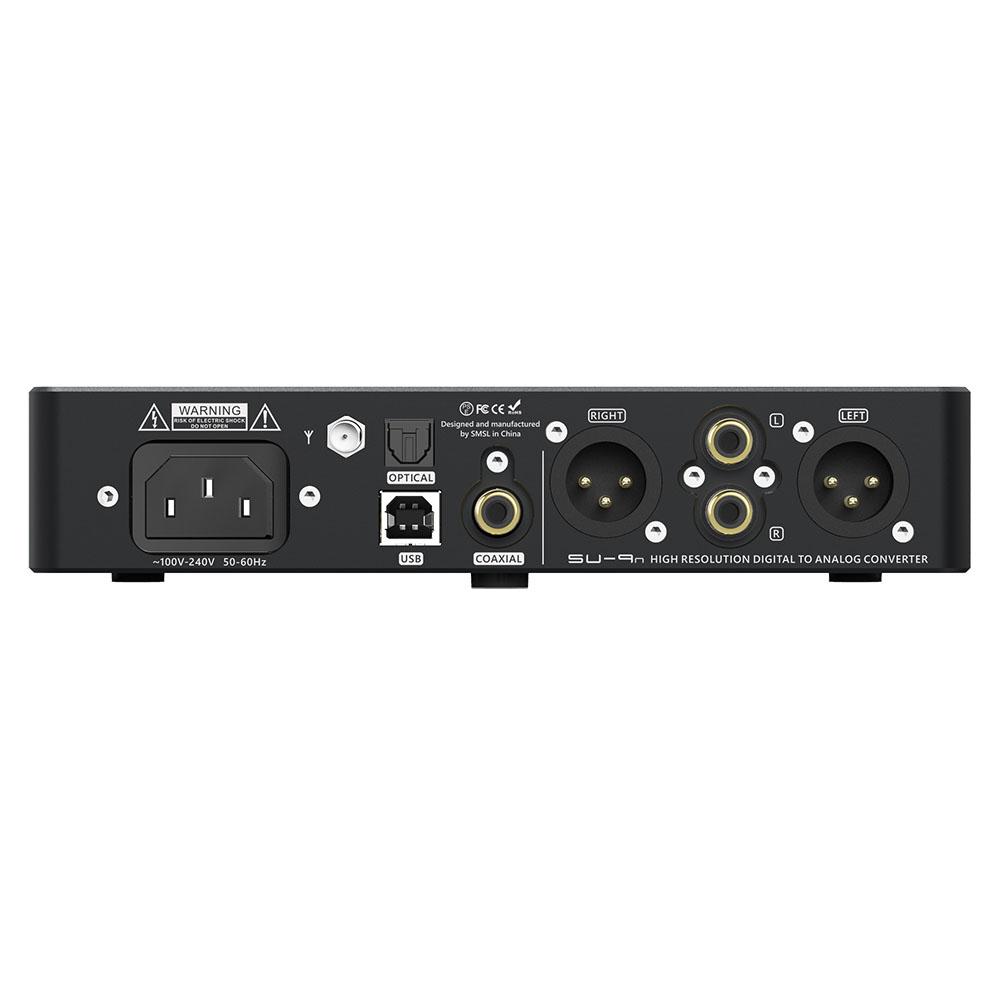

>Inputs: USB/Optical/Coaxial/Bluetooth.
>PCM Decoding: 32-Bit/768kHz(USB), 24-Bit/192kHz(Coaxial/Optical).
>DSD Decoding: Native DSD512(USB), DSD64(Coaxial/Optical).
>RCA/XLR Outputs.
>Output Level(Pre-Mode): 4.8Vrms(XLR), 2.3Vrms(RCA).
>Output Level(Fixed Line-Out): 4.3Vrms(XLR), 2.0Vrms(RCA).
>THD+N: 0.000065%(-123.5dB), 0.000055%(-125dB, A-Weighted).
>Dynamic Range: 130dB(XLR), 123dB(RCA).
>SNR: 130dB.
>Output Impedance: 207Ω(XLR), 142Ω(RCA).
>Asyncrhonized USB transmission.
>USB Compatibility: Windows 7 and above. Mac OSX and above, Linux.
>Power Consumption: 5W.
>Standby Power: <0.5W.
>Size: 187.5x154x40mm(WxHxD).
>Weight: 0.79kg.
Meet the all-new flagship-grade desktop DAC from the house of S.M.S.L, the brand new S.M.S.L SU-9N. The latest SU-9N is a fully-loaded desktop DAC featuring ES9038Pro flagship Desktop DAC, ES9311 high-performance Power Supply chip, XMOS XU208 32-Bit USB processor, Qualcomm’s latest Bluetooth processor chip, and many more pro-grade audio components. SU-9N is the sub-flagship to the SU-9 MQA desktop DAC. Enrich your desktop stack with the SU-9N today, bring home a powerful desktop DAC.
