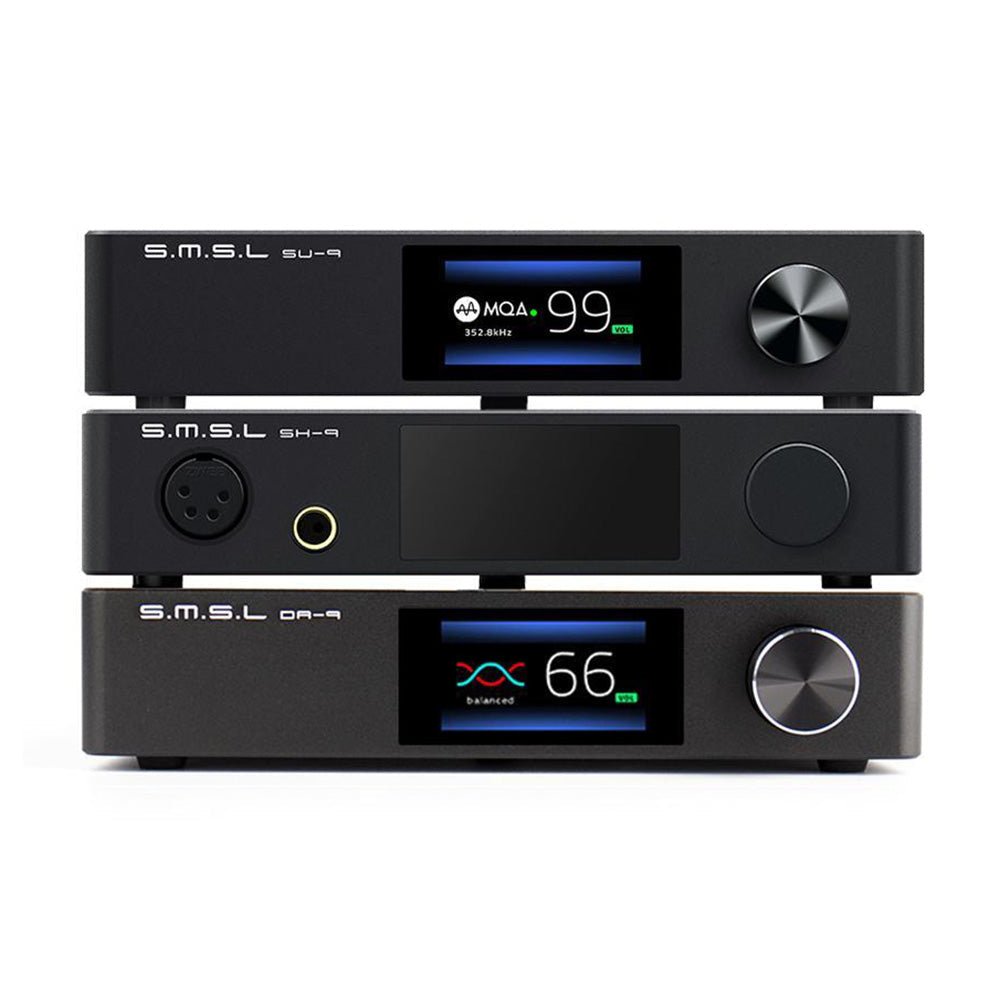

Package Contents:
t1×SU9 DAC. ( more details here )
t1×SH9 AMP. ( more details here )
t1×DA9 AMP. ( more details here )
t1×XLR cable. ( more details here )

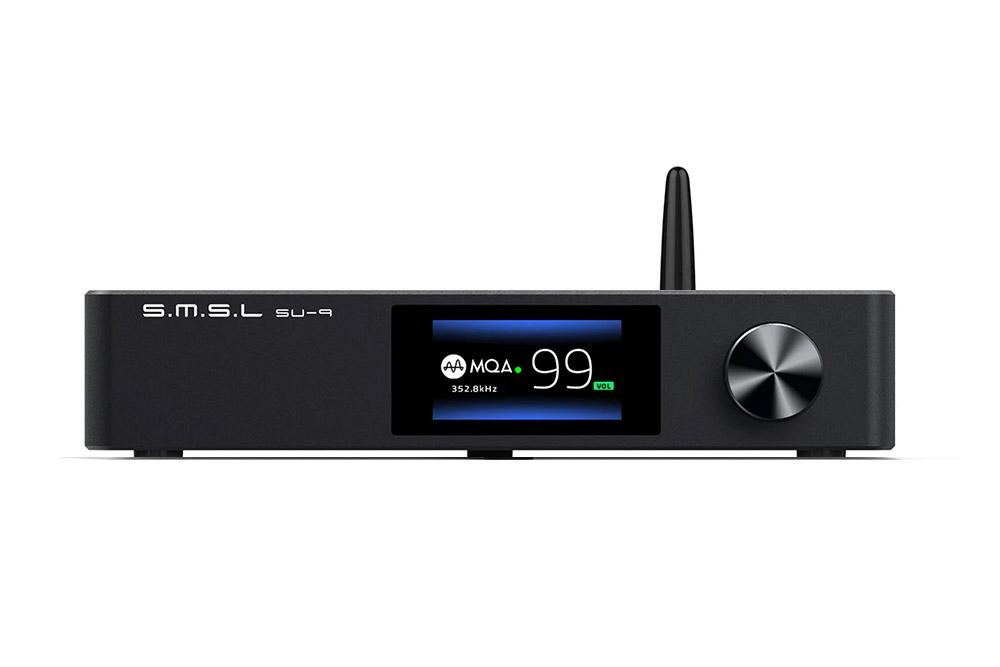

SMSL SU9 MQA DAC
ES9038Pro is currently the highest offering from American DAC chip manufacturing company ESS Technologies. The new SMSL SU-9 DAC supports a wide range of input formats, including: PCM up to 32bit 768kHz, DSD, DoP, and SPDIF. The SU-9 features a front panel with a minimalist style with a color display in the middle, and a rotary encoder on the right.
SMSL has carefully thought the circuit board layout and design through using short tracks for the analog signal to get the highest sound quality. The rotary encoder on the front panel allows for switching between inputs, changing sound color modes, setting the DAC to preamp mode, and digital volume control provided in 99 steps.
USB digital input is handled by XMOS XU-208, enabling the SMSL SU-9 of decoding PCM up to 32bit/768kHz and DSD512 and MQA. Other notable specs include seven user-selectable filters, Bluetooth connectivity, an optimized clock processing circuit, and ES9311 voltage regulators that have an ultra-low noise of 1uVrms.
The SMSL SU-9 DAC follows the company‘s footsteps and includes an internal power supply, which is definitely a plus makes the SU-9 feel heavy, assuring its high quality.
SU-9 includes a digital PLL jitter-reduction system option to reduce jitter to undetectable levels, which is useful when connecting the balanced DAC to optical source connections such as TV.
The SMSL SU-9 includes seven digital filters that are coded in the ESS ES9039Pro DAC chip itself, such as Apodizing linear fast, a fast linear and minimum phase filters, a slow linear and minimum phase filter, along with the traditional brick wall.
For wireless music playback, the SMSL SU-9 also includes a Bluetooth connection and a wireless removable Bluetooth antenna attached to the back panel of the DAC.

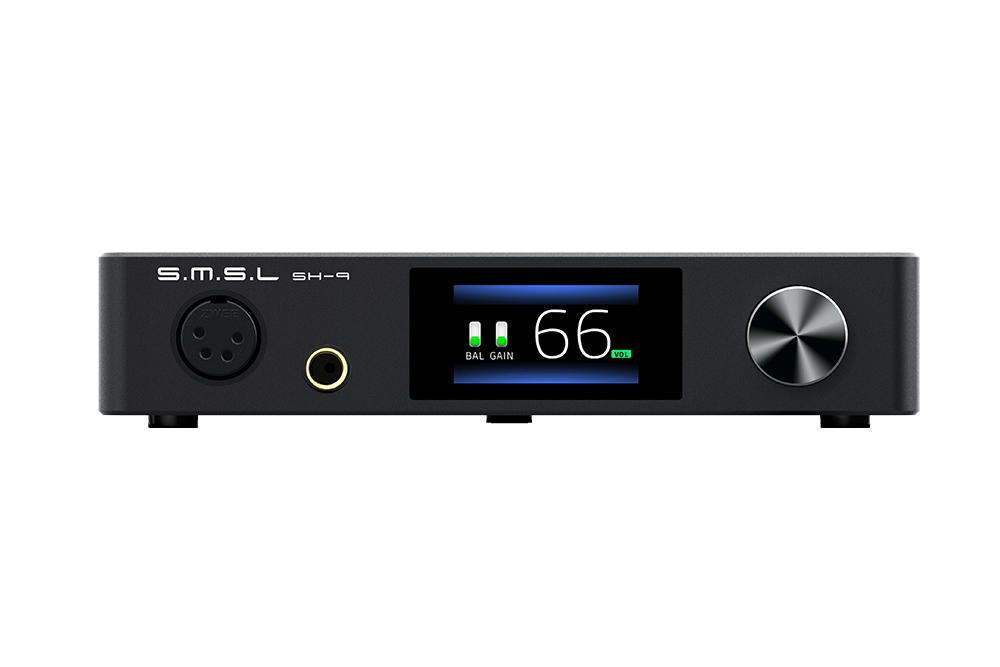

SMSL SH-9 Balanced Headphone Amplifier
Features:-
>THX-888 Amplification Module.
>Patented Feed-Forward Error Correction Technology.
>CNC Milled Aluminium Body.
>4-Pin XLR Balanced Headphone Output.
>6.35mm Unbalanced Headphone Output.
>Two Gain Levels(Low: +0dB, High: +10dB).
>Highly Efficient Low-Noise Power Supply.
>1.9” LCD Display.
Technical Specs:-
>Output Power: 6Wx2 @ 16Ω, 3Wx2 @ 32Ω, 440mWx2 @ 300Ω, 220mWx2 @ 600Ω.
>Signal To Noise Ratio: 137dB.
>Output Noise: 1.9uV, A-Weighted.
>THD+N: -123dB, 0.00006%(A-Weighted).
>THD+N: -117dB, 0.00013%(20Hz-20kHz, 32Ohm, -3dB).
>THD+N: -125dB, 0.00006%(1kHz, 16Ω, -3dB).
>Input Impedance: 47kΩ.
>Output Impedance: Near 0Ω.
>Frequency Response: 0.1Hz-500kHz(-3dB).
>Power supply voltage/frequency: AC100-240V, 50-60 Hz.
>Power consumption(EN60065): 24W.
>Power consumption in standby mode: <0.1W.
>Size: 187.5x154x40(mm).
>Packing size: 282x232x79(mm).
>Weight: 790g.
SMSL has released its latest desktop amplifier, the SMSL SH-9. It is a high-performance fully balanced amplifier with THX AAA-888 amplification circuit and offers both balanced and unbalanced input and output options.
Certified THX AAA-888 Amplification Circuit:-
The SMSL SH-9 is equipped with a certified THX AAA-888 amplification circuit. THX AAA(Achromatic Audio Amplifier) ensures an ultimate sound quality experience with supreme power, ultra-low levels of noise-floor, distortion, and power consumption.
Patented Feed-Forward Error Connection Topology:-
The THX AAA-888 amplification circuit inside the SH-9 features a patented feed-forward error connection topology. It nullifies conventional distortion mechanisms and results in a high-fidelity sound quality experience for its users.
Fully Balanced Architecture:-

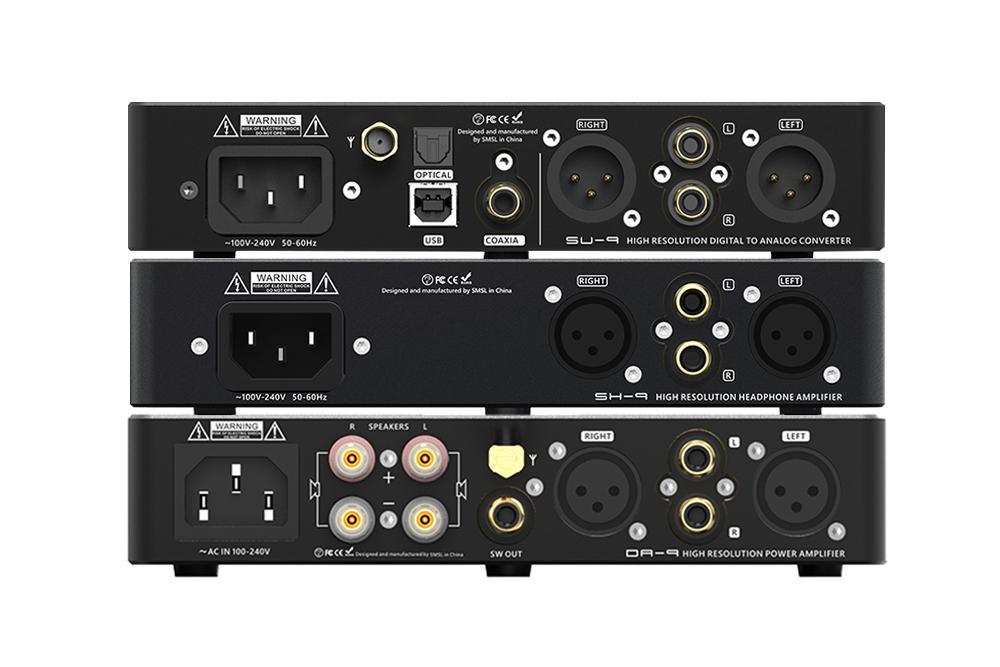

The SMSL SH-9 consists of a balanced circuitry for the audio signal amplification. It has both balanced and unbalanced input-output ports. It houses a balanced XLR signal input along with unbalanced RCA input. So you can connect it to your DAC systems without any trouble. For output, the SH-9 features a 4-pin XLR balanced port and a 6.35mm unbalanced port.
PowerHouse For Your Headphones:-
Are you getting trouble powering your headphones? Don’t worry anymore, we got your covered. The SMSL SH-9 is a highly capable device with humongous output power. It has a monstrous power rating of up to 6Wx2 @ 16Ω, 3Wx2 @ 32Ω, 440mWx2 @ 300Ω, and 220mWx2 @ 600Ω. This is more than enough to power up your most demanding headphones without any trouble.
High-Precision Volume Adjustment:-
The SMSL SH-9 features a high-precision 256-interval analog volume adjustment built on a resistance array. This ensures precise volume adjustment with your headphones and IEMs. Yes the SH-9 has an ultra-low output impedance of nearly 0Ω, so you can use sensitive IEMs with the SH-9.

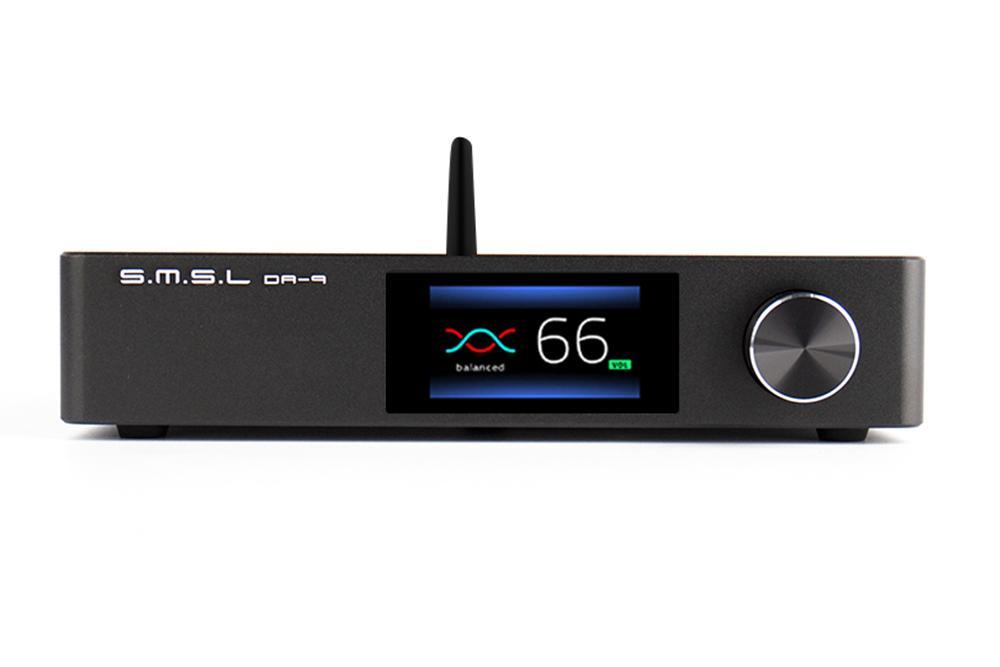

SMSL DA-9 Power Amplifier Bluetooth 5.0 Balanced Input
Features:-
>German Infineon’s SiliconCarbide Amplifier Chip.
>NJW1194 NJRC’s High-Precision Digital. Volume Control Chip.
>Balanced Circuit.
>XLR-Balanced Input Support.
>SMSL SDB Patented Sound.
>8 EQ Modes.
>Colorful LCD Display.
>CNC Machined Aluminum body.
>Bluetooth V5.0 Connectivity.
>Infrared Remote Control.
>Hi-Res Audio Certification.
>THD+N: 0.003%.
>SNR: 111dB.
>Channel Separation: 96dB.
>Input Impedance: 250mV/47kΩ.
>Output Power: 150Wx2(2Ω), 90Wx2(4Ω), 50Wx2(8Ω).
>Power Consumption: 40W(Normal Volume).
>Standby Power: 0.5W.
>Dimension: 187.5x154x40mm(WxHxD).
>Weight: 0.96Kg.
>Weight(With Package): 1.46Kg.
S.M.S.L has launched its latest desktop power amplifier, the S.M.S.L DA-9. The device houses premium components such as high-performance German Infineon’s Class D Amplifiers, High-precision Japanese volume controller, and more. The DA-9 surely takes your desktop audio chain to a whole new level with its quality performance.
High-Performance Power Amplification Chips:-
The S.M.S.L DA-9 features two German Infineon’s latest Class D Power Amplification Chips. These make the DA-9 a highly efficient power amplifier improving its efficiency by up to 92%.
Premium Japanese Volume Control Chip:-
S.M.S.L DA-9 features a high-precision NJW1194 digital volume control chip from Japanese brand NJRC. It allows for precise volume adjustment with ultra-low distortion. With precise volume adjustment, users can pair sensitive speaker systems with the DA-9.
Eight Different Equaliser Options:-
The SMSL DA-9 features 8 different built-in Equaliser modes such as Direct, Tone, Bass, and their own patented SDB settings. S.M.S.L has designed a special SDB option that provides individual treble and bass frequency adjustment.
Separate Subwoofer Output Port:-
The SMSL DA-9 features separate sub-woofer output for your powerful 2.1 speaker systems. Enjoy a powerful output with your active and passive speaker systems with tremendously powerful output with the DA-9.
High-Resolution Bluetooth Support:-
The SMSL DA-9 supports strong Bluetooth V5.0 connectivity with Hi-res codec support. The device supports AptX, UAT, and more high-resolution codecs for signal input.
Premium CNC Machined Chassis, LCD Display, & Infrared Remote Control:-
The SMSL DA-9 is made with a high-precision CNC machining process using high-quality Aluminum alloy material. it also features a colorful LCD display on the front that displays active volume level and other functions. The DA-9 can be completely operated using the remote control bundled in the package.
