Features:-
>Premium ES9038Pro DAC Chip.
>Excellent Sound Performance With Ultra-Low Distortion Ratings.
>Latest-Gen XMOS USB Processor.
>Brand-new PLFC Headphone AMP Circuit.
>Upgraded Clock Circuit.
>Multiple-Inputs(USB, Optical, Coaxial, Bluetooth).
>Two-level gain switch.
>Seven PCM Digital Filters.
>1.9” IPS colorful display.
>Full MQA Certified.
>MQA-CD Certified.
>JAS Hi-Res Certified.
>Upgraded AC Socket.
>Full-Functional Remote Control.
Technical Parameters:-
>PCM Decoding: 32-Bit/768kHz.
>DSD Decoding: DSD512 natively.
>Distortion: 0.00006%(-123dB)(Un-Wtd).
>Headphone AMP Distortion: 0.0001%(-120dB)(Un-Wtd).
>Headphone Output Power: 2Wx2(16Ω), 1Wx2(32Ω).
>Gain Mode: 0dB(Low), +9dB(High).
>Headphone Output: 6.35mm.

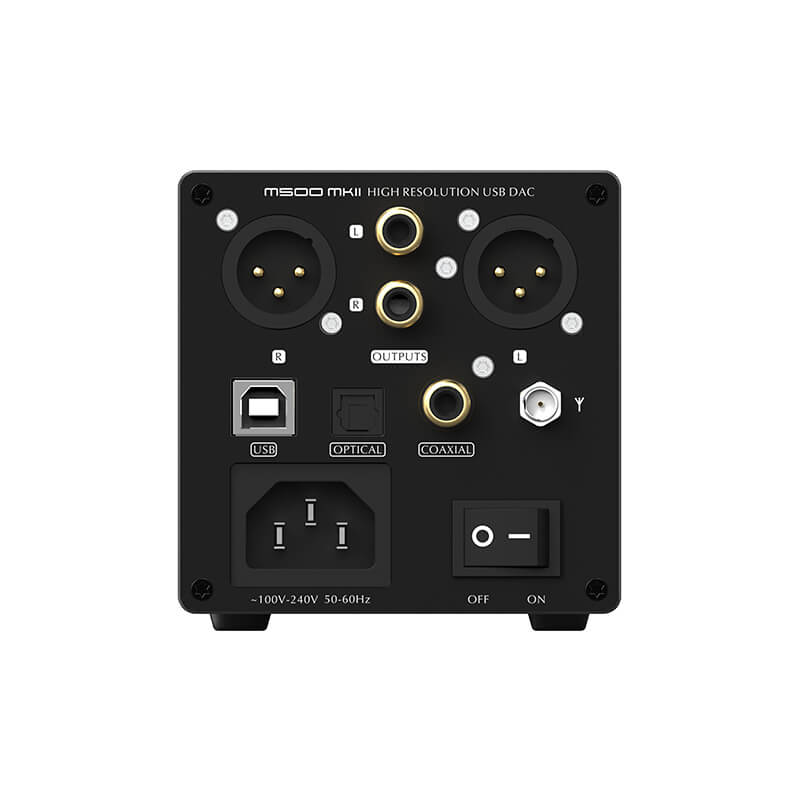

>Line-out: RCA, XLR.
>Dynamic Range: 131dB(XLR), 126dB(RCA).
>SNR: 131dB(XLR), 126dB(RCA).

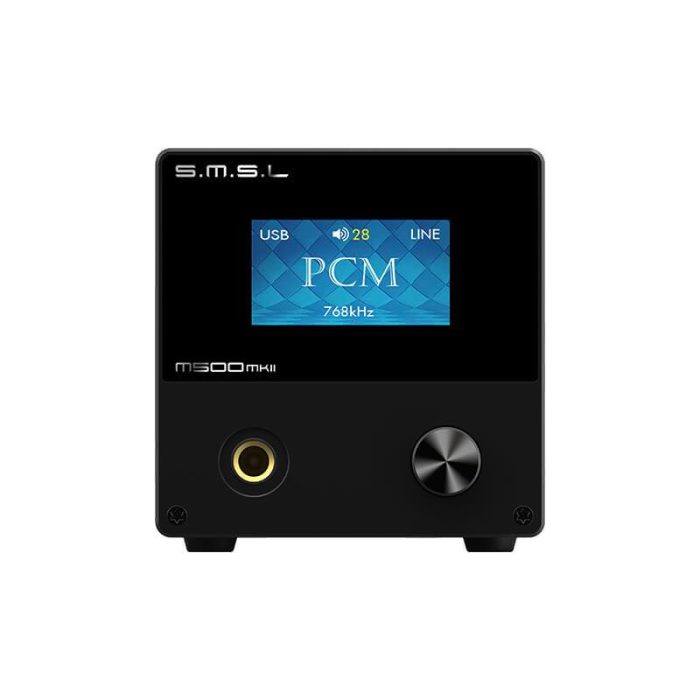

Meet the all-new S.M.S.L M500 MK II, a high-performance USB all-in-one desktop DAC and Headphone Amplifier. It comes as an upgrade to the classic M500 USB DAC/AMP from S.M.S.L that was released a few years back. S.M.S.L has upgraded the M500 to have up-to-date latest features in the M500 MK II including full MQA decoding, upgraded Clock chipset, improved headphone power output, improved distortion ratings, and many more. If you are looking for a one-point solution for your headphones with flagship-grade desktop DAC, the S.M.S.L M500 MK II is an excellent device designed for an audio enthusiast.
Flagship-Grade Sabre DAC:-
For unmatched performance, S.M.S.L has kept their trust with flagship-grade ES9038Pro DAC chip from ESS Sabre Technologies. It is a 32-Bit 8-channel DAC that is trusted by many famous brands in the industry for its outstanding capabilities in decoding high-resolution audio signals. It enables the M500 MK II to achieve ultra-low THD+N and high SNR ratings ensuring a clean and noise-free sound signal decoding.
MQA and MQA-CD Certified:-
S.M.S.L M500. MK II is fully certified for master-quality audio decoding. It fully supports MQA(Master Quality Authenticated) audio signal decoding across different inputs that includes USB, Coaxial, and Optical. For MQA CD, you need to connect your CD player to the M500 MK II using Coaxial or Optical connections.
High-Resolution Wireless Bluetooth Connectivity:-
S.M.S.L M500 MK II features the latest Bluetooth chip from Qualcomm that provides stable Bluetooth V5.0 connectivity with high-resolution LDAC, AptX HD, AptX. and more codec support. LDAC transmission supports the best quality audio signal input over a wireless connection with support for 24-Bit/96kHz bitrate streaming.
Newly-Developed PLFC Headphone AMP Circuit:-
S.M.S.L M500 MK II features a brand-new headphone amplifier circuit that helps the device produce powerful output while maintaining low distortion ratings. It allows the M500 MK II to obtain more than 2Wx2 output power rating at less than -120dB distortion @ 16Ω of load.
Independent Volume Adjustment Function With Mutual Memory:-
S.M.S.L M500 MK II allows the user to adjust the volume for pre-amp and headphone amp modes separately. This will be completely independent of each other. It also memories your volume level for both the modes, so when you switch between them, M500 MK II remembers your chosen volume level.
S.M.S.L M500 MK II Vs S.M.S.L M500:-
The latest S.M.S.L M500 MK II brings several updates over the classic M500 model that includes MQA decoding, Bluetooth connectivity, upgraded clock circuit, brand-new PLFC headphone amplification circuit, upgraded 3-pin power supply with grounding, and also a brand new remote control.
