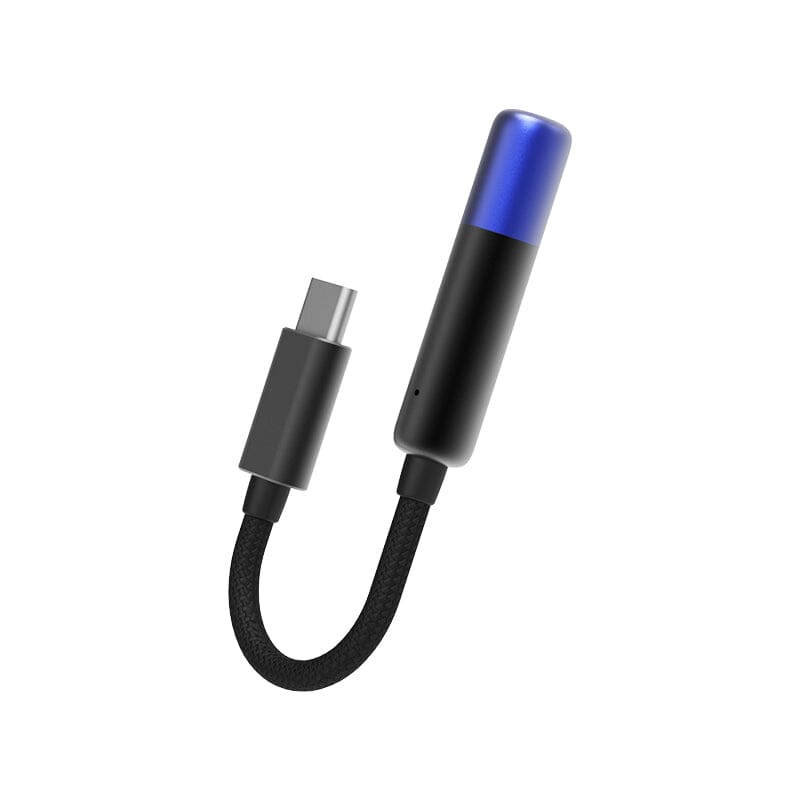

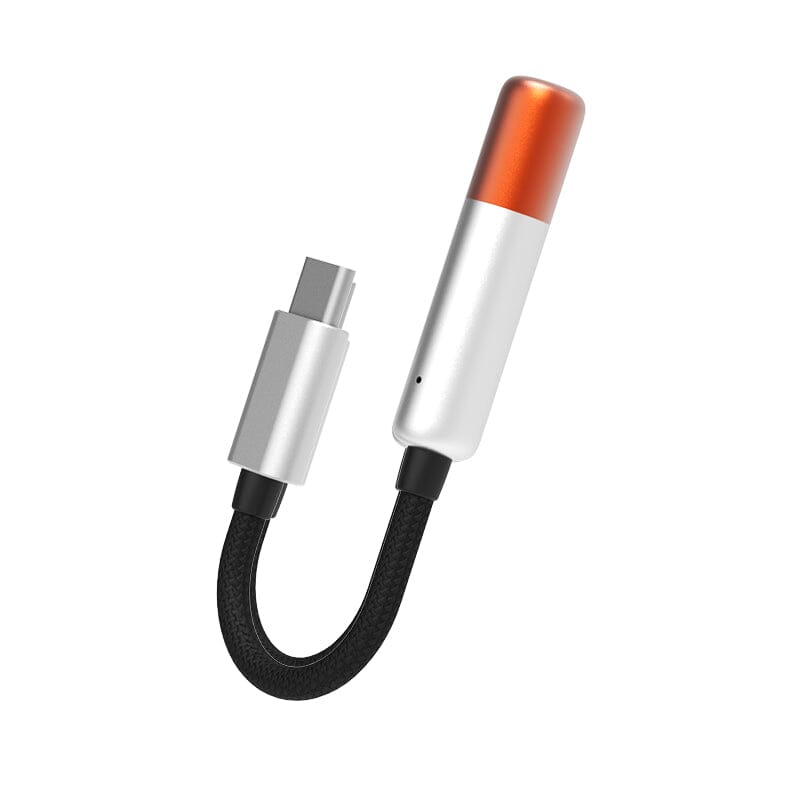

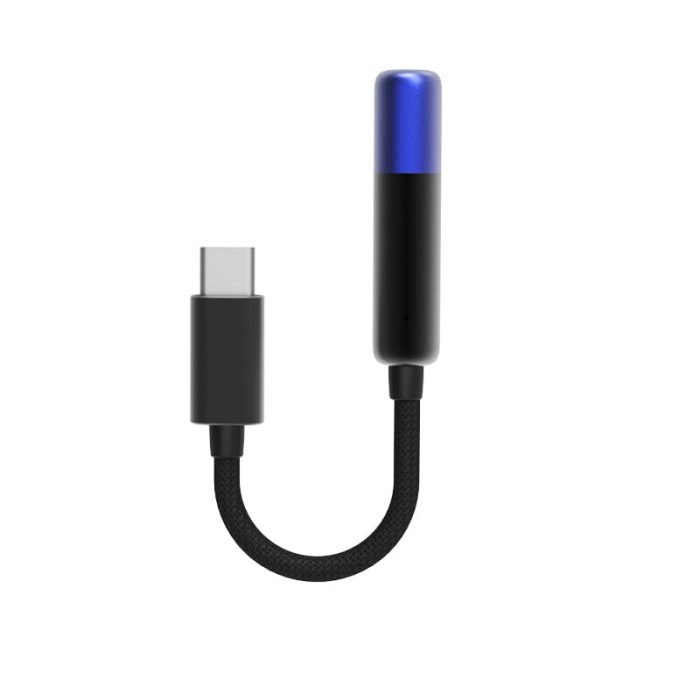

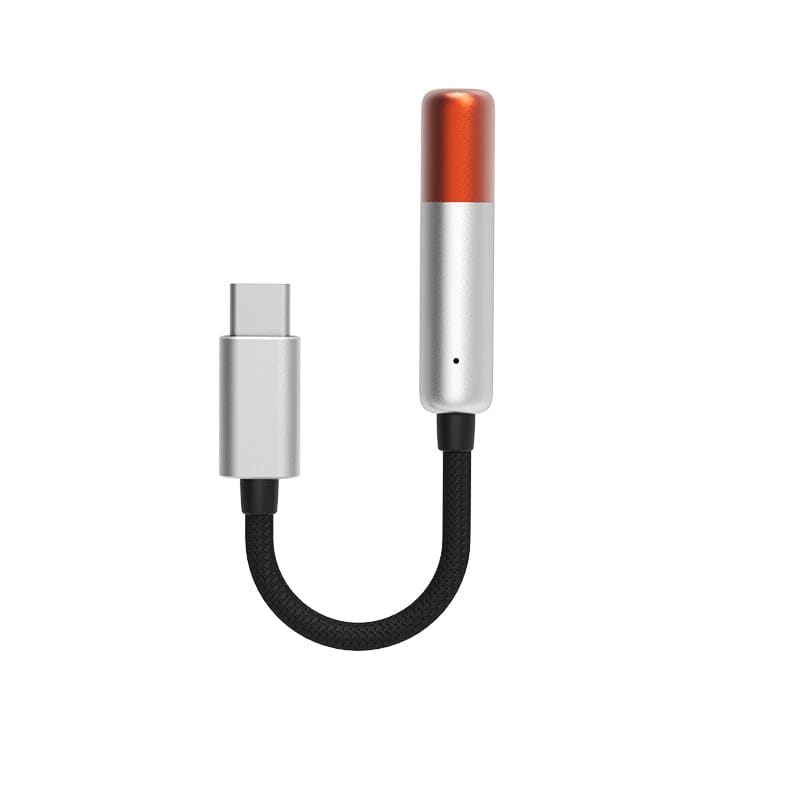

SHANLING UA Mini CS43131 Portable USB DAC/AMP

Features:-
>Ultra-Compact Portable USB Type-C DAC/AMP.
>High-Performance Cirrus Logic CS43131 DAC Chipset.
>High-Power Amp Chipset with Dual SGM8262 Chips.
>Eddict Player Application Integration.
>Supports UAC1.0 Mode.
>32-bit/384kHz PCM and Native DSD256 Decoding.
>Clean Output with Almost Zero Noise.

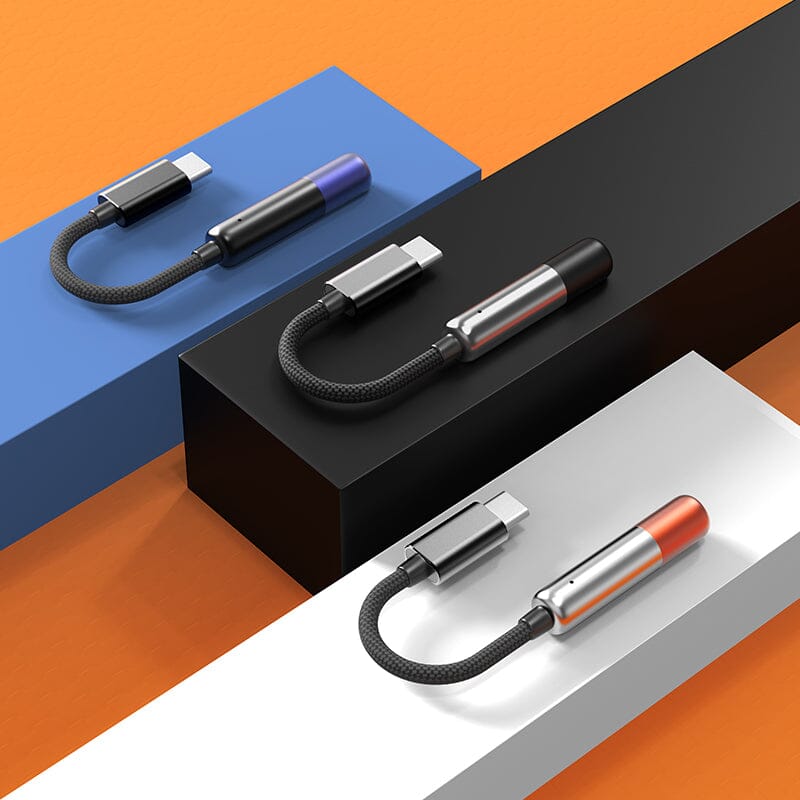

>Three Exciting Colour Options.
>High-Purity OFC Silver-Plated Cable.
>LED RGB Indicator Light.
>Universal Type-C Interface.
>Compatible with Windows and Mac Devices.
Shanling has introduced the all-new UA-Mini ultra-compact portable Type-C USB DAC/AMP. Equipped with high-performance CS43131 DAC chips along with a powerful amp section featuring dual SGM8262 amp chips, the Shanling UA-Mini delivers a clean and powerful output. It supports native DSD and 32-bit PCM audio signal processing. Shanling UA-Mini has complete integration with the Eddict Player application that helps you adjust various playback settings on the UA-Mini. Shanling UA-Mini is now available in three exciting colour options. Enjoy a seamless high-fidelity audio experience with the all-new Shanling UA-Mini.
Control Your Playback With Eddict Player Application:-
Shanling UA-Mini has complete integration with Shanling’s very own Eddict Player application. It brings you smart playback control, fine-tune the volume, switch the digital filters, adjust the gain filters, channel balance, and other settings. Personalize your experience with the UA Mini using the Eddict Player media application.
Enjoy True High-Fidelity Audio Processing:-
Shanling UA-Mini comes equipped with Cirrus Logics’ advanced CS43131 DAC chipset. It is a 32-bit DAC that provides exceptional high-resolution audio signal processing characteristics, delivering high SNR, DNR, and ultra-low THD+N performance. It packs in true high-fidelity audio signal processing with support for 32-bit/384kHz PCM and native DSD256 audio signals.
Powerful Output With Dedicated Amp Section:-
Shanling has equipped the UA-Mini with a dedicated amp section consisting of dual SGM8262 chips. It produces a strong output reaching about 260mW per channel at 16Ω and about 205mW per channel at 32Ω of impedance load. Enjoy your favourite IEMs and headphones with the Shanling UA-Mini.
Supports UAC1.0 Mode:-
Dominate the battlefield with the support of UAC1.0 mode on the Shanling UA-Mini. It enables high-resolution audio signal processing on the Nintendo Switch gaming console. Enjoy high-quality audio while playing your favourite video games on the Nintendo Switch gaming console.
LED Indicator That Denotes Active File Bitrate:-
Shanling UA-Mini features a multi-colour LED indicator that glows with different colours based on the active file’s bitrate. It glows Blue for 44.1~48 kHz, Green for 88.2~96 kHz, Yellow for 176.4~192 kHz, Purple for 352.8~384 kHz, and White for native DSD audio signals.
Specifications:-
Weight: about 8.4g
Headphone jack: 3.5mm
Plug: Type-C USB cable plug
USB chip: Savitech SA9312
DAC chip: Cirrus Logic CS43131
Op amp chip: SGM8262-2
PCM specification: 44.1-384kHz/32bit
DSD specification: DSD64-DSD256
Output power: (32QTHD+N<1%)L+R=205mW+205mW
Output power: (16QTHD+N<1%)L+R=260mW+260mW
SNR 126dB (32Ω load/A weighting)
DNR 126dB (32Ω load/A weighted)
THD+N: 0.0004% (-3dB@32 load)
Noise floor: 1.4μV (A weighted)
Frequency response: ±0.2dB (20-20kHz)
