Features:-
>Premium Dual DAC Chipset.
>Dual AK4493SEQ DAC Chips.
>XMOS XU316 USB Processor.
>Specially Developed High-Power Amp Section.
>OPA1612 & LTA8092 Chips.
>Full MQA Decoder.
>Hi-Res PCM & Native DSD Signal Decoding.
>Three-Step Gain Compensation.
>Six Built-In Digital Filters.
>High-Definition Bluetooth V5.0 Connectivity.
>Supported Codecs: LDAC, SBC, AAC etc.
>RCA Line-Out.
>3.5mm+4.4mm Headphone Outputs.
>Clean & Powerful Output(Up to 840mW@32Ω).
>Remote Control Function by Eddict Player Application.
>Built-in 0.87” OLED Display Screen.
>Ingenic X1000 Platform.
>Aviation-Grade Magnesium-Aluminum Alloy Chassis.
>Large-Capacity 3500mAh Battery.
>QC3.0 18W Fast Charging Support.
>Available in Two Stunning Color Options.

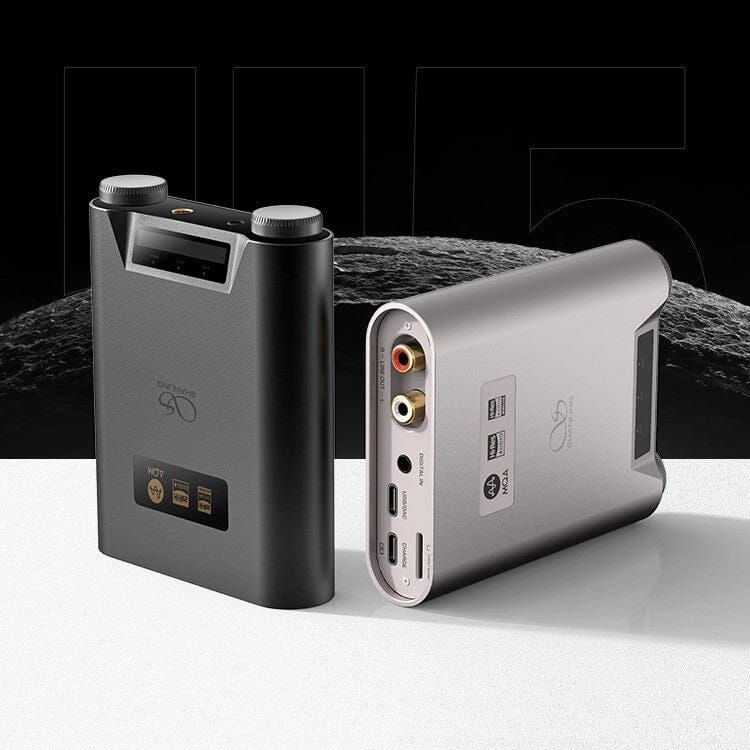

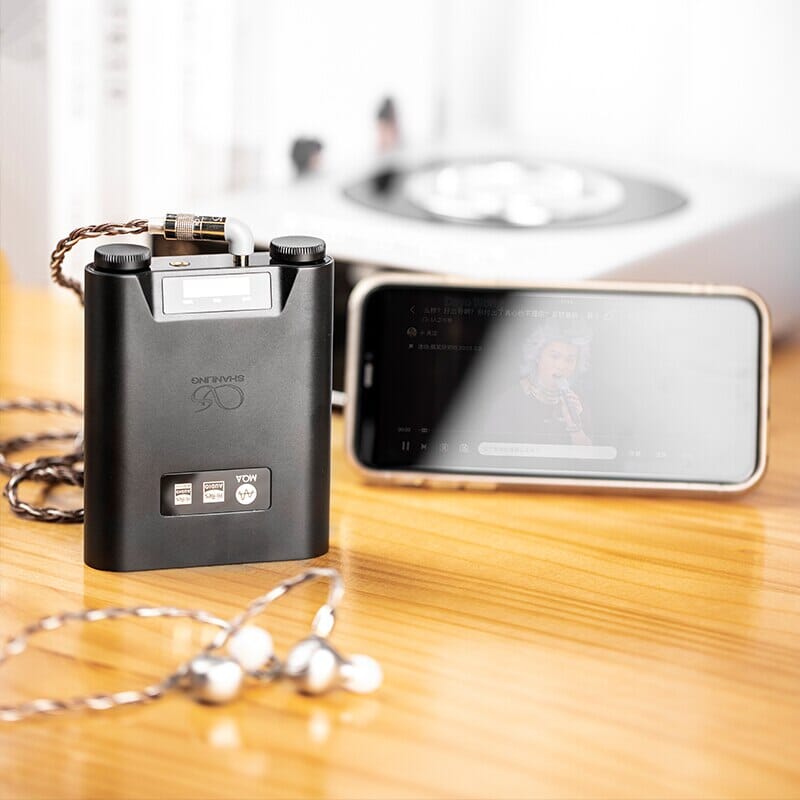

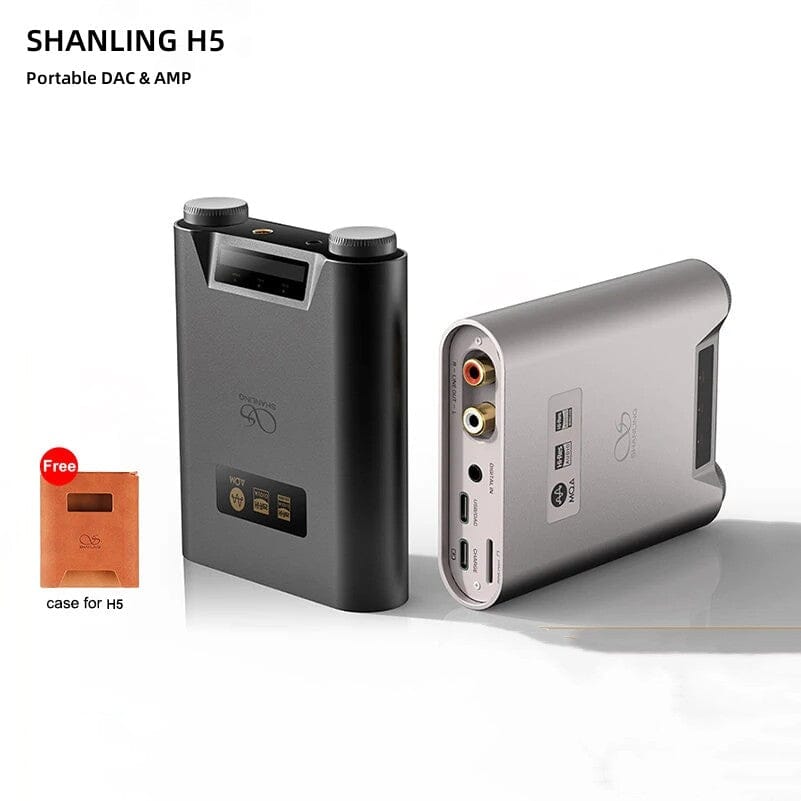

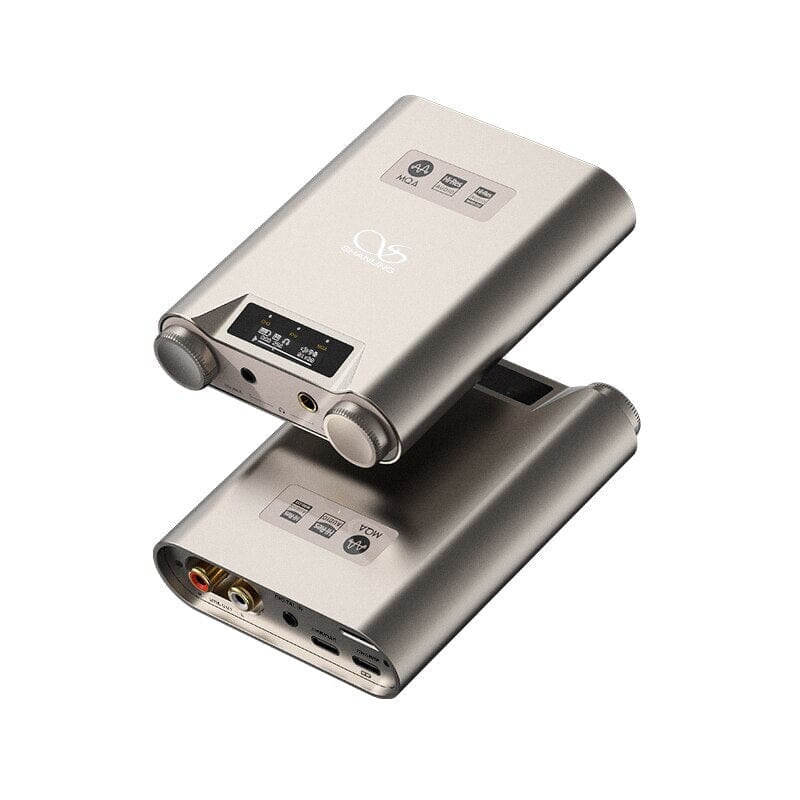

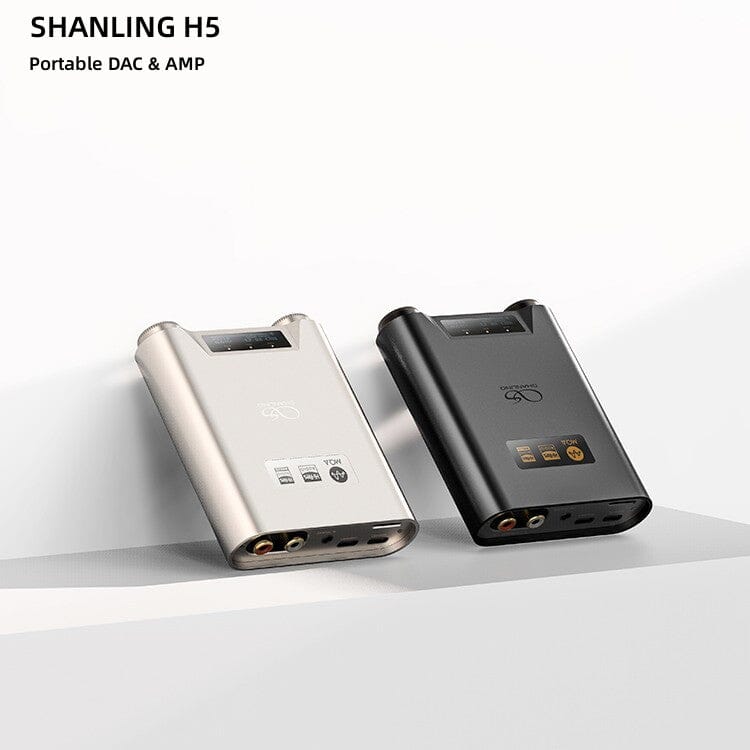

Shanling H5 is a portable DAC & Headphone Amplifier featuring a high-performance Dual DAC chipset and a high-power amp section. You are greeted with a lovely tone and rich sound of AKM’s latest AK4493SEQ DAC chips combined with the XMOS XU316 USB Processor. The H5 supports decoding for high-resolution PCM and DSD audio signals as well as MQA decoding function as well. It’s an easy-to-carry device that you can set up anywhere and enjoy your favorite music with ultimate quality!!
Premium, Rich Sound With AKM DAC Chips:-
Shanling has equipped the latest H5 with a high-performance Dual DAC chipset. The device houses two AK4493SEQ DAC chips from AKM Technologies. They are high-quality 32-Bit DAC chipset that provides beautiful performance in decoding high-resolution audio signals. Shanling H5 produces clear sound with high SNR performance and low harmonic distortion.
Latest-Generation XMOS USB Processor & MicroSD Card Slot:-
Shanling H5 benefits from XMOS’s latest generation 16-core XU316 USB processor chipset. It enables high-resolution 32-Bit/768kHz PCM and native DSD support on the H5(while using USB input). Users also have a microSD card slot that supports memory cards up to 2TB capacity. Users can access their music library using the Eddict player on their smartphone by remotely controlling the H5.
Newly-Developed Op-AMP Amplifier Arrangement:-
Shanling has featured a newly-developed OPAMP-based Amplification circuitry on the latest H5. The devices house dual TPA6120 and OPA1612 OPAMP chips for a strong output signal amplification. H5 packs an output power rating of up to 840mW @ 32Ω of impedance!!
Dual Headphone Output With Three-Level Gain Compensation:-
Shanling H5 features both single-ended as well as balanced headphone connection ports. The device supports a three-level gain mode easily helping the users to pair their favorite pair of IEMs and Headphones with the H5. Maximum output power with the Shanling H5 is up to 840mW@32Ω of impedance load through the balanced 4.4mm output and the 3.5mm single-ended output provides up to 227mW of clean output. The output Impedance of Balanced 4.4mm output is 6.6Ω and 3.5mm output has an output impedance of 4.7Ω.
Built-in Display Screen:-
Shanling H5 features a small 0.87” small display screen that showcases different settings and playback information on the device. Right alongside this display screen, we also have three multicolor led indicators that showcase different settings such as active bitrate, charging indicator, and MQA status.
High-Resolution Bluetooth Input:-
Along with USB Input, you also have a wireless Bluetooth input option on the Shanling H5. The device supports high-definition wireless transmission protocols including LDAC, AAC, SBC etc.
Large-Capacity Battery:-
Shanling H5 houses a 3500mAh large-capacity battery pack. The device has got a rated battery life of up to 12.5 hours with a single charge. Simply charge the device once and enjoy hours of usage!!
