Features:-
>Top-loading Philips CD80 Drive & Sanyo HD850 laser head.
>Premium ESS ES9219C HiFi DAC Chip.
>LTA8092 OP-AMP.
>Ingenic X2000 System Platform.
>Ampak AP6256AC Module For Bluetooth V5.0 connectivity.
>Compact Colorful Display.
>Motorola IPS Panel.
>Headphone Output.

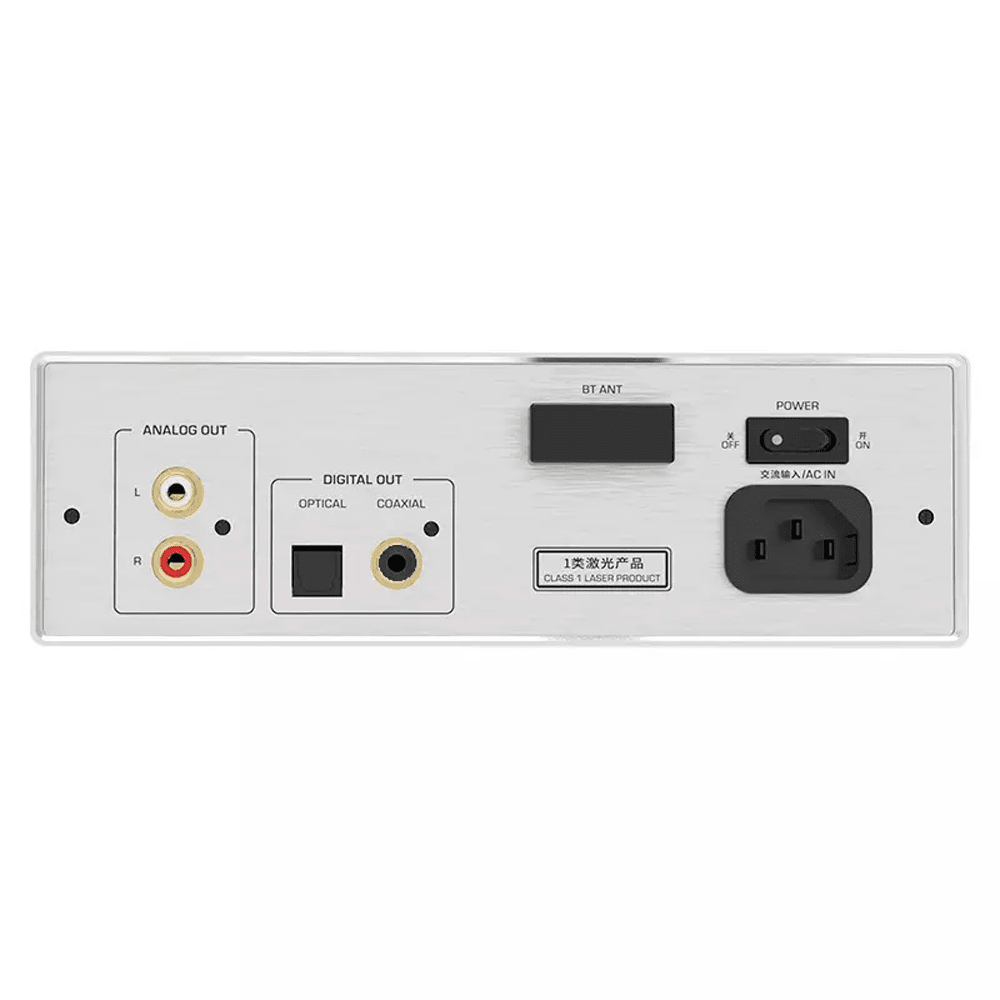

>RCA Line-Out.
>Optical & Coaxial Digital Outputs.
>USB Drive Playback.
Technical Specifications:-

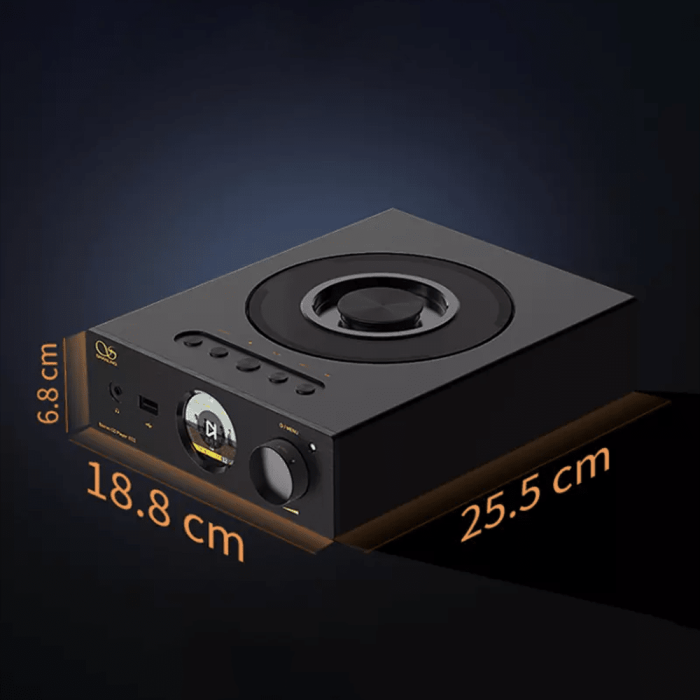

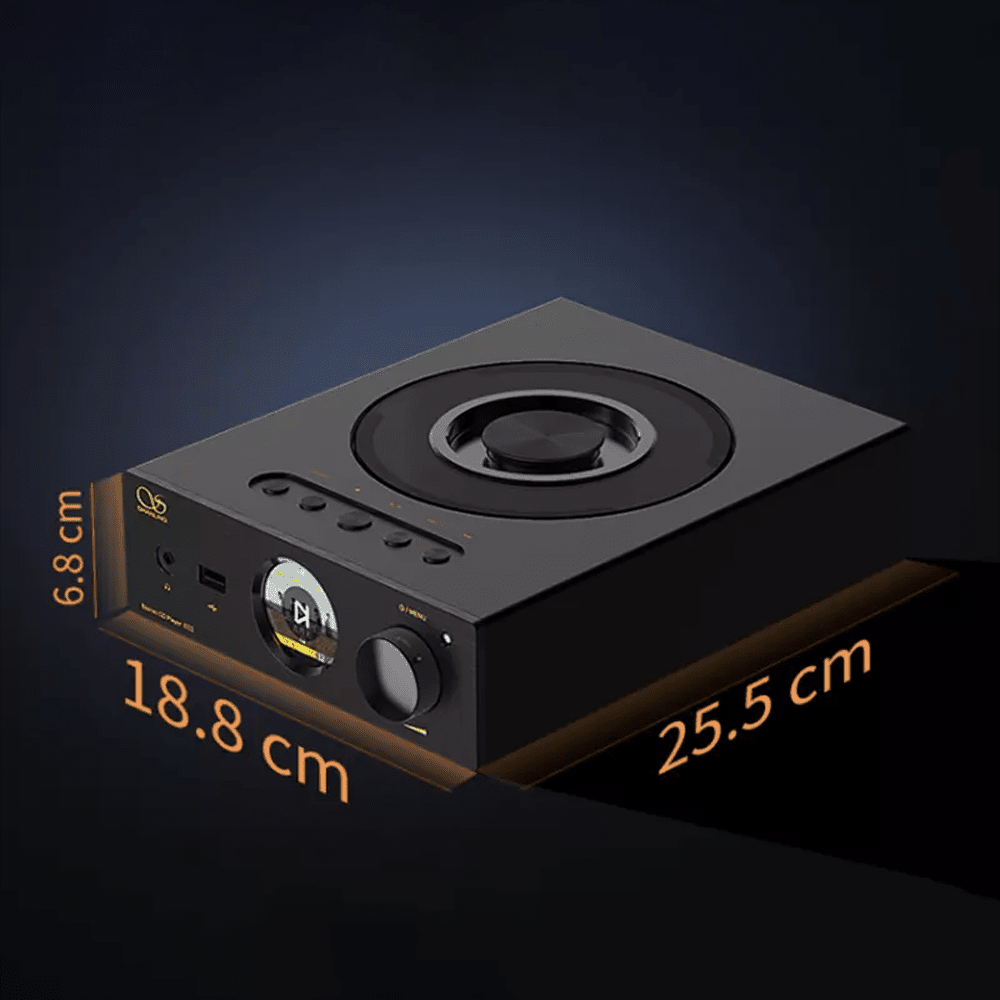

>Dimensions: 25.5×18.8×6.8cm.
>Weight: 2.4Kg.
>Power Drain: 15W.
RCA Output Specifications:-
>Output Level: 2.3V.
>Frequency Response: 20Hz-40kHz.
>SNR: 116dB.
>Dynamic Range: 116dB.
>Distortion: <0.001%.
Headphone Output:-
>Output Power: 20mW(low gain), 70mW(high gain) @32Ω.
>Frequency Response: 20Hz-40kHz.
>SNR: 114dB.
>DNR: 116dB.
>THD+N: 0.0015%.
>Channel Separation: 65dB@32Ω.
>Output Impedance: 0.4Ω.
—SpecificationsSplit—

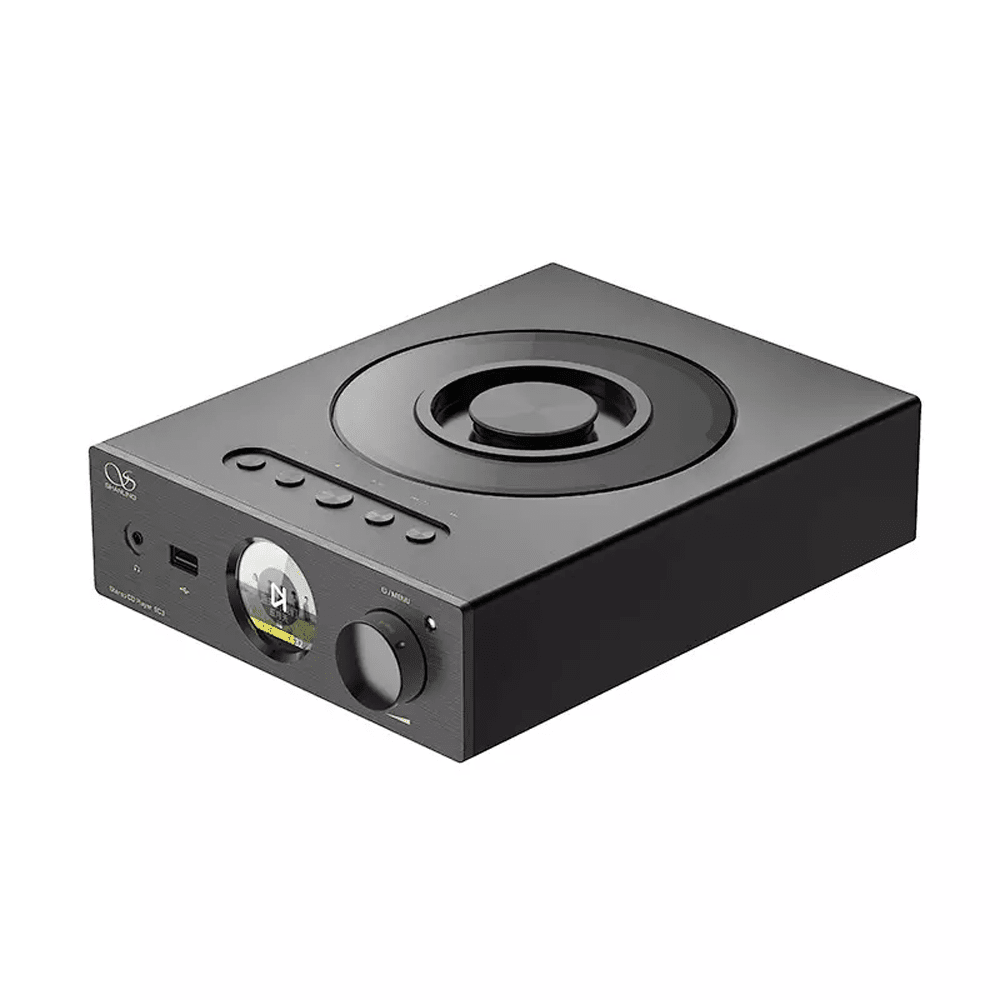

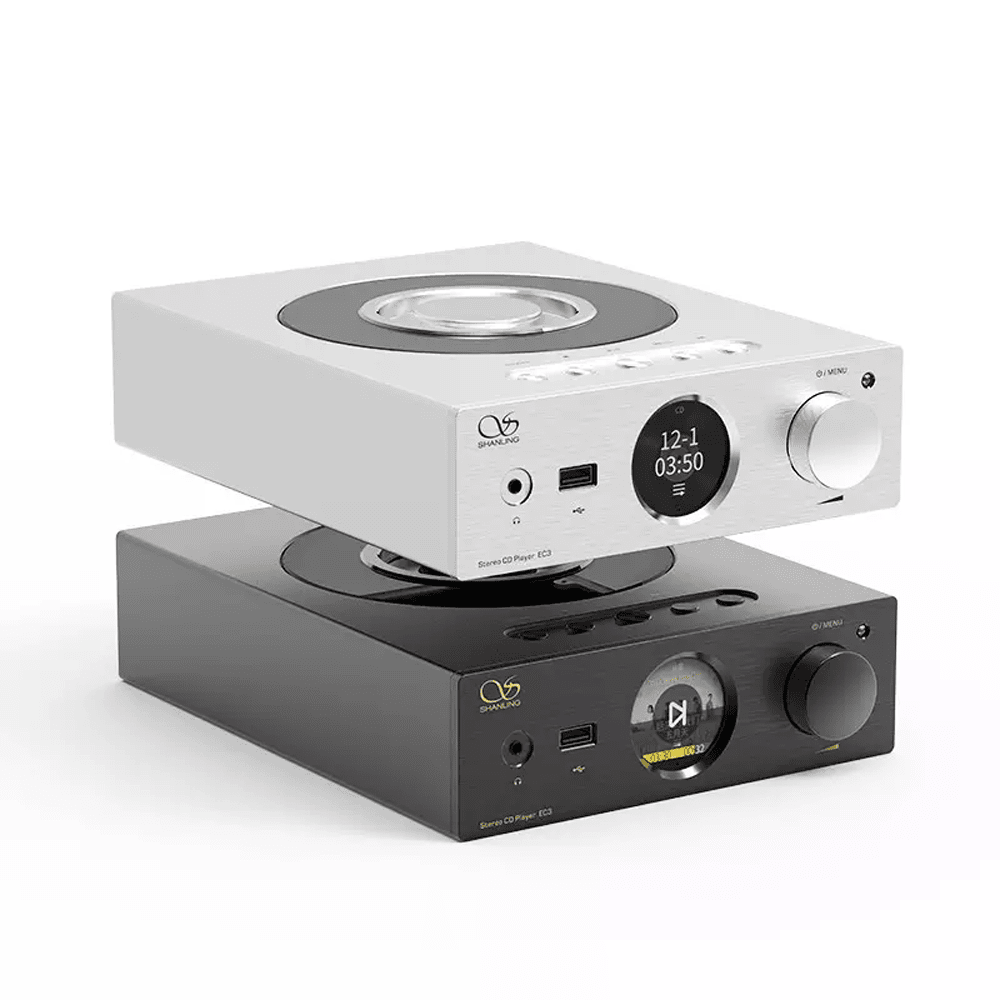

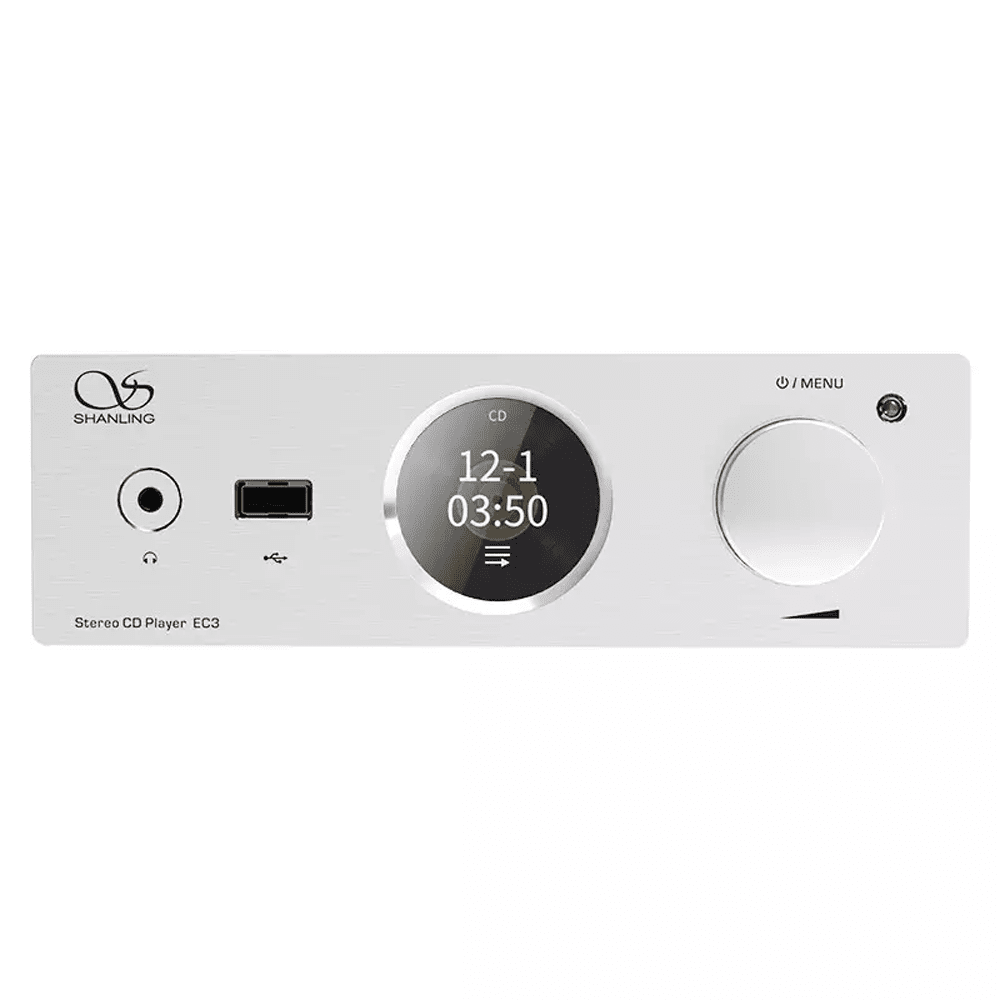

Shanling EC3 is a brand new high-quality premium CD player with a top-loading Philips CD80 Drive and Sanyo HD850 laser head. Equipped with the HiFi ES9219C high-performance DAC chipset from ESS Sabre Technologies and LTA8092 OP-AMP, the EC3 can serve as a complete setup for your high-resolution music enjoyment. It also supports music playback via USB Drives!!
Premium Philips CD Drive:-
Shanling has equipped the EC3 with a high-performance Philips CD80 CD drive and premium Sanya HD850 Laser Head. It enables stable and error-free reading of CDs with good accuracy and low issues in the output signal. EC3 promises quality sound performance!!
High-Fidelity ESS Sabre DAC Chipset:-
Shanling EC3 adopts a high-performance premium DAC chipset from ESS Sabre Technologies. It houses an ES9219C 32-Bit DAC chipset that provides smooth details and noise-free clean background in the output signal. While using USB Drive for playback, EC3 supports high-resolution 32-Bit/384kHz PCM audio signals.
High-Performance LTA Op-AMP Chipset:-
Further enhancing the decoded signal from the ESS Sabre DAC chipset, Shanling has equipped the EC3 with a high-performance LTA8092 OP-AMP chipset. It provides clean and powerful output via a headphone output and the RCA line-out.
Bluetooth & USB Playback Functionality:-
Shanling EC3 can act as a full Hi-Res Player with its Bluetooth functionality and USB Drive Playback. It supports Bluetooth V5.0 connectivity for signal input. EC3 also supports music playback from a USB drive through a dedicated USB slot on the front.
Custom-Built Software:-
Shanling has developed a custom software system for the EC3. With the help of the Ingenic X2000 Platform and a 1.6” colorful IPS display, the device is easy to operate. It can be completely controlled via Eddict Player application.
