t
Type:Â Desktop
t
Inputs:Â Optical (SPDIF)
t
Inputs:Â Coaxial
t
Inputs:Â USB Type-B
t
Outputs:Â RCA
t
Outputs:Â XLR
t
PCM Sampling Frequencies:Â 768 kHz
t
PCM Sampling Frequencies:Â 192 kHz
t
PCM Sampling Frequencies:Â 384 kHz
t
PCM Sampling Frequencies:Â 88.2 kHz
t
PCM Sampling Frequencies:Â 44.1 kHz
t
PCM Sampling Frequencies:Â 48 kHz
t
PCM Sampling Frequencies:Â 176.4 kHz
t
PCM Sampling Frequencies:Â 705.6 kHz
t
PCM Sampling Frequencies:Â 352.8 kHz
t
PCM Sampling Frequencies:Â 96 kHz
t
PCM Word Length:Â 32-bit
t
DSD Sampling Frequencies:Â 5.6448 MHz (DSD128)
t
DSD Sampling Frequencies:Â 22.5792 MHz (DSD512)
t
DSD Sampling Frequencies:Â 11.2896 MHz (DSD256)
t
DSD Sampling Frequencies:Â 2.8224 MHz (DSD64)
t
Model Number:Â X-Sabre Pro
t
D/A Converter:Â ESS9038PRO
t
WIFI:Â No
t
Bluetooth:Â No
t
Brand Name:Â MATRIX
t
Material:Â Aluminum
—SpecificationsSplit—

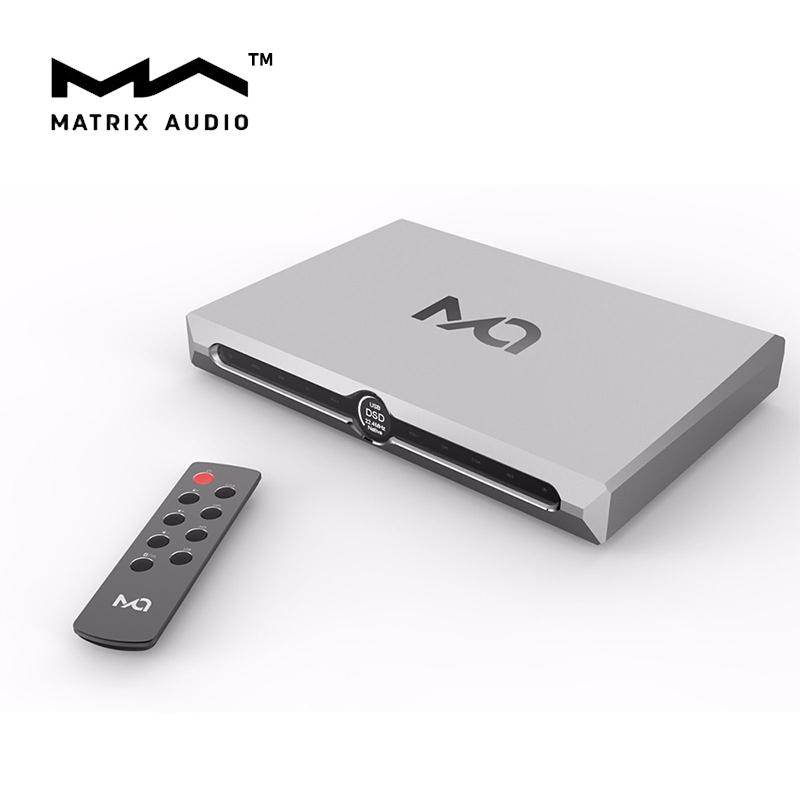

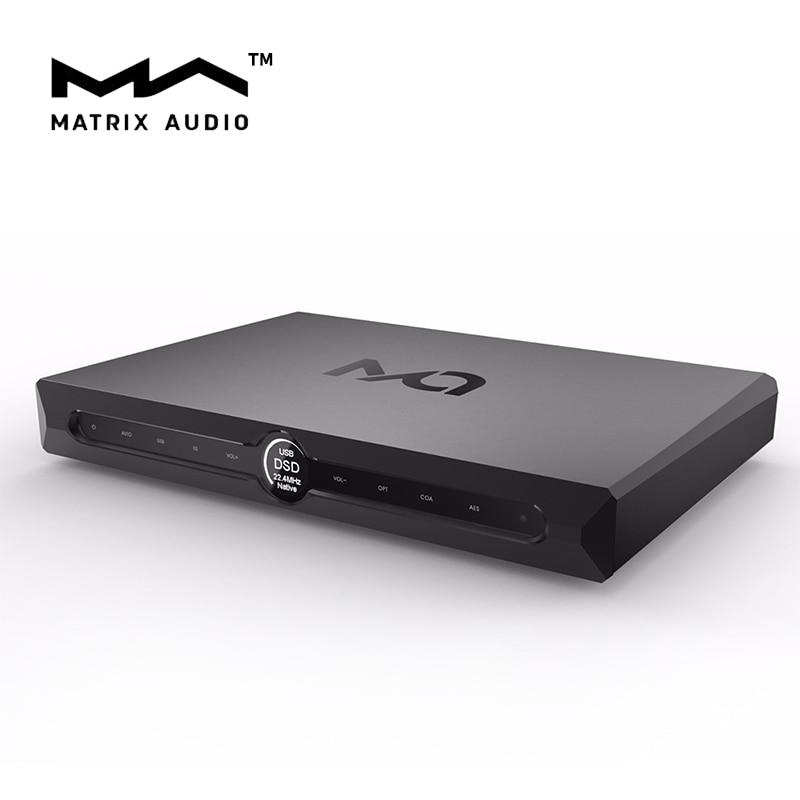

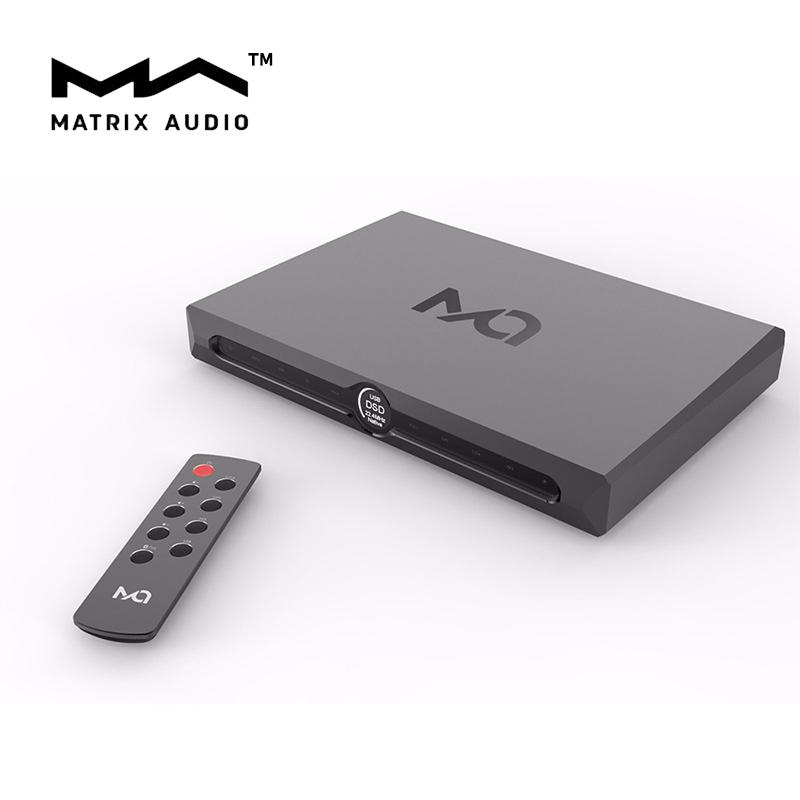

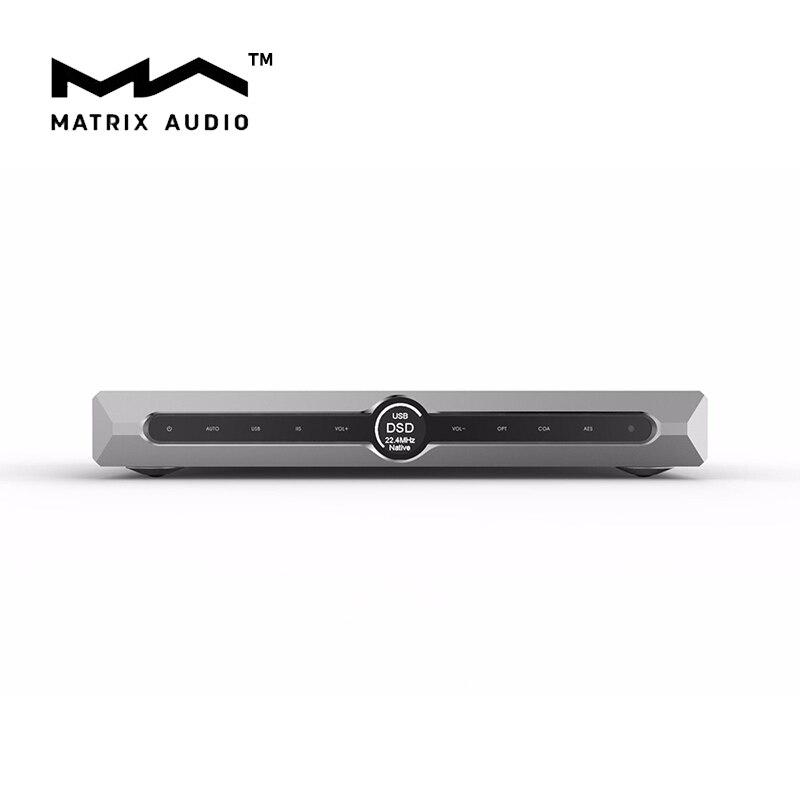

MATRIX X-SABRE Pro MQA XSP Master Digital Audio Hifi Music DAC DSD Decorder
Â
Â
Product description:
Matrix Audio in partnership with MQA Ltd. created the MQA Supported X-SABRE PRO audio DAC to let you experience the abundant music details as the artists’ recording room. X-SABRE Pro(MQA) is a MQA full decoder DAC which can fully decode the original MQA files without any assistance from the third party player software (MQA Core Decode).
Powerful Hardware Platform
X-SABRE PRO (MQA) used the ES9038PRO advanced 8-channel D/A chip, and its inner DSP unit and artificial circuit have the high performance and better user experience. The new generation XMOS XU216 USB asynchronous transfer interface and new AK4118 S/PDIF receiver chip, with powerful computing performance and multi-channel processing performance, make X-SABRE Pro (MQA) has excellent digital audio conversion capability.
IIS Port

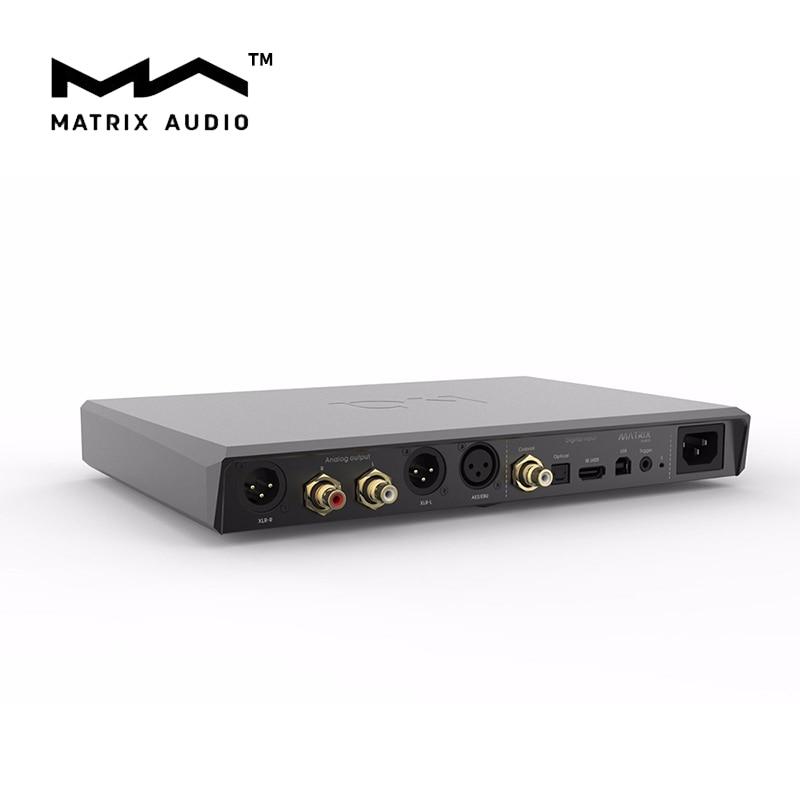

X-SABRE Pro (MQA) is equipped with the most complete input ports of this series, in addition to optical, coaxial, AES/EBU, USB ports, we even added a IISmiddotLVDS input via a HDMI connector to differential transmit IIS signal, maximize the transmission performance of the IIS port, to make the data from the short-distance transmission between the chips into high-speed interconnection between the devices, get rid of the USB transmission or S/PDIF transmission re-encoding, and let the original digital audio stream directly into the D/A chip.
More Sampling Rate Supported
X-SABRE PRO(MQA) can support the Master Quality Authenticated coding technology developed by UK MQA Limited which can decode the MQA audio stream up to 24 Bit 384kHz. When X-SABRE Pro’s display is showing
