Type: Desktop
t
Inputs: USB Type-B
t
Inputs: Optical (SPDIF)
t
Inputs: Coaxial
t
Outputs: RCA
t
Outputs: XLR
t
PCM Sampling Frequencies: 44.1 kHz
t
PCM Sampling Frequencies: 48 kHz
t
PCM Sampling Frequencies: 88.2 kHz
t
PCM Sampling Frequencies: 96 kHz
t
PCM Sampling Frequencies: 176.4 kHz
t
PCM Sampling Frequencies: 192 kHz
t
PCM Sampling Frequencies: 352.8 kHz
t
PCM Sampling Frequencies: 384 kHz
t
PCM Sampling Frequencies: 705.6 kHz
t
PCM Sampling Frequencies: 768 kHz
t
PCM Word Length: 16-bit
t
PCM Word Length: 24-bit
t
PCM Word Length: 32-bit
t
DSD Sampling Frequencies: 2.8224 MHz (DSD64)
t
DSD Sampling Frequencies: 5.6448 MHz (DSD128)
t
DSD Sampling Frequencies: 11.2896 MHz (DSD256)
t
DSD Sampling Frequencies: 22.5792 MHz (DSD512)
t
Model Number: element M
t
D/A Converter: ES9028Pro
t
WIFI: Yes
t
Bluetooth: No
t
Dimensions (W x H x D): 275x281x60mm
t
Brand Name: MATRIX
t
Material: Aluminum
—SpecificationsSplit—
Speciflcations

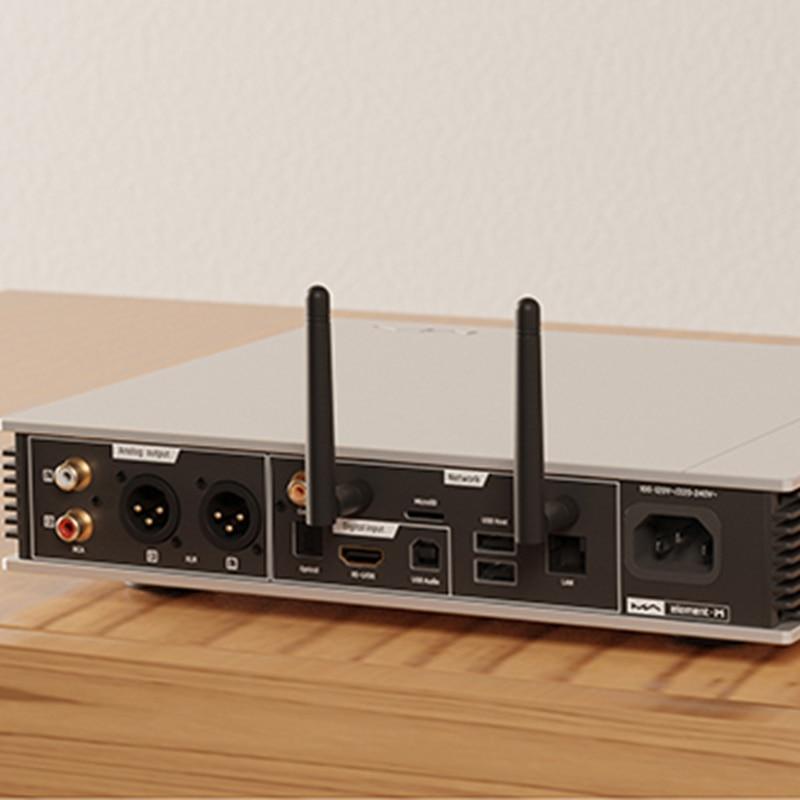

Digital Input
COAXIAL & OPTICAL PCM 16-24Bit /44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz DSD 2.8MHz (DoP) IIS LVDS PCM 16-32Bit /44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz、705.6kHz、768kHz DSD 2.8MHz、5.6MHz、11.2MHz (DoP) DSD 2.8MHz、5.6MHz、11.2MHz、22.4MHz、45MHz (Native) USB Audio PCM 16-24Bit /44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz、705.6kHz、768kHz DSD 2.8MHz、5.6MHz、11.2MHz (DoP) DSD 2.8MHz、5.6MHz、11.2MHz、22.4MHz (Native)
Line Output
XLR SNR: >-128dB THD+N: <0.00022%@1k，<0.00025%@20Hz-20kHz Frequency Response: 20Hz-20kHz ±0.05 -3dB@150kHz Channel Crosstalk: >-145dB Amplitude: 4.0VRMS@0dB RCA SNR: >-125dB THD+N: <0.00028%@1k，<0.00045%@20Hz-20kHz Frequency Response: 20Hz-20kHz ±0.05 -3dB@120kHz Channel Crosstalk: >-128dB Amplitude: 2.0VRMS@0dB
Headphone Output
Single Ended SNR: >-111dB@2VRMS THD+N: <0.0006%@1VRMS Frequency Response: 20Hz-20kHz ±0.1 -3dB@47kHz Output Impedance: <0.6Ω Output Power: 1320mW@33Ω，248mW@300Ω，124mW@600Ω，1%THD Gain: +12dB
Network
LAN：10BASE-T/100BASE-TX WLAN：2.4GHz/5GHz, IEEE 802.11 a/b/g/n/ac standard
MA player
Format Supported： MP3 、WMA 、WAV 、AIF、AIFC、AIFF、AAC、FLAC、OGG、APE、ALAC、M4A、DSF、DFF PCM Sampling Rate： PCM 16/24/32Bit 44.1kHz、48kHz、88.2kHz、96kHz、176.4kHz、192kHz、352.8kHz、384kHz、705.6kHz、768kHz DSD Sampling Rate： DSD 2.8MHz、5.6MHz、11.2MHz、22.4MHz
USB Storage Device
element M can use the devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT, and NTFS file formats, but is not guaranteed to be compatible with all storage devices or memory cards.
Power
Power Voltage： 230V position is fit for AC220V-240V 50/60Hz 115V position is fit for AC100V-120V 50/60Hz Stand-by Power Consumption <1W Sleep Power Consumption <4W Max Power Consumption <25W
Others
Dimension：275×281×60mm (L×W×H, including protruding parts) Weight：3.7kg Accessories： RM3 remote control Power cable USB cable Wi-Fi antenna x2
Introduction:

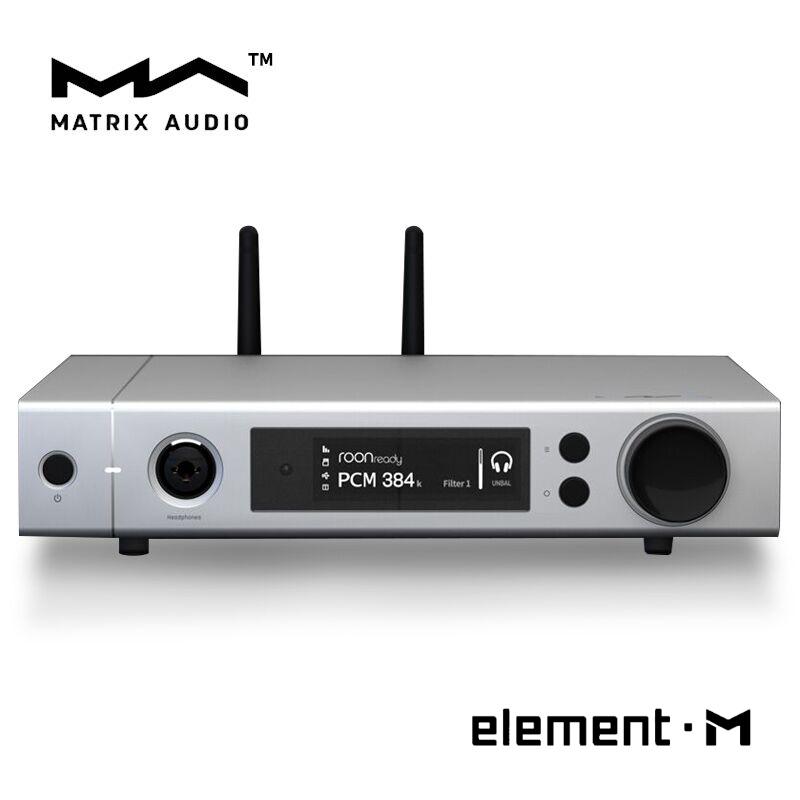

New member of the family
element M is a new member of element family, it continues the design language of concise and steady. We look for a balance between performance, functionality and price on element M, hoping to provide a desktop two-channel stereo simplification solution for mid-range active speaker and headphone users.
MA player

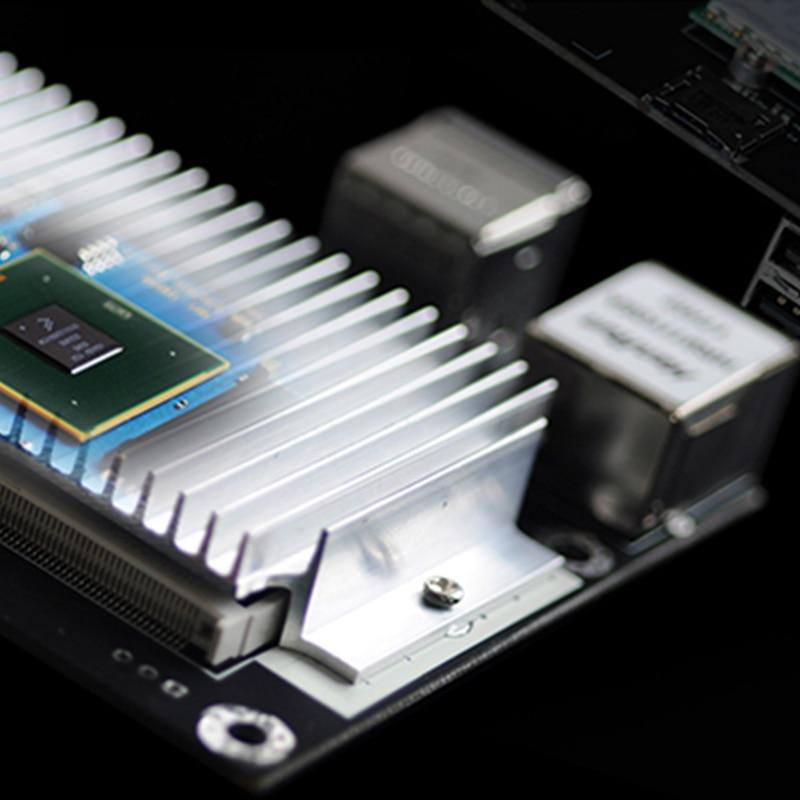

We developed MA player which is a powerful audio playback system based on Freescale quad-core ARM computing platform. It supports all the popular audio formats. Simply connect a USB drive or configure a NAS storage device to browse your music library and enjoy up to 768kHz PCM and 22.4MHz DSD.
MA Remote app
We have developed an Android app for element series products, you can browse and play music from any mobile device connected to the same local area network (LAN). We will continue to improve our app and integrate popular streaming service in the app.
AirPlay & DLNA
Listening to network streaming media has become a normal part of life today. The element series also enables you to play music from your smartphone or other mobile devices via AirPlay & DLNA for convenient wireless streaming.
MQA Decoding and Rendering
MQA (Master Quality Authenticated) is an award-winning British technology that delivers the sound of the original master recording. The master MQA file is fully authenticated and is small enough to stream or download. The element series include MQA technology, which enables you to play back MQA audio files and streams, delivering the sound of the original master recording. Visit How it works for more information.
ESS Sabre
element M is positioned as the mid-range of the entire series and is also the most cost-effective product. We use ES9028PRO advanced D/A solution and SiTime low phase noise clock, combine with our development experience with ESS chips, to maximize its potential performance.
High Quality Headphone AMP
We developed a new low-impedance headphone amplifier consisting of discrete components for element M. This headphone amp has a bipolar input stage that effectively rejects common-mode distortion. The output stage is set in a high quiescent current state, giving you an intriguing mellow sound performance.

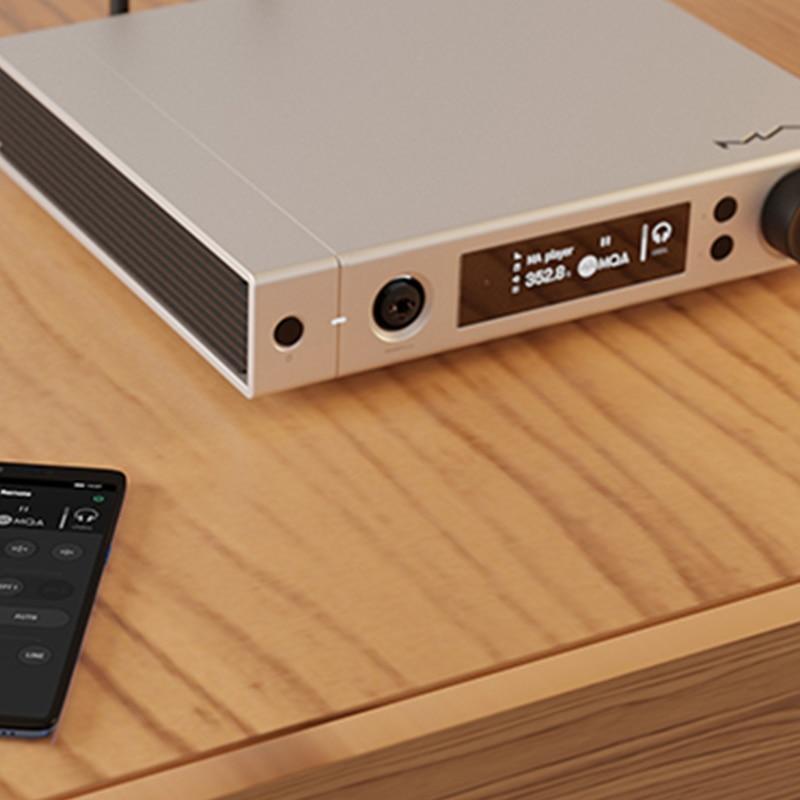

Multiple Control Methods
The RM3 infrared remote control is standard for element series products, we provide 5 different kinds of address code to avoid interference with other audio devices. On the other hand, MA Remote has ‘Virtual Remote Control’ feature, you can proceed all the setting operations of the unit through the app.
Double-shell Structure
Different materials have their own resonant frequency. The element X is designed as double-shell structure. The inner shell uses stamp galvanized steel with multi-strip reinforcing ribs to ensure excellent strength and the external shell is made of 4mm aluminum. The combination of the two metals eliminates the fixed resonant frequency of each material and greatly reduces the negative impact that case resonance can have on the sound quality.
