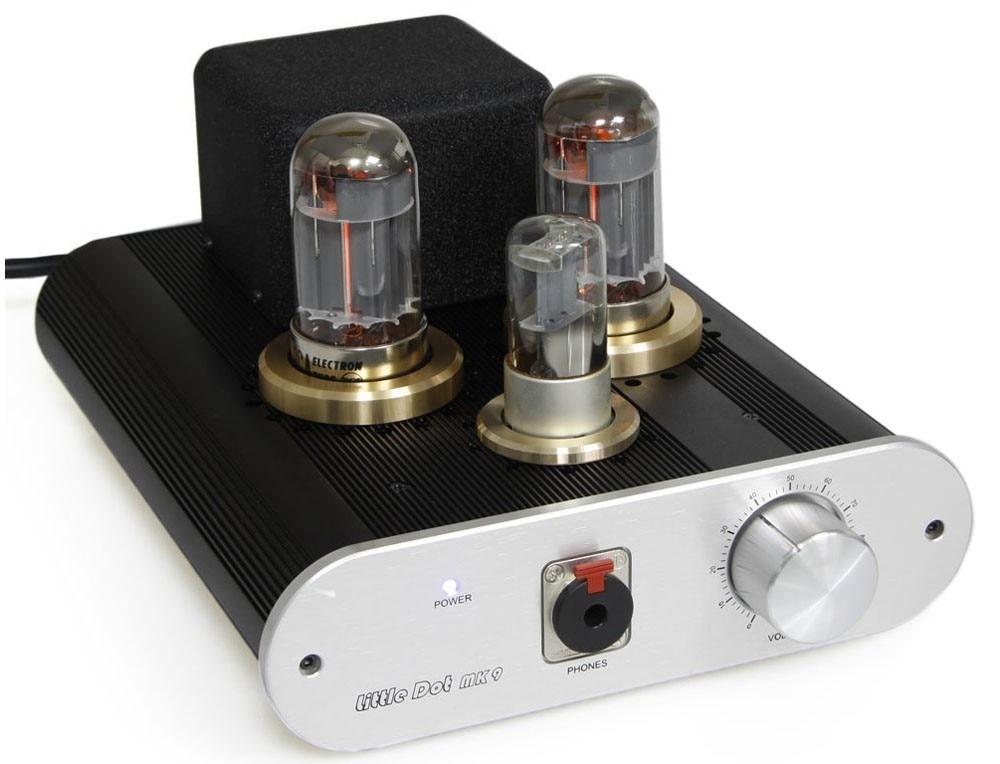

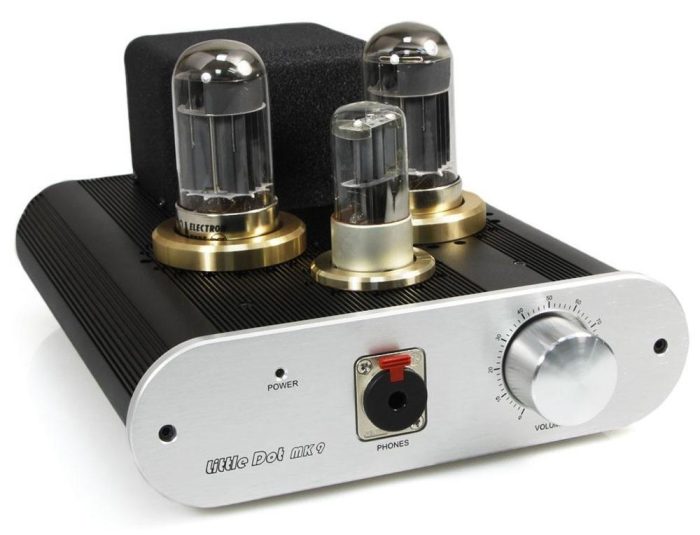

Little Dot MK9 6N9P 6080X2 Tube OCL Tube Headphone Amplifier

t
Brand Name: Little Dot

t
Output Type: LINE OUT (AUDIO OUT)

t
Input Type: LINE IN (AUDIO IN)

t
Built-in Battery: No

t
Recommended Headphone Maximum Impedance: 501-600 Ohm

t
DSD (Direct Stream Digital): No

t
Dimensions (WxHxD): 300*220*150MM

t
PCM: No

t
Bluetooth: Yes

t
Body Material: Metal

t
Model Number: Little Dot MK9

t
Output Power: 350mW

t
Package: Yes

t
Type: Professional Amplifier

t
Channels: 2 (2.0)

t
WIFI: No

—SpecificationsSplit—

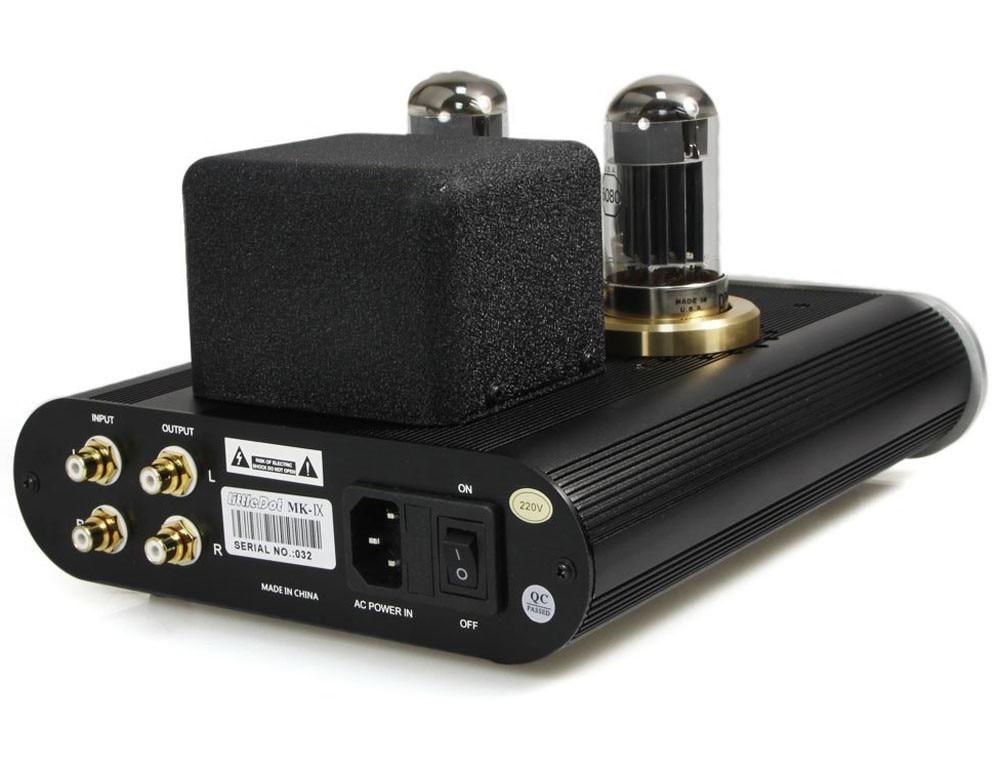

Little Dot MK9 is that uses an electronic tube as a headphone amplifier. It uses 3 tubes (before 6N9P, after class: 6080*2) were used as two stereos left and right channel amplifiers. The input signal is the audio signal from the CD player or decoder, an amplified output signal used to drive headphones. The machine also has a road as an RCA signal output by the first stage, supply another amplifier as before use.

Features:

MK9 uses tube amplification circuit in the electronic is relatively rare in the SEPP single-ended push-pull, OCL no output capacitor direct coupled power amplifier circuit.

The circuit output dynamic than the cathode output generally large (undistorted swing: 30Vp-p), due to the cancellation of the output capacitance, low-frequency response can dive deeper, more solid, soprano Alto can be more transparent.

But in order to make the circuit in the case of direct-coupled DC level is zero, need symmetrical supply complex. In order to stabilize the operation of the circuit, and the machine also adopts a
