Features:-
>Premium ES9281C Pro DAC chip.
>Dual Crystal Osciallators.
>Dual Operational Amplifiers(OPAMPs).
>High-resolution Audio Signal Decoding(Supports DSD128).
>MQA Decoding Support.
>Independent Volume Control.
>RGB Sampling Rate Indicator.
>3-Level Gain Mode(Low, Medium, High).
>4.4mm Balanced/3.5mm Single-Ended Headphone Output.
>Magnetic Absorption Design.
>Built-In Independent Battery.
>Aluminium Alloy CNC Body.
Technical Parameters:-
>OPAMP: RT6863Cx2.
>Power Connector: Type-C.
>Battery Size: 1300mAh.
>Charging Time: Approx 2.5 hours.
>Battery Life: up to 6 hours(Balanced), Up to 8 hours(single-ended).
>Maximum Output Power(3.5mm): 125mW+125mW(32Ω).
>Maximum Output Power(4.4mm): 210mW+210mW(32Ω).
>Frequency Response Range: 20Hz-80kHz(±0.6dB).
>THD+N(3.5mm): 0.0006%.
>THD+N(4.4mm): 0.0004%.
>Crosstalk(3.5mm): 79dB.
>Crosstalk(4.4mm): 108dB.
>SNR: 116dB.

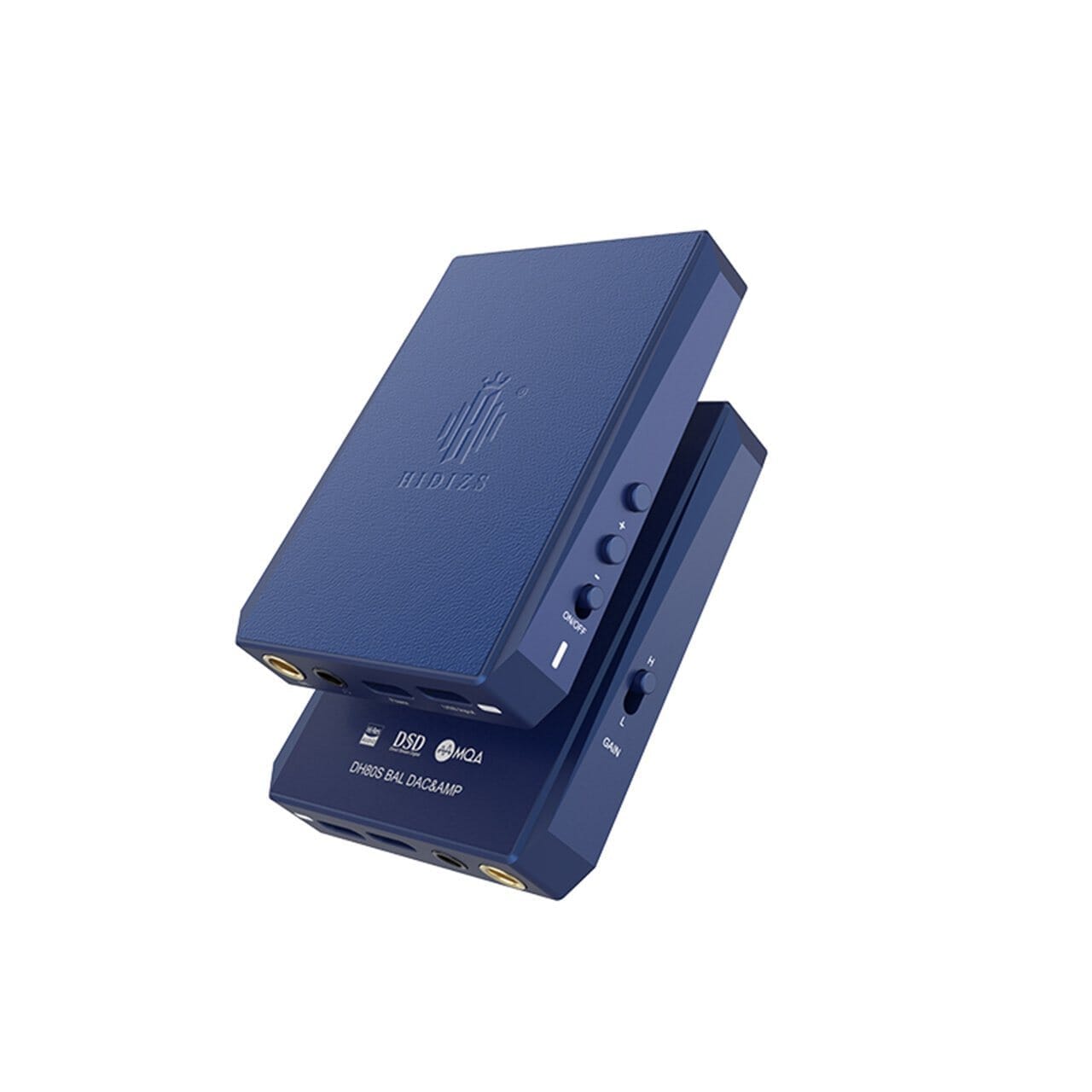

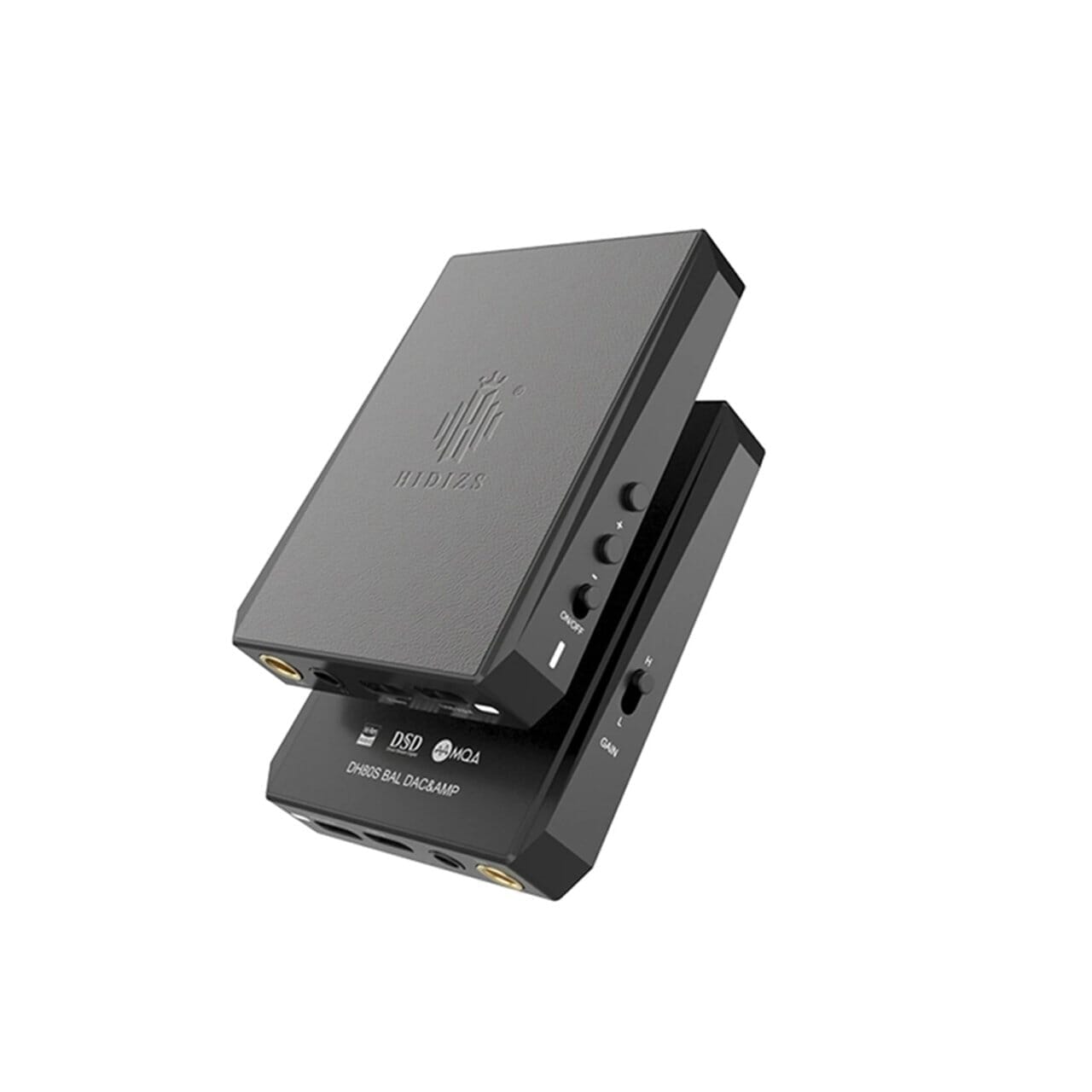

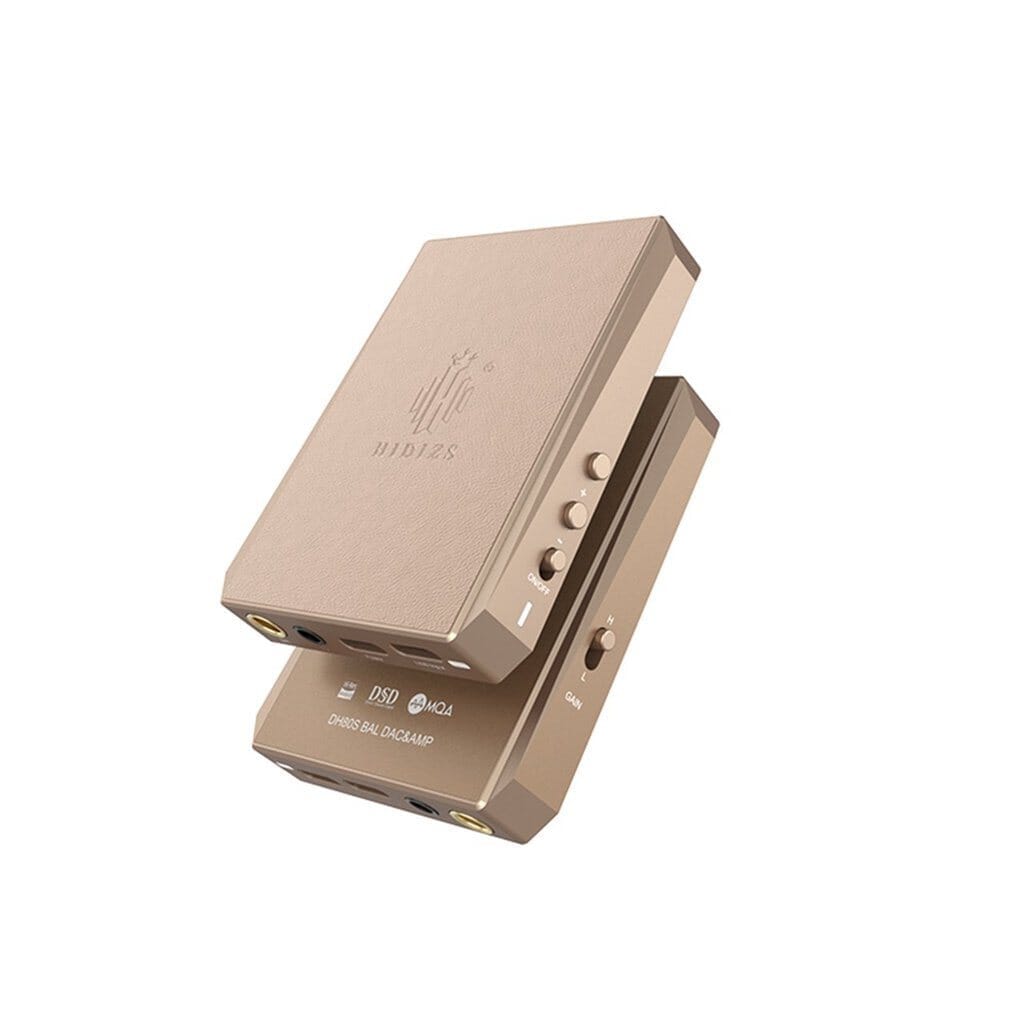

Hidizs has introduced two latest portable USB DAC/AMP’s, the DH80 and DH80S. Both the devices feature an advanced ES9281C Pro DAC chip along with a HiFi audio chipset for high-resolution performance. They support Hi-res signal decoding with Full 8X MQA support. Enjoy a new level of high-resolution clarity while enjoying music and movies on the go.
HiFi Audio DAC Chip:-
Hidizs has equipped the DH80 and DH80S with the latest generation ES9281C DAC chip from Sabre Technologies. It offers brilliant performance with superb crisp detailing, ultra-low distortion, and low power consumption. It provides high-resolution audio decoding with PCM support up to 32-Bit/384kHz and DSD up to DSD128 natively.
Full 8X MQA Decoding:-
Both the Hidizs DH80 and DH80S support the latest MQA decoding with full 8x unfolding. Experience outstanding acoustic performance with master quality audio files and enjoy the true signature of your music as the artist intended it to be. Source device should be loaded with MQA supported software such as UAPP, Tidal, and more.
HiFi Audio Chipset For HiFi Performance:-
The advanced audio decoding chip is paired with dual independent RT6863C OPAMPs, dual independent Crystal oscillators, high-performance Panasonic capacitors, and many more premium components to ensure a HiFi quality audio performance.
Fully Balanced 4.4mm Headphone Out With Independent Volume and 3-Level Gain Switch:-
Both the Hidizs DH80/DH80S features a fully balanced 4.4mm output port along with a single-ended 3.5mm headphone output. They have independent volume controls with a 3-level gain switch. The volume knob provides 30-level volume control allowing for precise volume control. Both the DH80 and DH80S provide good compatibility with HiFi headphones with an output power of up to 210mW+210mW @ 32Ω through the balanced 4.4mm output port.

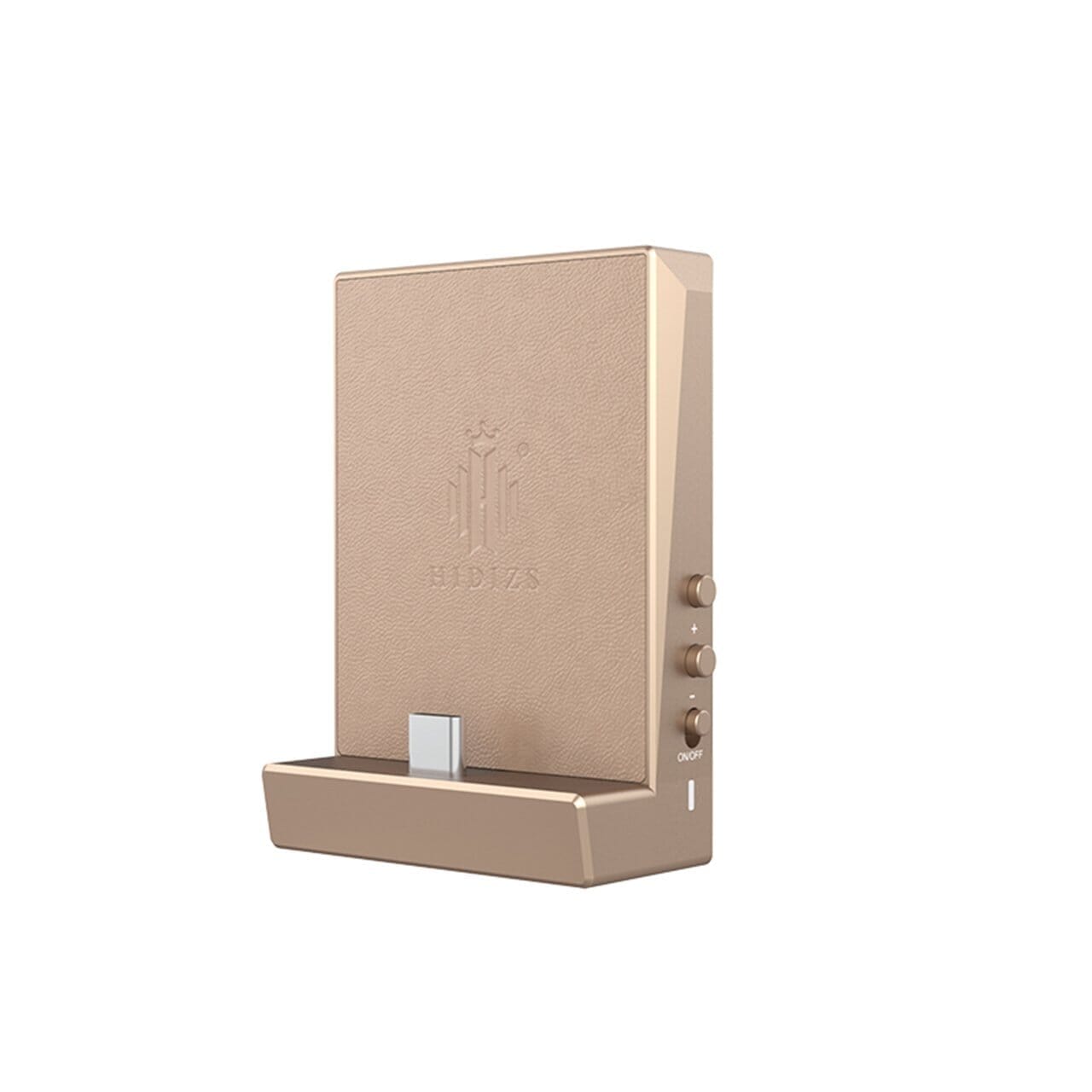

Magnetic Absorption Design:-
Hidizs has equipped the DH80/DH80S with a high-quality magnet that allows secure fix with a seamless connection with the connected devices(smartphones/Hi-res players).
Multiple Platform Support:-
The Hidizs DH80/DH80S are compatible with different devices such as Android, iOS devices, or MAC and Windows systems. Please note that the lightning OTG cable to connect with iOS devices is not included in the package and has to be purchased separately.
