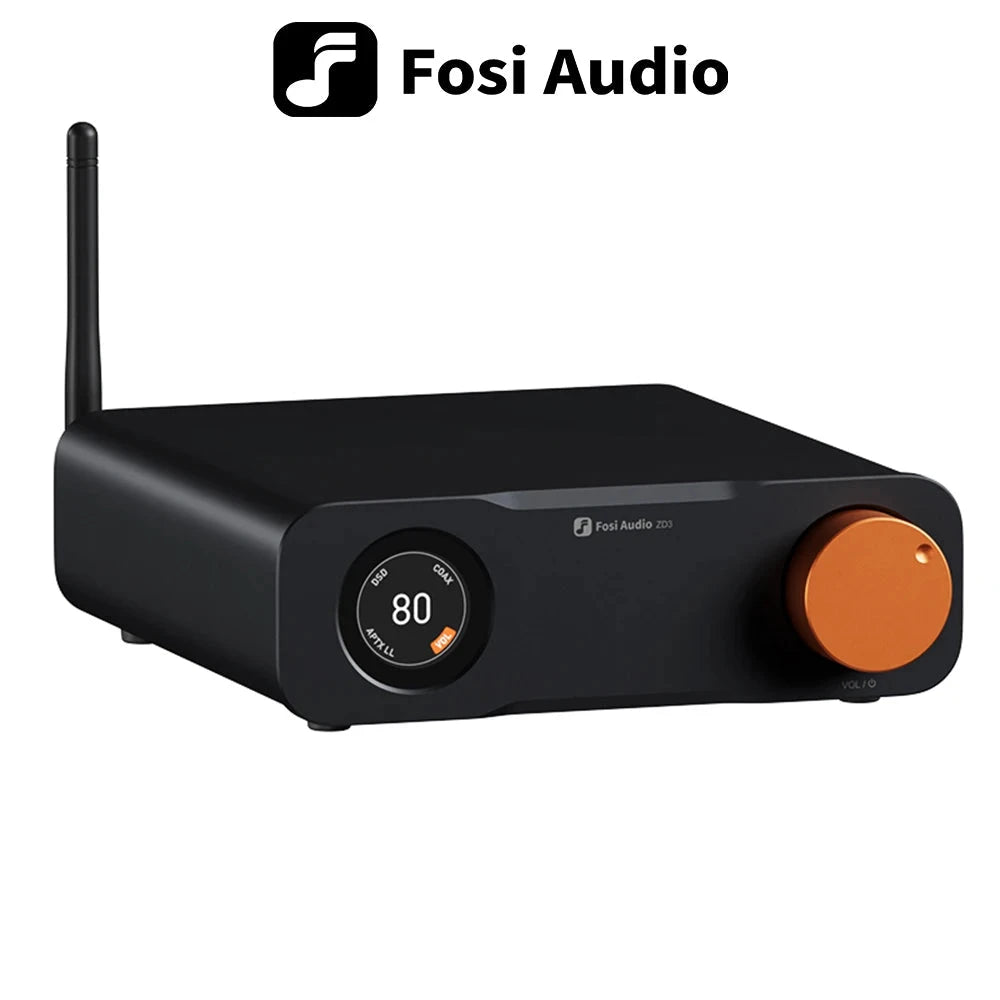

Fosi Audio ZD3 ES9039Q2M Desktop DAC and Preamplifier

Description

Flagship Desktop DAC: A fully balanced digital-to-analog converter preamp with multiple inputs and outputs. Fosi Audio’s first DAC to support HDMI ARC input and comes equipped with a high-performance ES9039Q2M chip to deliver rich and superior sound

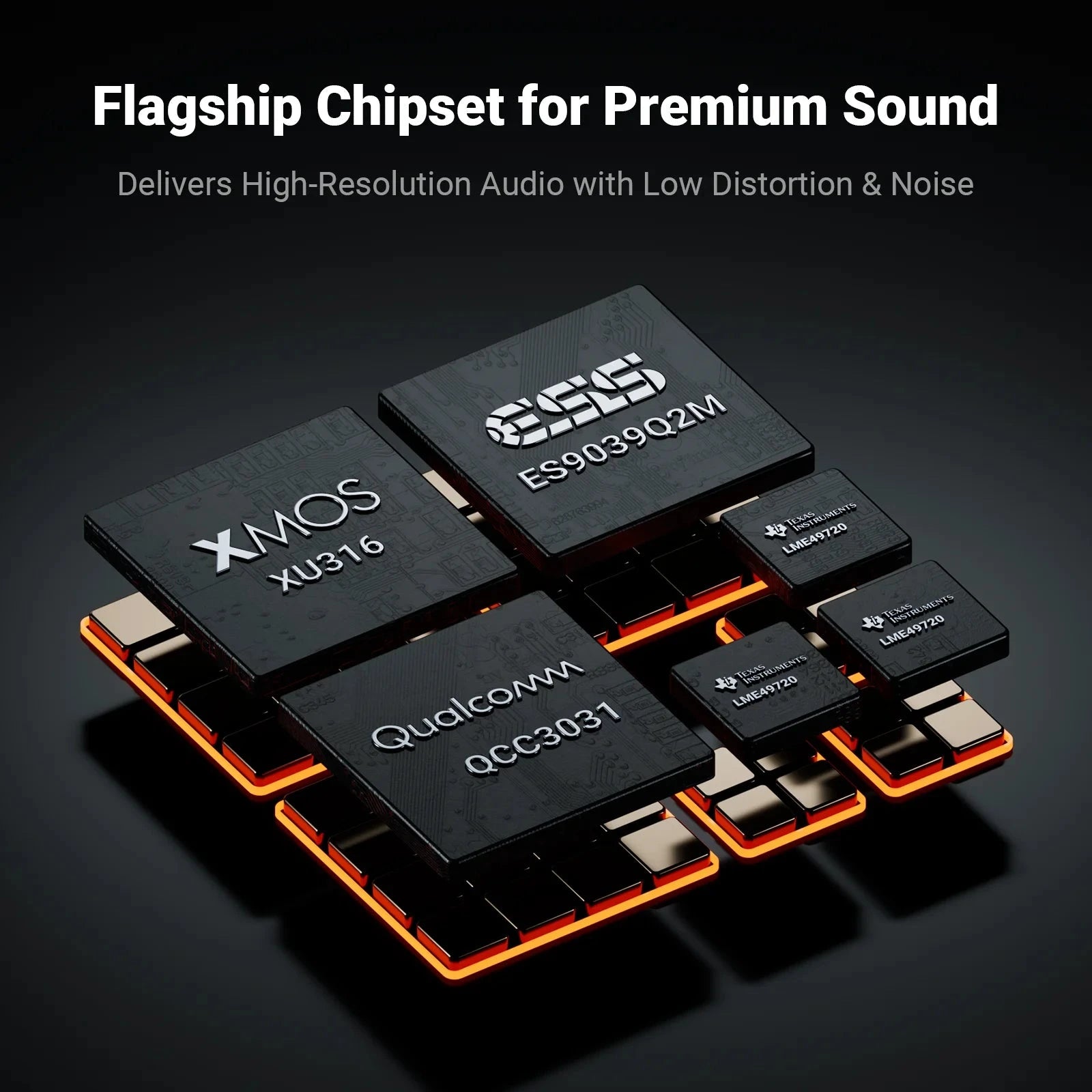

Premium Chipset: The ZD3 features the chipset consisting of XMOS XU316+ES9039Q2M+QCC3031+LME49720. It supports high audio resolution, with a maximum capability of DSD512 and PCM 32bit/768kHz sampling rates, providing unparalleled clarity and depth.

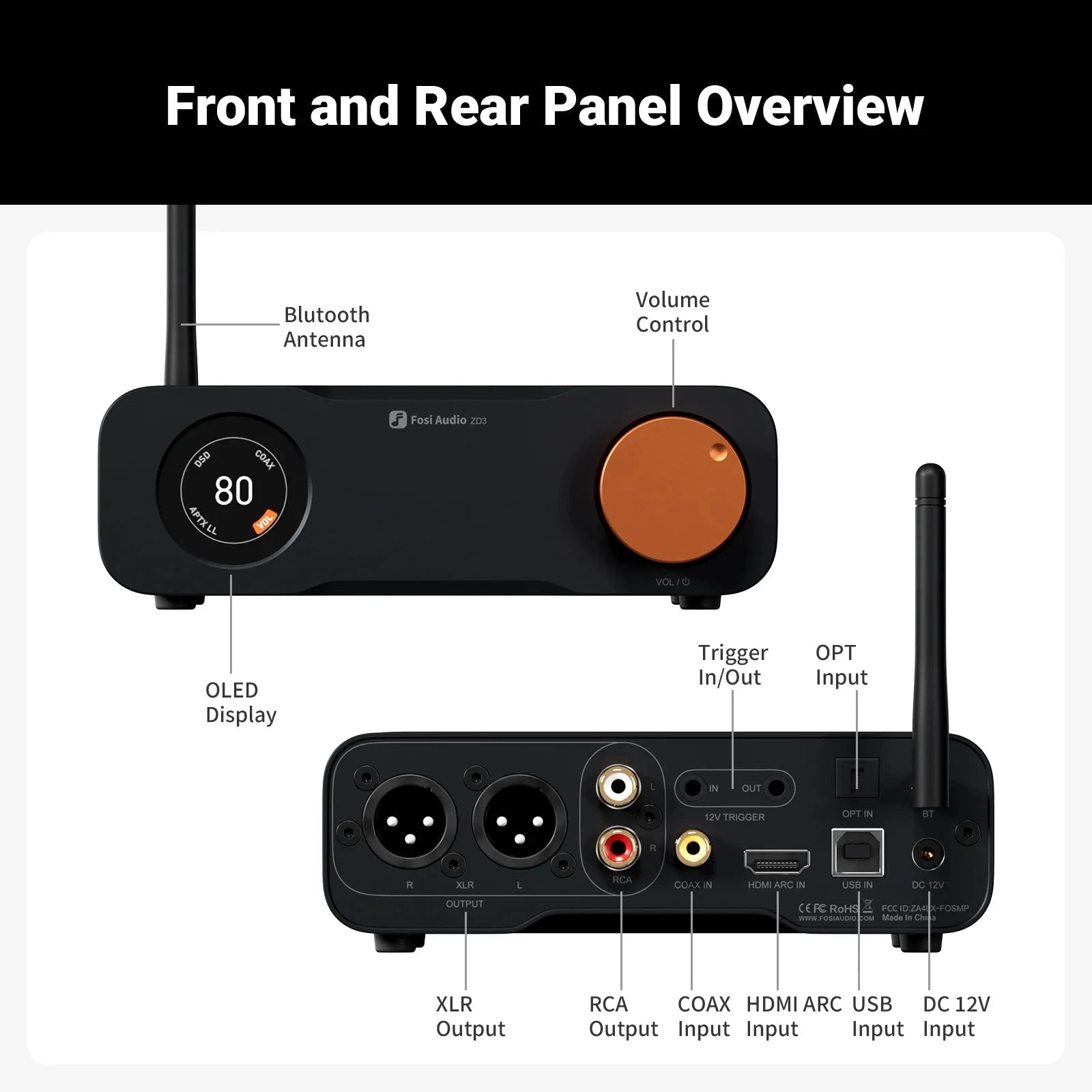

Versatile & Flexible: The ZD3 offers comprehensive connectivity, supporting inputs like Bluetooth, USB, OPT, COAX, HDMI ARC, and balanced XLR/RCA outputs. This flexibility allows you to customize your audio system to suit various setups and scenarios.

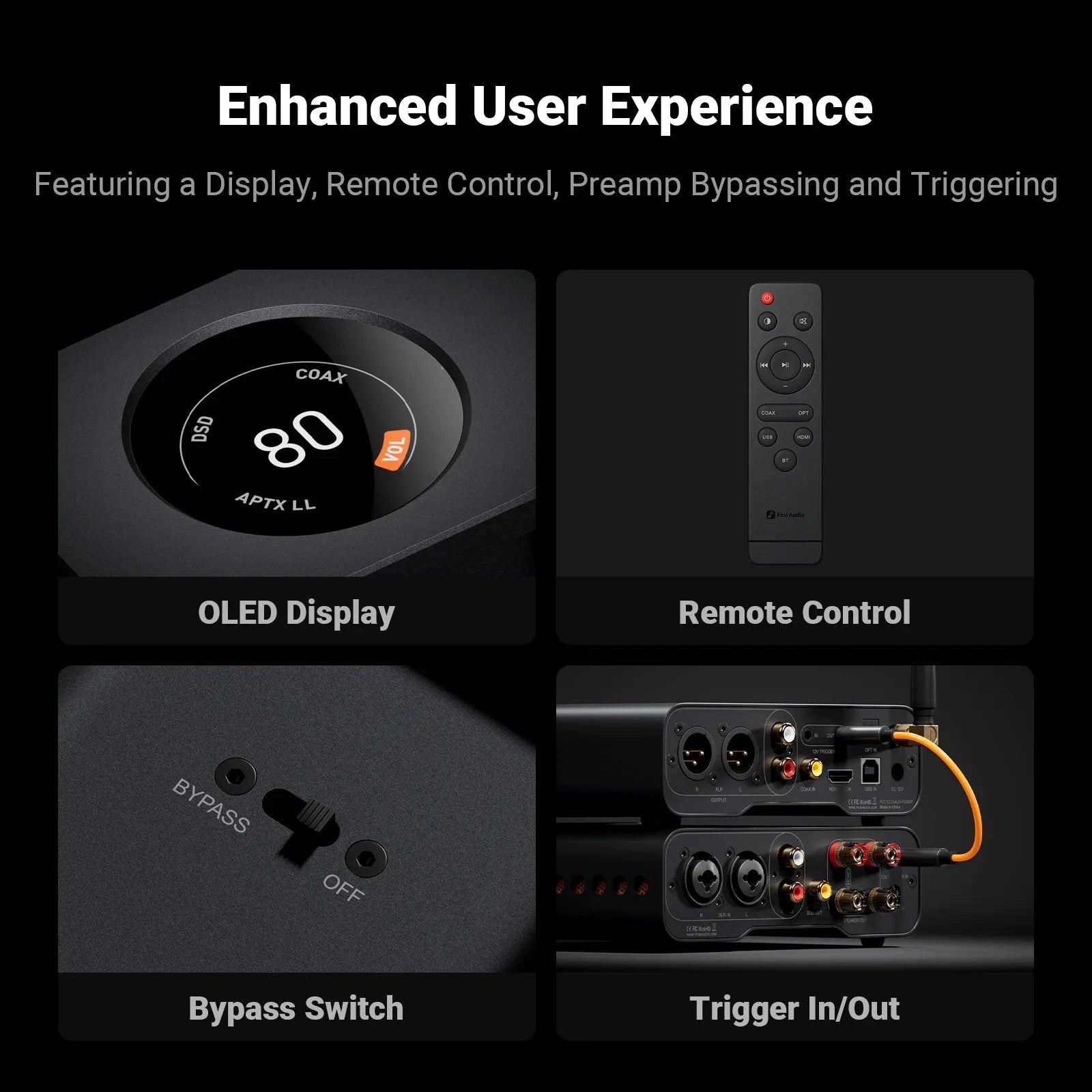

Ease of Use: The ZD3 adopts a 1.5-inch OLED display, remote control, preamp bypass switch, and 12V trigger in/out interfaces, allowing synchronized power on/off with other home audio devices, all for a good user experience.

Family Design: Featuring the same design language as the ZA3 amplifier: compact and exquisite appearance and audiophile-grade components for high performance and excellent sound quality. Pair it with the ZA3 to create a robust home audio system.

Feature:-

Chipset: XMOS XU316+ESS 9039Q2M+QCC3031+LME49720

Maximum Sampling Rate

USB:PCM 32bit/768kHz; DSD512

OPT/COA: PCM 24bit/192kHz

HDMI: PCM 24bit/192kHz;

Bluetooth: PCM 24bit/48kHz;

Output Level: XLR: 5Vrms/RCA: 2.5Vrms

Input: USB, HDMI (ARC), Coaxial, Optical, Bluetooth

Output: XLR, RCA

SNR: 126dB

THD+N: <0.00008%

Dynamic Range: 126dB

Noise Floor: ≤2μV

Frequency Response: 20Hz-20kHz (±0.1dB)

Bluetooth Version: 5.0

Bluetooth Connection Distance: ≥13m

Bluetooth Transmission Audio Format: SBC, AAC, aptX, aptX HD

Input Voltage and Current: DC 12V 1.5A

USB Compatible Devices:

Windows 7, 8, 8.1, 10, 11 (Some require drivers; please refer to subsequent instructions for details)
Mac OS X, Linux (No driver required)

Package include

t
tZD3*1
t
t
tUSB-A to USB-B Cable*1
t
t
t12V Power Adapter*1
t
t
tBluetooth Antenna*1
t
t
t12V Trigger Cable*1
t
t
tInfrared Remote*1
t
t
tUser Manual*1
