Fosi Audio BT20A Pro TPA3255 Bluetooth Sound Power Amplifier

Fosi Audio BT20A Pro TPA3255 Bluetooth Sound Power Amplifier 300W x2 Mini HiFi Stereo Class D Amp Bass Treble For Home Theater

Highlight:

1. Bass & Treble Control with Midpoint Positioning

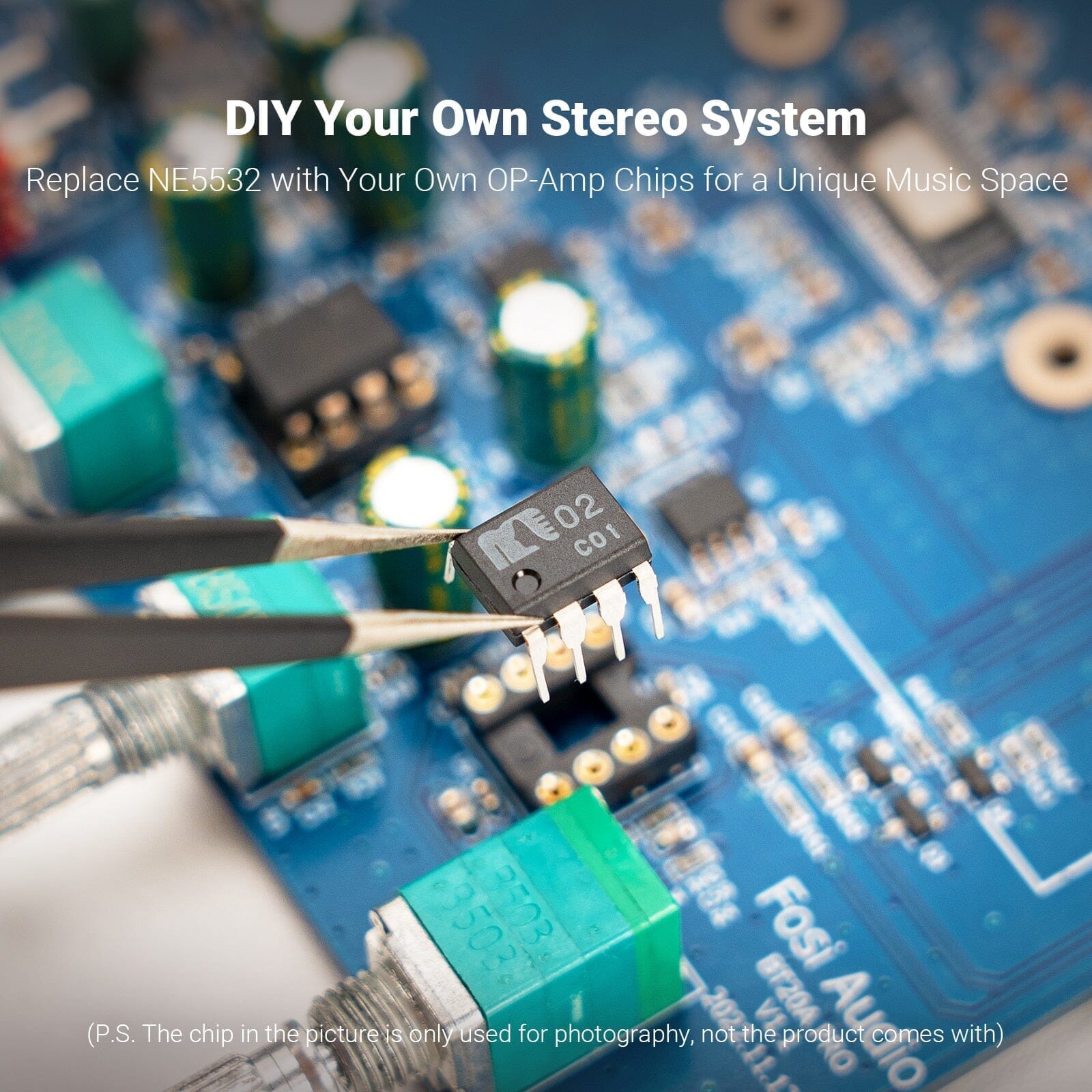

2. Replaceable Op-Amp Chips: MUSES02, OPA2134PA, OPA2604AP

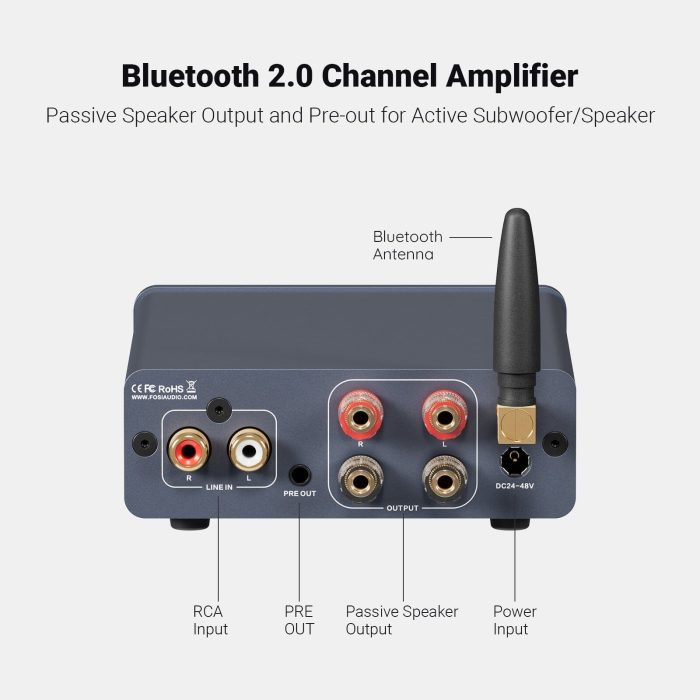

3. Passive Speakers + Pre-out

4. Bluetooth Pairing Cleared

5. Replaceable Knobs: ORANGE KNOB, GRAY KNOB,

Features:

t
tAdvanced 2.0CH Bluetooth 5.0 Receiver Amplifier achieves HiFi music quality, the best choice for your home audio entertainment.
t
t
tFosi Audio BT20A Pro is the upgraded version for BT20A. All-NEW Aluminum Appearance. MAX Power Output: 300 Watt x2, Amplifier Chip: TPA3255.
t
t
tBT20A Pro Adopts Texas Instruments TPA3255 high-performance Class-D power amplifier chip. BT20A Pro can drive up to 2 x 300 W into 4-Ω load. In addition to excellent audio performance, TPA3255 achieves both high power efficiency and very low power stage idle losses below 1 W. This is achieved through the use of 60 mΩ MOSFETs and an optimized gate driver scheme that achieves significantly lower idle losses than typical discrete implementations.
t
t
tProfessional wireless amp with subwoofer frequency, master volume/bass/treble control. No pop sound, no audible noise during the connection. Have a good time with Hifi music journey.
t
t
tWe offer 24-month warranty, and friendly customer service!
t

Highlight:

t
tModel: BT20A Pro
t
t
tPower amplifier chip: TPA3255 NE5532
t
t
tDC Input Range: 24-48V
t
t
tTerminating Impedance: 2 Ohm – 8 Ohm
t
t
tMAX Power Output: 300W x 2 (4 ohm/32V Load)
t
t
tTHD ≤ 0.005%
t
t
tFrequency Range: 20Hz – 20kHz (±1.2 dB)
t
t
tSNR ≥ 108dB
t
t
tInput Sensitivity ≤ 775mV
t
t
tInput Mode: Bluetooth & RCA
t
t
tBluetooth version: Bluetooth 5.0 (50Ft without obstruction)
t

Package Include:

*BT20A Pro Bluetooth Amplifier x1

*User Manual x1
