FiiO QX13 Portable Decoding Headphone Power Amplifier ESS 8-Channel DAC ES902 7PRO USB Small Tail Custom HiFi Earphone Decoder
Features:-
>High-End Portable USB DAC/AMP.
>Flagship-grade 8-Channel ES9027Pro DAC Chipset.
>Six High-Precision Ti OPAMPs.
>3rd-Generation XMOS 16-Core XU316 USB Processor.
>High-Precision 10-Band PEQ Support.
>Lightweight and Durable Carbon Fiber Body.

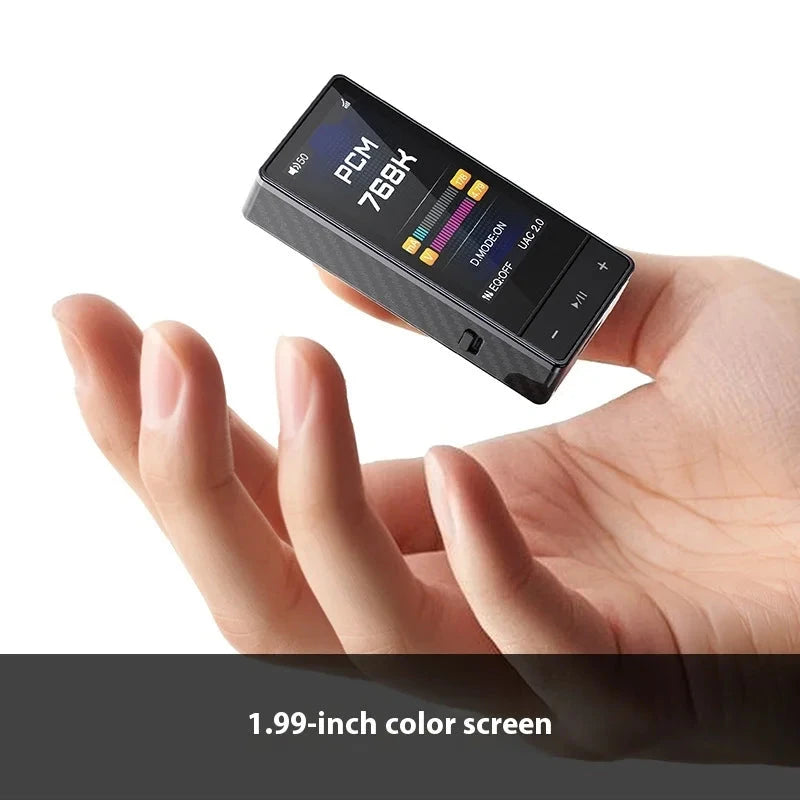

>1.99” Colourful Display Screen.
>Strong Desktop Mode with 900mW Per Channel Output.
>Independent Digital and Analog Circuit Boards.
>Supports 32Bit/768kHz PCM and Native DSD512 Decoding.
>Magnetic Leather Protective Case.
>High-Purity Single-Crystal Copper and Silver-Plated Copper Hybrid Connector Cable.
>UAC1.0 and UAC2.0 Dual Operating Modes.
>120-Level Volume Adjustment.
Technical Information:-
>DAC Chip: ES9027Pro Eight-Channel DAC.
>OPAMPs: OPA1692*2.
>Headphone Amplifier: 4*Ti INA1620.
>USB Processor: XU316.
>Output Power: Up to 900mW Per Channel(Desktop Mode).
>SNR: ≥124dB.
>THD+N: <0.0004%.
>Dimensions: 64.2×30.7x13mm.
>Weight: 33g(Carbon Fiber)/39g(Aluminum Alloy Body).
FiiO QX13 is a high-end portable DAC and Headphone amplifier designed for audiophiles who seek excellent performance. The DAC/AMP comes equipped with a desktop-grade 8-channel DAC chipset combined with an advanced amplification section. At the heart of the QX13, we have the flagship ES9027 Pro DAC chipset. It ensures excellent performance in processing High-Res audio signals. FiiO has featured six Op-AMPs for minimal crosstalk and top-tier dynamics with a strong output reaching up to 900mW per channel in desktop mode. Power up your portable audio scene with the all-new FiiO QX13 DAC/AMP.
Full High-Fidelity Processing with Desktop-Grade DAC Chipset:-

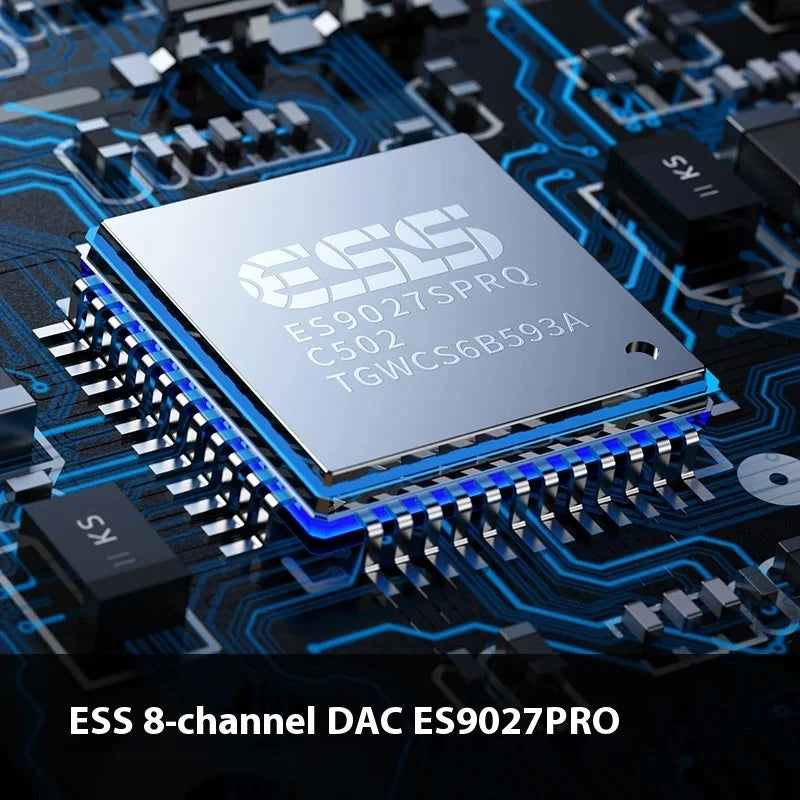

At the core of the FiiO QX13, we have a high-end desktop-grade DAC chipset. The device houses a flagship ES9027PRO 32-bit DAC chipset. It is an 8-channel DAC with a fully differential design that offers unmatched quality output, delivering best-in-class SNR, DNR, and THD+N performance. Experience outstanding clarity, exquisite details, and enjoy your music with the all-new FiiO QX13.
Advanced Amplification Section with Six TI OPAMPs:-
For high-power signal amplification and ultra-low distortion while doing so, FiiO has designed the QX13 with six high-performance TI(Texas Instruments) Operational Amplifiers. The device packs dual OPA1692 chips in the pre-amp stage and four INA1620 post-stage amplification. With this advanced amplification stage, FiiO QX13 produces a strong output thrust with ultra-low distortion and minimal crosstalk.
Patented Desktop Mode:-

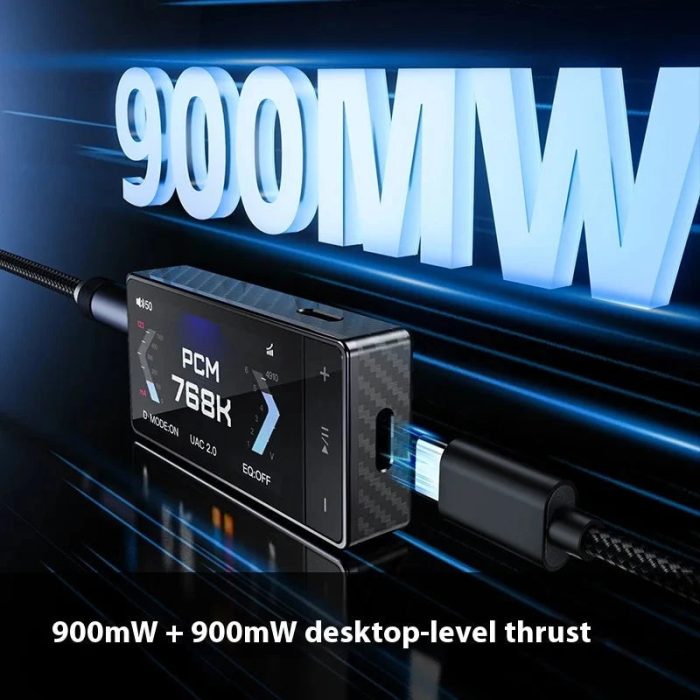

For enthusiasts who seek powerful output thrust to power demanding headphones, FiiO QX13 brings its patented desktop mode. The device produces a strong output of up to 900mW per channel through the balanced connection port. It has independent USB Type-C ports, one for data and one for dedicated power input.
Professional USB Performance:-
FiiO has equipped the QX13 with a 3rd-generation 16-core XMOS XU316 USB processor with ultra-low-noise femtosecond crystal oscillators. This setup provides exceptional USB performance supporting 32-bit/768kHz PCM and native DSD512 audio signals. Experience pure high-fidelity sound with the FiiO QX13 by your side.
Tune Your Output with 10-band PEQ:-

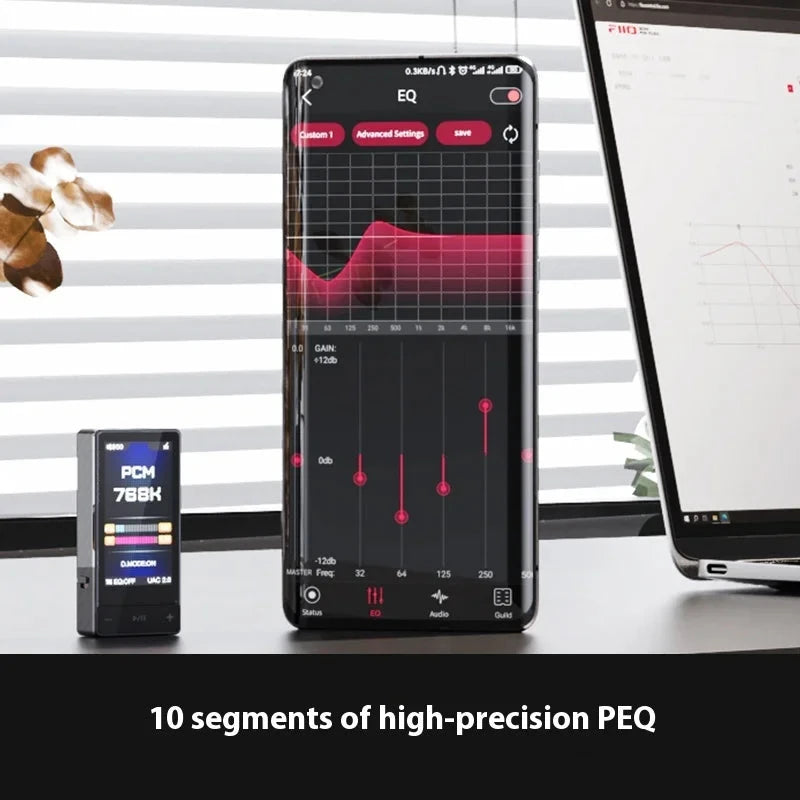

FiiO QX13 has full integration with the FiiO Control application available on smartphones. FiiO has also developed a web-based control software for accessing different functions on the device while using it on a computer. It supports fine-tuning the output using a 10-band PEQ function, and users can adjust the output to their liking. FiiO’s PEQ allows for gain adjustment at selective frequencies, Q-factor adjustment, etc.
Independent Digital and Analog Circuits:-
FiiO QX13 is designed with independent digital and analog circuit boards. They have shielded isolation, which effectively provides clean operation free from interferences. This separate circuit board design allows the QX13 to have smooth operation, delivering super-strong output consistently.
Outstanding Build Quality:-
FiiO QX13 features an outstanding build quality; the device is made up of up to 21 layers of stacked carbon fiber. It has a lightweight and durable build with a heat-resistant and interference-proof design. There are two colour choices, Carbon Fiber in Black Color and Titanium Gold in aluminium alloy material build. The QX13 also features a vivid 1.99” IPS display screen with durable Corning glass. It features multiple UI themes for easy personalisation.
