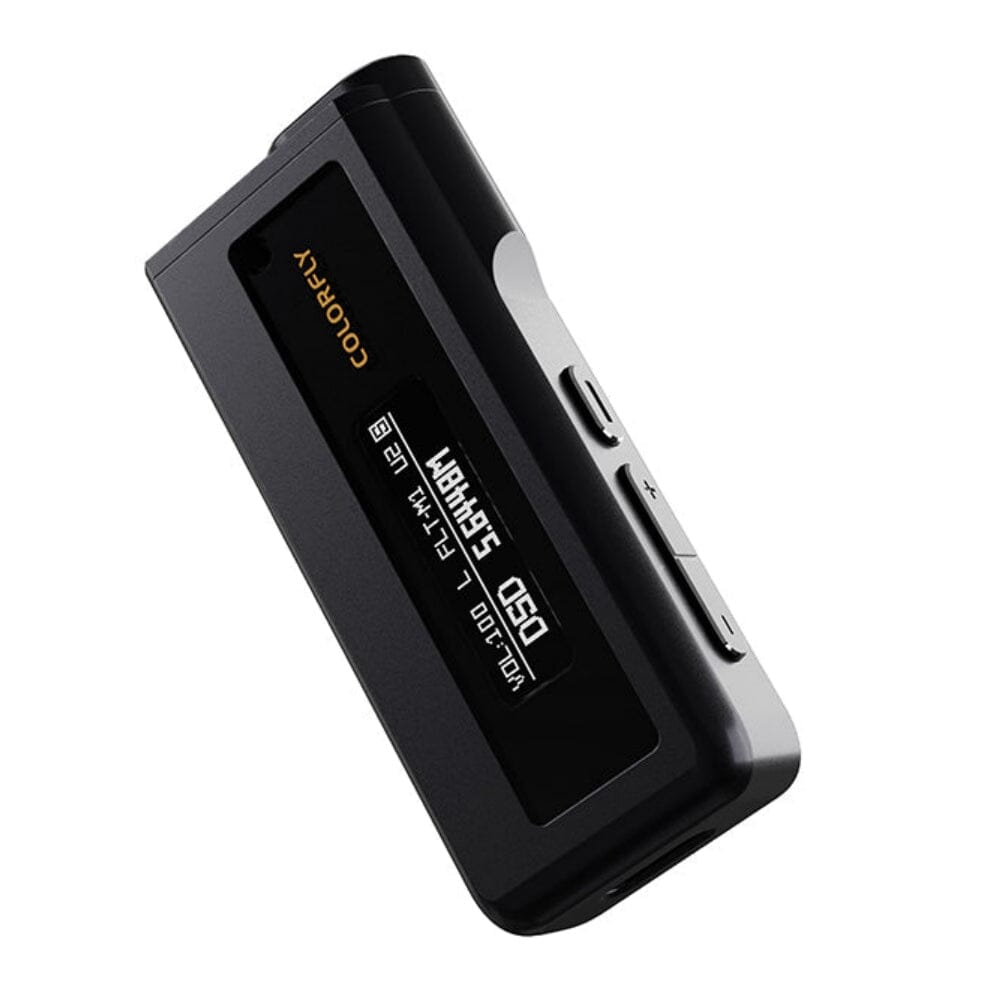

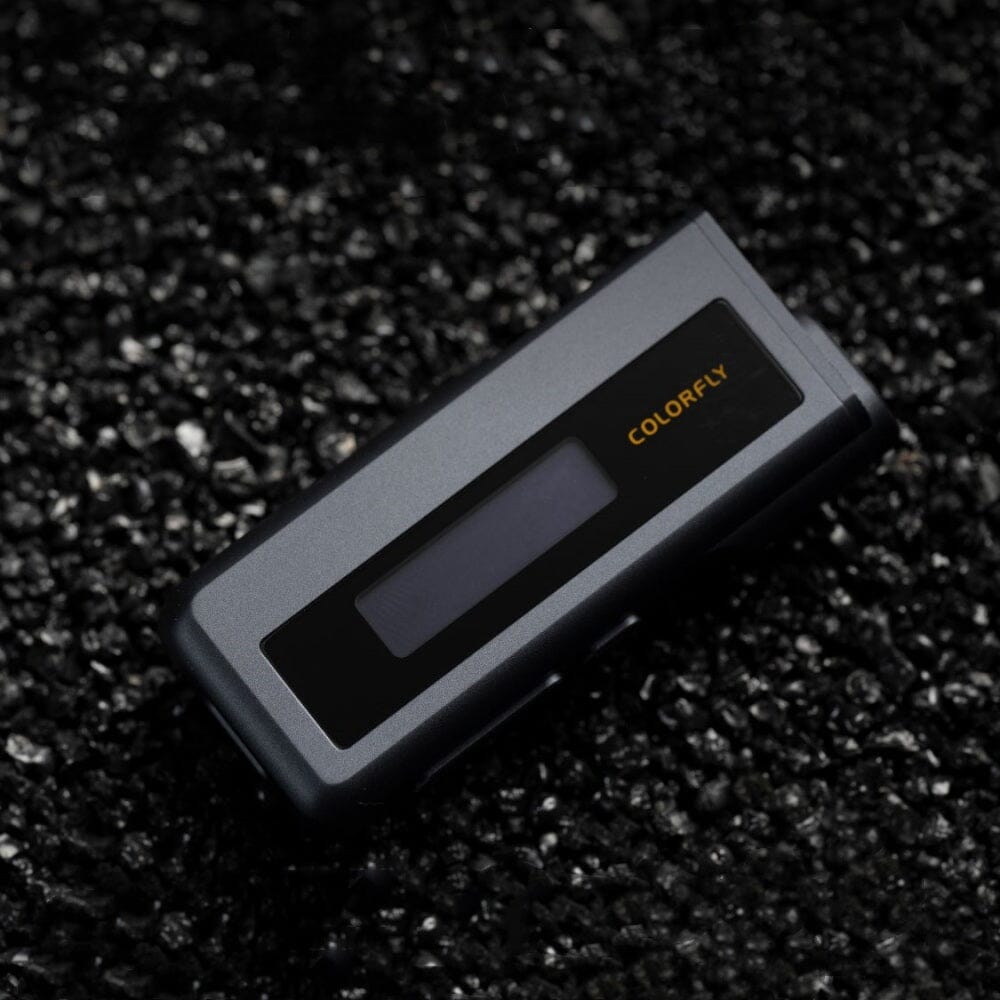

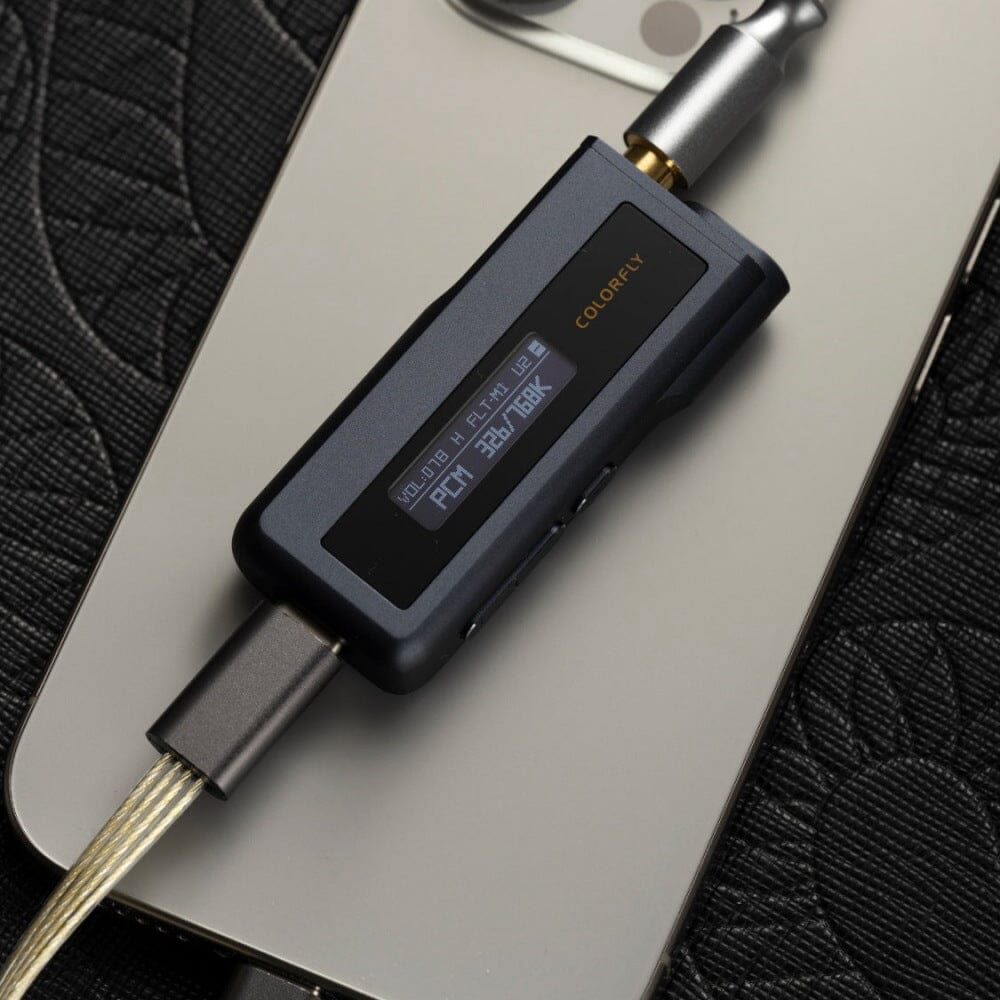

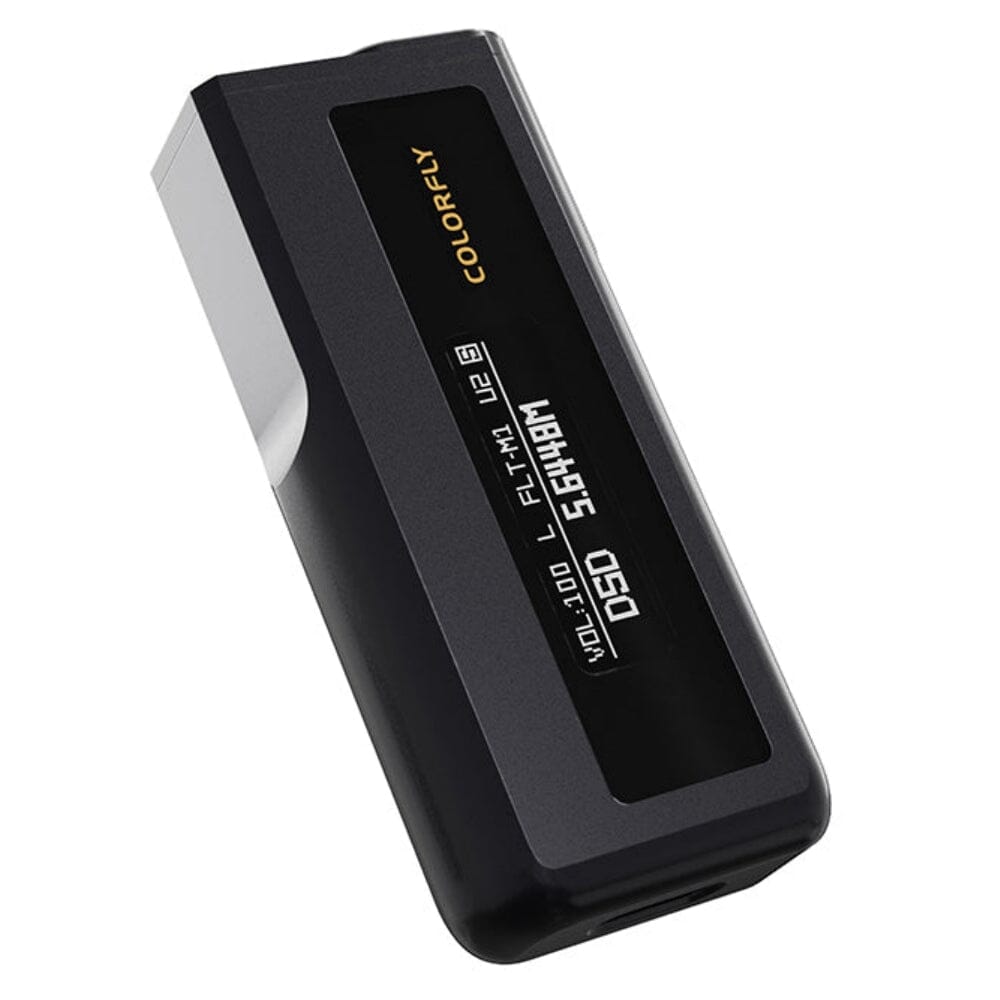

Colorfly CDA-M2 / CDA M2 Dual CS43198 Portable USB DAC/AMP

Features:-

>Premium Dual-DAC Arrangement(2xCS43198).

>PCM 32-bit/768kHz and Native DSD512 Decoding.

>Two-Level Gain Switching.

>Colorfly Premium Player Architecture.

>OLED Display Screen.

>3.5mm+4.4mm Dual Headphone Outputs.

>SPDIF Coaxial Output(via 3.5mm).

>Multiple Digital Filters.

>Premium Zinc-Alloy Electroplated Chassis.

>Upgraded Ribbon Design Detachable USB connector cable.

>Volume Memory Function.

>UAC1.0 and UAC2.0 Operating Modes.

Colorfly CDA M2 is a premium high-performance USB DAC/AMP designed with dual CS43198 flagship-level DAC chips. The DAC/AMP offers outstanding sonic performance with class-leading THD+N and SNR performance. Colorfly has designed the CDA M2 with its revolutionary U Audio Framework that they implement in flagship-level audio players. Colorfly CDA M2 comes with a solid Ribbon-style single-crystal copper silver-plated connector cable. Explore the endless possibilities of Hi-Res audio with the Colorfly CDA M2!!

Incredible Performance With High-Res Cirrus Logic Dual DAC Chipset:-

Colorfly has designed the latest CDA M2 with a premium dual-DAC arrangement. The CDA M2 houses two CS43198 Flagship DAC chips from Cirrus Logics. A powerful performance awaits you with the CDA M2, the DAc delivers impressive performance with ultra-low distortion and high SNR performance while decoding high-res audio signals.

True High-Resolution Music Player Framework:-

Colorfly CDA M2 is designed with a revolutionary Audio framework based on Colorfly’s flagship audio player architecture. The M2’s internal circuitry features a 6-layer gold-plated PCB, strategically isolating digital and analog circuits for optimal audio signal processing. Operating in ASYNC mode, it meticulously restructures data, enabling audio signal transmission to bypass USB clock and SRC interferences, unlocking true high-resolution audio performance.

Dual Headphone Output Ports:-

Colorfly CDA M2 features dual headphone output ports with independent XR2001 Operational Amplification chips. Each chip here independently powers the 3.5mm and 4.4mm output ports and provides the users with a strong and dynamic audio listening experience. The CDA M2 has an output power rating of 250mW per channel through the 4.4mm port and 125mW per channel through the 3.5mm port. Colorfly CDA M2 also supports SPDIF Coaxial output through the 3.5mm port.

Five Digital Filters:-

Enjoy a diverse sound experience with the Colorfly CDA M2. The portable USB DAC features five digital filter options that enable the users to customize the output to their liking. This includes Fast LL, Fast PC, Slow LL, Slow PC, and Non OS(Non Oversampling Filter).

Play With High-Res Audio With UAC1.0 Mode:-

Colorfly CDA M2 is compatible with different gaming consoles including Nintendo Switch and PS5 as it supports UAC1.0 operating mode. It can be used as a high-resolution decoder for gaming consoles bringing true-to-life audio experience with the consoles.
